SSS270CSB00000 - Exmark Spreader Sprayer (SN: 315000000 - 315999999) (2015) Steering Assembly Parts Diagram

Spreader Sprayer

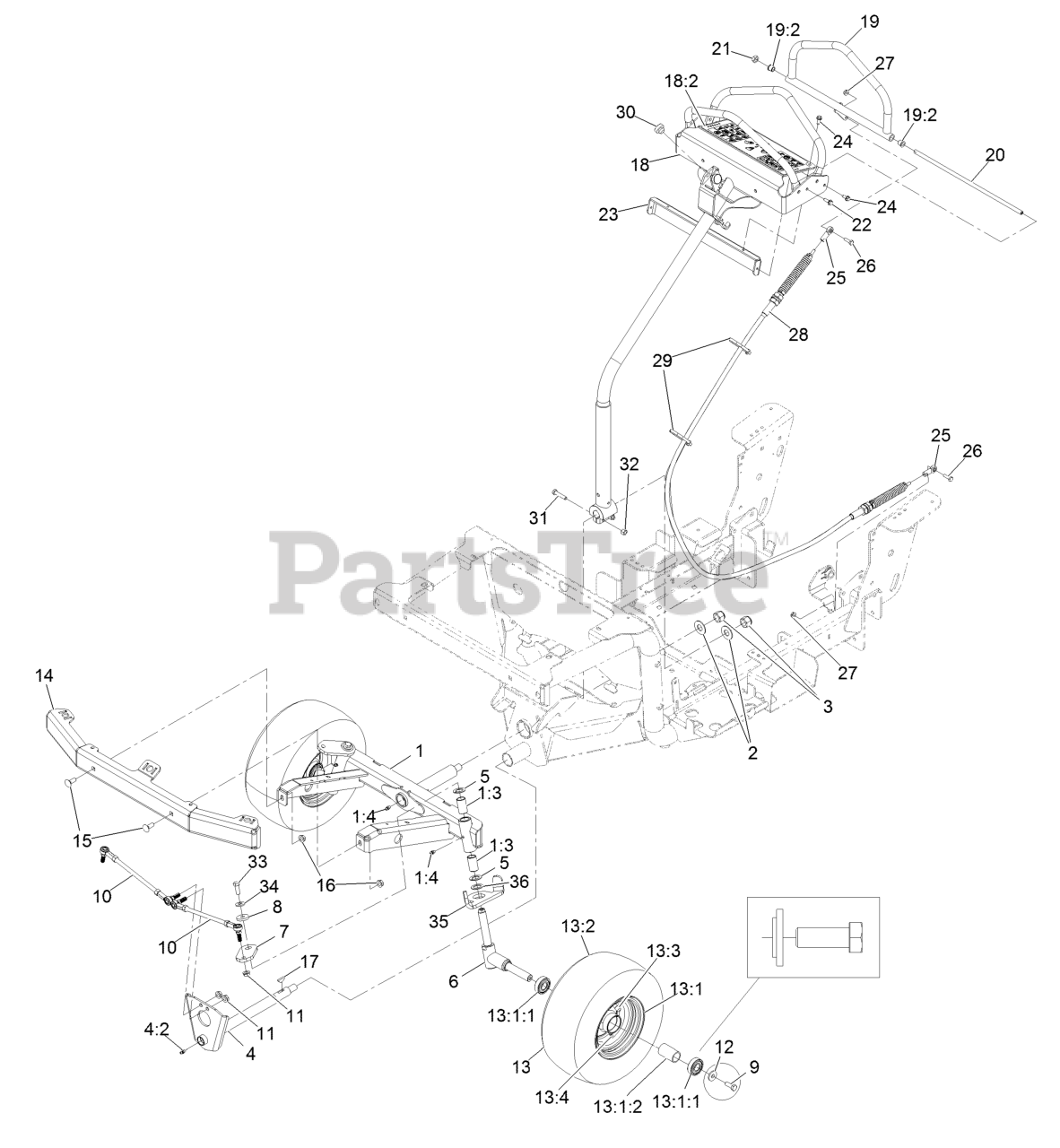

Steering Assembly Parts Diagram

  • Title

1

Exmark 126-0190

126-7080
(Superseded to 126-7080)

$

$

Not available

1:3

Exmark 126-6514

BEARING-SLEEVE

$8.99

$

In Stock, Qty 10

0

1:4

Exmark 126-1375

ZERK-GREASE

$5.49

$

In Stock, Qty 10

0

2

Exmark 126-0656

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

3

Exmark 126-3841

NUT-HEX, NI

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 126-1368

STEERING SHAFT ASM

$300.99

$

In Stock, only 1 left!

0

4:2

Exmark 126-1375

ZERK-GREASE

$5.49

$

In Stock, Qty 10

0

5

Exmark 126-1497

WASHER-THRUST

$6.99

$

In Stock, only 4 left!

0

6

Exmark 126-6490

FRONT AXLE ASM

$311.99

$

In Stock, Qty 10

0

7

Exmark 126-6487

ARM-STEERING

$37.99

$

Usually ships in 3-6 days

0

8

Exmark 126-3875

WASHER

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 126-4246

SCREW-HH

$2.99

$

In Stock, only 2 left!

0

10

Exmark 126-3699

126-7185
(Superseded to 126-7185)

$183.99

$

In Stock, Qty 7

0

11

Exmark 126-4803

NUT-HF

$5.49

$

In Stock, only 2 left!

0

12

Exmark 126-4332

SPACER

$10.99

$

Usually ships in 3-6 days

0

13

Exmark 126-6749

WHEEL AND TIRE ASM

$134.99

$

In Stock, only 1 left!

0

13:1

Exmark 126-6750

WHEEL ASM

$

$

Not available

13:1:1

Exmark 126-1508

BEARING

$20.99

$

Usually ships in 3-6 days

0

13:1:2

Exmark 126-6751

SPACER

$10.99

$

Usually ships in 3-6 days

0

13:2

Exmark 126-1509

TIRE

$85.99

$

In Stock, only 2 left!

0

13:3

Exmark 232-27

Stem-Valve

$

$

Not available

13:4

Exmark 302-62

FITTING-GREASE

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 116-9789

BUMPER-FRONT

$285.99

$

Usually ships in 3-6 days

0

15

Exmark 126-0980

SCREW-CARR

$1.99

$

In Stock, only 1 left!

0

16

Exmark 126-2233

135-2882
(Superseded to 135-2882)

$2.99

$

In Stock, Qty 8

0

17

Exmark 3257-7

KEY-WOODRUFF

$9.49

$

In Stock, only 3 left!

0

18

Exmark 126-1614

MOTION HANDLE ASM

$802.99

$

Usually ships in 3-6 days

0

18:2

Exmark 126-2612

DECAL-WARNING

$23.99

$

Usually ships in 3-6 days

0

19

Exmark 126-1598

MOTION HANDLE ASM

$129.99

$

Usually ships in 3-6 days

0

19:2

Exmark 103-9928

BEARING

$7.99

$

In Stock, Qty 11

0

20

Exmark 126-0496

SHAFT-PIVOT, SPEED CONTRO

$47.99

$

Usually ships in 3-6 days

0

21

Exmark 116-4198

SPACER-SHAFT, DRIVE LEVER

$6.49

$

Usually ships in 3-6 days

0

22

Exmark 117-8304

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

23

Exmark 126-1604-03

PANEL-REAR, STEERING

$36.99

$

Usually ships in 3-6 days

0

24

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

25

Exmark 2411-41

ROD END-BALL JOINT

$41.99

$

Usually ships in 3-6 days

0

26

Exmark 126-0498

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

27

Exmark 126-2231

135-2882
(Superseded to 135-2882)

$2.99

$

In Stock, Qty 8

0

28

Exmark 126-2169

CABLE-MOTION

$205.99

$

Usually ships in 3-6 days

0

29

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

30

Exmark 104-1412

BUMPER-RUBBER

$18.99

$

In Stock, only 3 left!

0

31

Exmark 3210-8

SCREW-HH

$4.49

$

In Stock, only 3 left!

0

32

Exmark 32152-5

NUT-HEX

$3.49

$

In Stock, only 2 left!

0

33

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

34

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

35

Exmark 126-6486

ARM-STOP, STEERING

$38.99

$

In Stock, only 1 left!

0

36

Exmark 126-6495

WASHER

$2.99

$

In Stock, Qty 11

0
