SSS270CSB00000 - Exmark Spreader Sprayer (SN: 315000000 - 315999999) (2015) Frame Assembly Parts Diagram

Spreader Sprayer

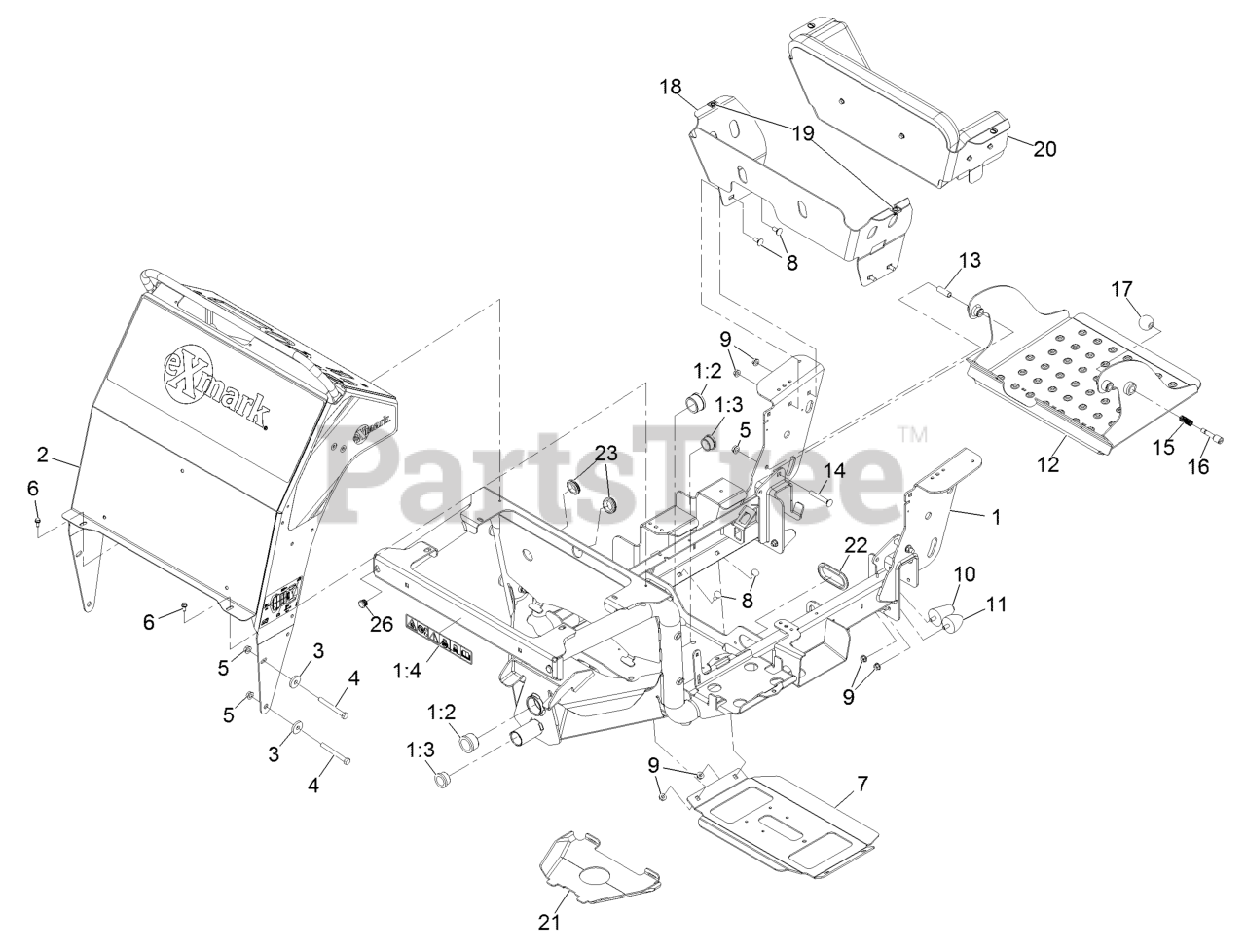

Frame Assembly Parts Diagram

  • Title

1

Exmark 126-0198

FRAME ASM

$3459.99

$

Usually ships in 3-6 days

0

1:2

Exmark 126-3008

BEARING-FLANGED

$20.99

$

Usually ships in 3-6 days

0

1:3

Exmark 126-3002

BEARING-FLANGED

$15.99

$

Usually ships in 3-6 days

0

1:4

Exmark 126-4994

DECAL-DOWN, TIE

$7.99

$

Usually ships in 3-6 days

0

2

Exmark 126-1402

CONTROL TOWER ASM
(Superseded to 126-6398)

$893.99

$

Usually ships in 3-6 days

0

3

Exmark 126-3875

WASHER

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 126-2661

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

5

Exmark 126-2233

135-2882
(Superseded to 135-2882)

$2.99

$

In Stock, Qty 8

0

6

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

7

Exmark 126-1415

GUARD-LOWER

$205.99

$

Usually ships in 3-6 days

0

8

Exmark 126-0695

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 126-2232

135-2881
(Superseded to 135-2881)

$1.99

$

In Stock, only 1 left!

0

10

Exmark 114-1925

BUMPER-RUBBER

$25.99

$

In Stock, only 2 left!

0

11

Exmark 114-1926

BUMPER-RUBBER

$27.99

$

In Stock, only 1 left!

0

12

Exmark 126-0435

OPERATOR PLATFORM ASM

$802.99

$

Usually ships in 3-6 days

0

13

Exmark 126-0434

BUSHING-PIVOT, PLATFORM

$14.99

$

Usually ships in 3-6 days

0

14

Exmark 126-0702

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

15

Exmark 114-5348

SPRING

$2.99

$

In Stock, Qty 20+

0

16

Exmark 119-8650

PIN-LATCH

$20.99

$

In Stock, only 1 left!

0

17

Exmark 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 8

0

18

Exmark 126-1234-03

MOUNT-PAD, KNEE

$103.99

$

Usually ships in 3-6 days

0

19

Exmark 119-1730

RECEPTACLE-CLIP, MINI

$2.49

$

Usually ships in 3-6 days

0

20

Knee Pad ASM

Note: Not serviced separately

$

$

Not available

21

Exmark 126-2567

SHIELD-DUST

$81.99

$

Usually ships in 3-6 days

0

22

Exmark 237-164

GROMMET

$19.99

$

Usually ships in 3-6 days

0

23

Exmark 240-5

GROMMET

$16.99

$

Usually ships in 3-6 days

0

26

Exmark 126-5147

PLUG-TUBE

$1.99

$

Usually ships in 3-6 days

0
