SSS270CSB00000 - Exmark Spreader Sprayer (SN: 315000000 - 315999999) (2015) Engine Assembly Parts Diagram

Spreader Sprayer

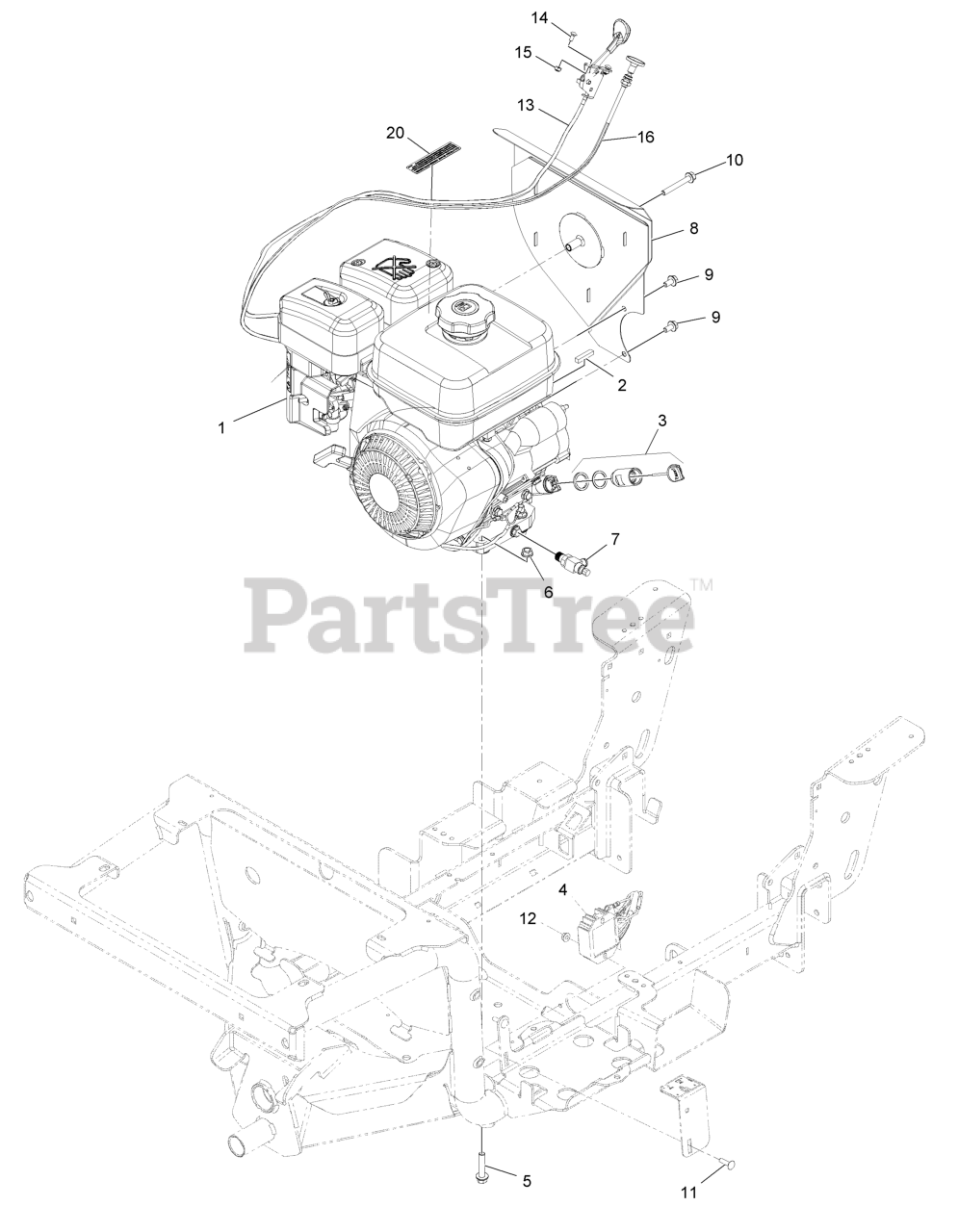

Engine Assembly Parts Diagram

  • Title

1

Engine-Subaru, Ex27

Note: Not serviced separately

$

$

Not available

2

Exmark 126-2532

KEY-CRANKSHAFT

$12.99

$

Usually ships in 3-6 days

0

3

Exmark 126-1432

EXTENDER-DIPSTICK

$81.99

$

Usually ships in 3-6 days

0

4

Exmark 126-4658

REGULATOR
(Superseded to 142-3392)

$512.99

$

Usually ships in 3-6 days

0

5

Exmark 126-2710

SCREW-HHF

$12.99

$

Usually ships in 3-6 days

0

6

Exmark 126-2233

135-2882
(Superseded to 135-2882)

$2.99

$

In Stock, Qty 8

0

7

Exmark 103-6602

VALVE-OIL DRAIN

$84.99

$

Usually ships in 3-6 days

0

8

Exmark 126-2426

HEAT SHIELD ASM

$176.99

$

Usually ships in 3-6 days

0

9

Exmark 117-1836

SCREW-HHF, LOCK

$10.99

$

Usually ships in 3-6 days

0

10

Exmark 33104-060

SCREW-HHF

$36.99

$

Usually ships in 3-6 days

0

11

Exmark 126-1455

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

12

Exmark 126-2231

135-2882
(Superseded to 135-2882)

$2.99

$

In Stock, Qty 8

0

13

Exmark 126-2240

CONTROL-THROTTLE

$43.99

$

Usually ships in 3-6 days

0

14

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

15

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Exmark 126-2285

CABLE-CHOKE, PUSH/PULL

$38.99

$

In Stock, only 1 left!

0

20

Exmark 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0
