SSS270CSB00000 - Exmark Spreader Sprayer (SN: 315000000 - 315999999) (2015) Control Valve Manifold Assembly (cont.) Parts Diagram

Spreader Sprayer

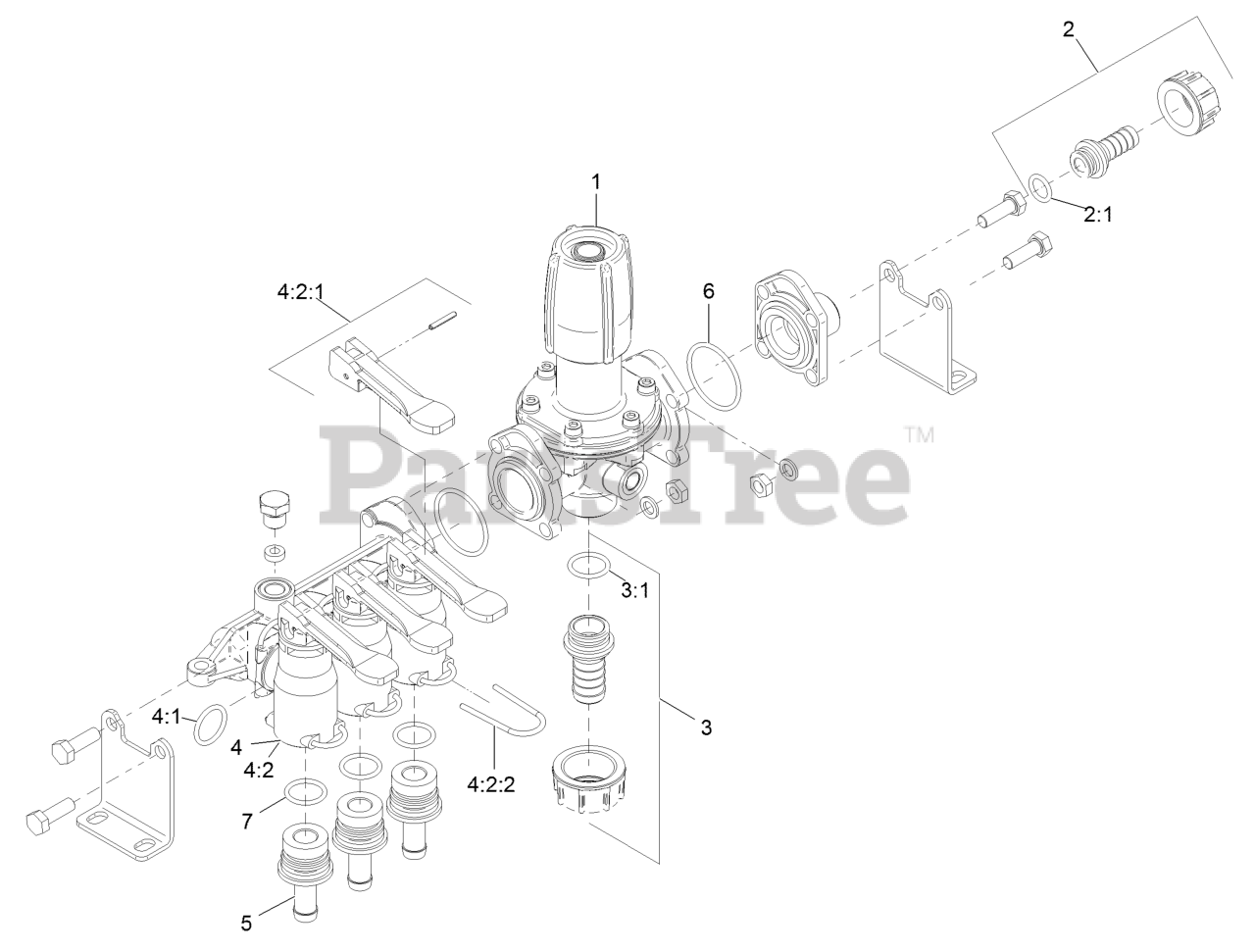

Control Valve Manifold Assembly (cont.) Parts Diagram

  • Title

1

Exmark 126-6303

REGULATOR

$352.99

$

Usually ships in 3-6 days

0

2

Exmark 126-6304

FLYNUT ASSEMBLY

$10.99

$

In Stock, Qty 5

0

2:1

Exmark 126-6322

O-RING KIT, REGULATOR INL

$50.99

$

Usually ships in 3-6 days

0

3

Exmark 126-6317

FLYNUT ASSEMBLY

$12.99

$

Usually ships in 3-6 days

0

3:1

Exmark 126-6323

O-RING KIT, REGULATOR OUT

$34.99

$

Usually ships in 3-6 days

0

4

Valve Assembly W/ O-Ring

Note: Not serviced separately

$

$

Not available

4:1

Exmark 126-6328

O-RING KIT, VALVE INLET

$53.99

$

Usually ships in 3-6 days

0

4:2

Exmark 126-6318

126-7641
(Superseded to 126-7641)

$81.99

$

In Stock, Qty 9

0

4:2:1

Exmark 126-6319

LEVER AND PIN ASSEMBLY
(Superseded to 126-7641)

$81.99

$

In Stock, Qty 9

0

4:2:2

Exmark 126-6332

WIREFORM RETAINER KIT

$40.99

$

Usually ships in 3-6 days

0

5

Exmark 126-6321

HOSE BARB

$23.99

$

In Stock, only 1 left!

0

6

Exmark 126-6326

O-RING KIT, REGULATOR FLA

$71.99

$

Usually ships in 3-6 days

0

7

Exmark 126-6327

O-RING KIT, VALVE OUTLET

$

$

Not available
