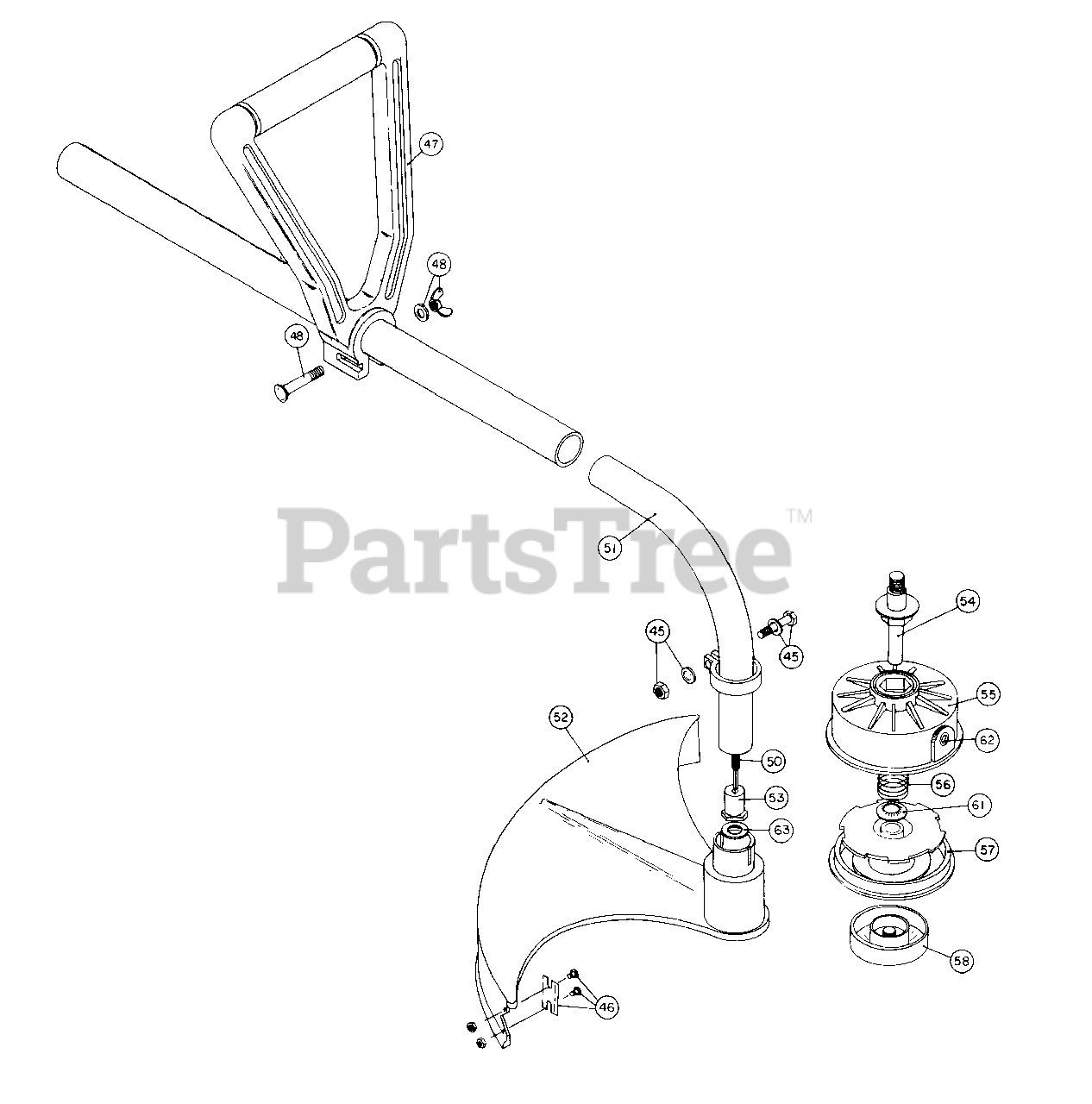

SSI - Lawn-Boy 16" String Trimmer (SN: 100000001 - 199999999) (1981) SSI TRIMMER PARTS Parts Diagram

16" String Trimmer

SSI TRIMMER PARTS Parts Diagram

  • Title

45

Lawn-Boy 682060

Lower clamp assembly
(Superseded to 153597)

$

$

Not available

46

Lawn-Boy 682061

Blade assembly

$23.99

$

In Stock, only 1 left!

0

47

Lawn-Boy 611003

D-handle

$

$

Not available

48

Lawn-Boy 682559

D-handle hardware assembly

$

$

Not available

49

Lawn-Boy 682561

Shoulder strap kit

Note: NOT SHOWN

$

$

Not available

50

Lawn-Boy 682064

Flexible drive shaft
(Superseded to 92-3236)

$

$

Not available

51

Lawn-Boy 682562

Drive shaft housing assembly

$

$

Not available

52

Lawn-Boy 682066

Guard and bearing housing assembly

$

$

Not available

53

Lawn-Boy 610303

Square drive nut

$

$

Not available

54

Lawn-Boy 682348

Spool shaft assembly

$

$

Not available

55

Lawn-Boy 682068

Outer spool assembly
(Superseded to 153647)

$

$

Not available

56

Lawn-Boy 610317

Spring

$12.99

$

Usually ships in 3-6 days

0

57

Lawn-Boy 610318

Inner reel

$41.99

$

In Stock, only 1 left!

0

58

Lawn-Boy 682069

Bump head knob assembly
(Superseded to 153066)

$

$

Not available

59

Lawn-Boy 610375

Monoflail cutting line 50 ft. (2 tills)

Note: NOT SHOWN

$

$

Not available

60

Lawn-Boy 610977

Monoflail cutting line 1 lb. (16 tills)

Note: NOT SHOWN

$

$

Not available

61

Lawn-Boy 610660

Retainer (10 pack)

$4.49

$

In Stock, Qty 19

0

62

Lawn-Boy 610682

Eyelet

$

$

Not available

63

Lawn-Boy 610996

Washer

$

$

Not available
