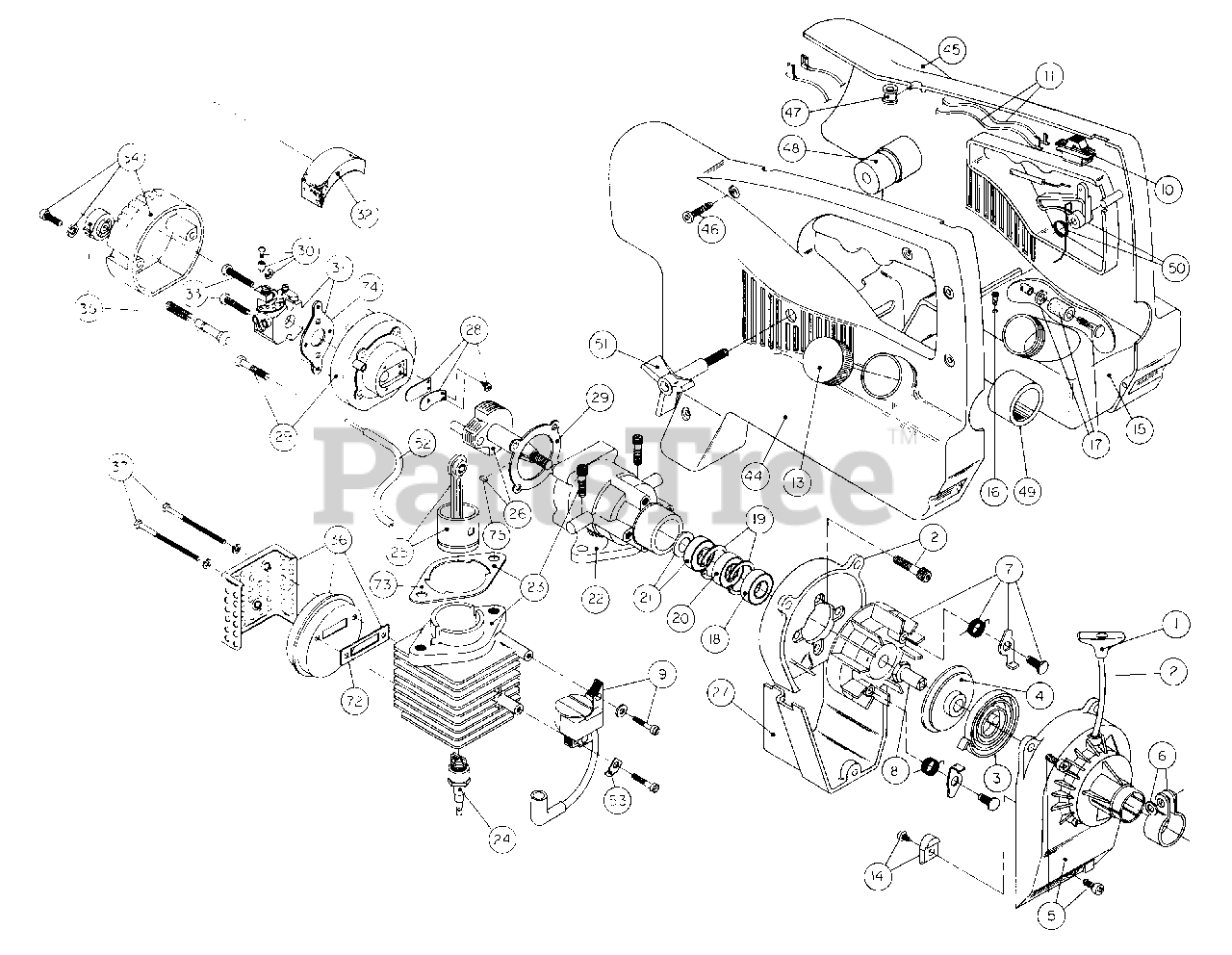

SSI - Lawn-Boy 16" String Trimmer (SN: 100000001 - 199999999) (1981) ENGINE MODELS SSI, SSII Parts Diagram

16" String Trimmer

ENGINE MODELS SSI, SSII Parts Diagram

  • Title

1

Lawn-Boy 610300

Pull handle
(Superseded to 181079)

$15.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 610301

Rope
(Superseded to 613103)

$

$

Not available

3

Lawn-Boy 610302

Recoil spring
(Superseded to 613102)

$23.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 682030

Recoil pulley assembly

$

$

Not available

5

Lawn-Boy 682540

Starter housing assembly

$

$

Not available

6

Lawn-Boy 682541

Upper clamp assembly

$

$

Not available

7

Lawn-Boy 682307

Flywheel assembly
(Superseded to 180929)

$

$

Not available

8

Lawn-Boy 610303

Square drive nut

$

$

Not available

9

Lawn-Boy 682498

Module assembly
(Superseded to 181937)

$

$

Not available

10

Lawn-Boy 682542

Switch assembly

$

$

Not available

11

Lawn-Boy 682543

Wire leads assembly

$

$

Not available

12

Lawn-Boy 682544

Shroud assembly

$

$

Not available

13

Lawn-Boy 682545

Fuel cap assembly

$

$

Not available

14

Lawn-Boy 682546

Pulley retainer assembly
(Superseded to 153644)

$

$

Not available

15

Lawn-Boy 611000

Fuel tank

$

$

Not available

16

Lawn-Boy 611058

Fuel tank vent

$

$

Not available

17

Lawn-Boy 682547

Fuel line assembly

$

$

Not available

18

Lawn-Boy 610308

Outer bearing

$

$

Not available

19

Lawn-Boy 682040

Snap ring assembly

$

$

Not available

20

Lawn-Boy 610309

Seal

$

$

Not available

21

Lawn-Boy 682041

Inner bearing assembly

$

$

Not available

22

Lawn-Boy 611059

Crankcase

$

$

Not available

23

Lawn-Boy 682548

Cylinder assembly

$

$

Not available

24

Lawn-Boy 610311

Spark plug

$3.49

$

In Stock, only 3 left!

0

25

Lawn-Boy 682502

Piston & rod assembly

$

$

Not available

26

Lawn-Boy 682549

Power shaft assembly

$

$

Not available

27

Lawn-Boy 611060

Shroud extension

$

$

Not available

28

Lawn-Boy 682046

Reed assembly
(Superseded to 684451)

$19.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 682550

Carburetor mount assembly

$

$

Not available

30

Lawn-Boy 682048

Throttle adjustment assembly

$

$

Not available

31

Lawn-Boy 682310

Carburetor assembly (Walbro)
(Superseded to 181675)

$

$

Not available

Lawn-Boy 682551

Carburetor assembly (Tillotson)
(Superseded to 181675)

$

$

Not available

32

Lawn-Boy 610312

Air cleaner filter

$

$

Not available

33

Lawn-Boy 682505

Carburetor mounting screw assembly

$

$

Not available

34

Lawn-Boy 682312

Air cleaner cover assembly
(Superseded to 683264)

$

$

Not available

35

Lawn-Boy 682313

Choke knob assembly
(Superseded to 682052)

$

$

Not available

36

Lawn-Boy 682311

Muffler assembly
(Superseded to 683273)

$

$

Not available

37

Lawn-Boy 682054

Muffler mounting bolt assembly

$

$

Not available

38

Lawn-Boy 682055

Engine gasket kit

Note: NOT SHOWN

$

$

Not available

39

Lawn-Boy 682552

Engine hardware kit

Note: NOT SHOWN

$

$

Not available

40

Lawn-Boy 682057

EOM carburetor repair kit (Walbro)

Note: NOT SHOWN

$

$

Not available

41

Lawn-Boy 682058

Gasket-Diaphragm repair kit (Walbro)

Note: NOT SHOWN

$

$

Not available

42

Lawn-Boy 682507

Piston ring set
(Superseded to 180530)

Note: NOT SHOWN

$

$

Not available

43

Lawn-Boy 682533

Carburetor repair kit (Tillotson)

Note: NOT SHOWN

$

$

Currently unavailable

44

Lawn-Boy 611001

Right side cowl

$

$

Not available

45

Lawn-Boy 611002

Left side cowl

$

$

Not available

46

Lawn-Boy 682554

Cowl screw assembly

$

$

Not available

47

Lawn-Boy 611061

Rope guide

$

$

Not available

48

Lawn-Boy 682555

Engine mount assembly

$

$

Not available

49

Lawn-Boy 611062

Grommet tube

$

$

Not available

50

Lawn-Boy 611004

Throttle trigger assembly

$

$

Not available

51

Lawn-Boy 611005

Head adjustment knob

$

$

Not available

52

Lawn-Boy 682556

Throttle wire assembly

$

$

Not available

53

Lawn-Boy 611063

Ground tab

$

$

Not available

71

Lawn-Boy 682557

Short block assembly (Items 18-26)

Note: NOT SHOWN

$

$

Not available

72

Lawn-Boy 610672

Exhaust gasket (10 pack)
(Superseded to 180980)

$7.99

$

In Stock, only 1 left!

0

73

Lawn-Boy 610674

Cylinder gasket (10 pack)

$

$

Not available

74

Lawn-Boy 610675

Carburetor gasket (10 pack)

$6.99

$

In Stock, only 1 left!

0

75

Lawn-Boy 610676

Flywheel key (10 pack)

$

$

Not available

29

Lawn-Boy 610673

Carburetor mount gasket (10 pack)

Note: NOT SHOWN

$

$

Not available

76

Lawn-Boy 682558

Crankcase service assembly (items 18-22, 26)

Note: NOT SHOWN Parts Nos. reference are for serial No. 0080001 thru serial No. 7000000.

$

$

Not available
