SSA-58V (307340001) - Echo Straight Shaft Trimmer Attachment, Revision 03 (2018-03) General Assembly Parts Diagram

Straight Shaft Trimmer Attachment, Revision 03

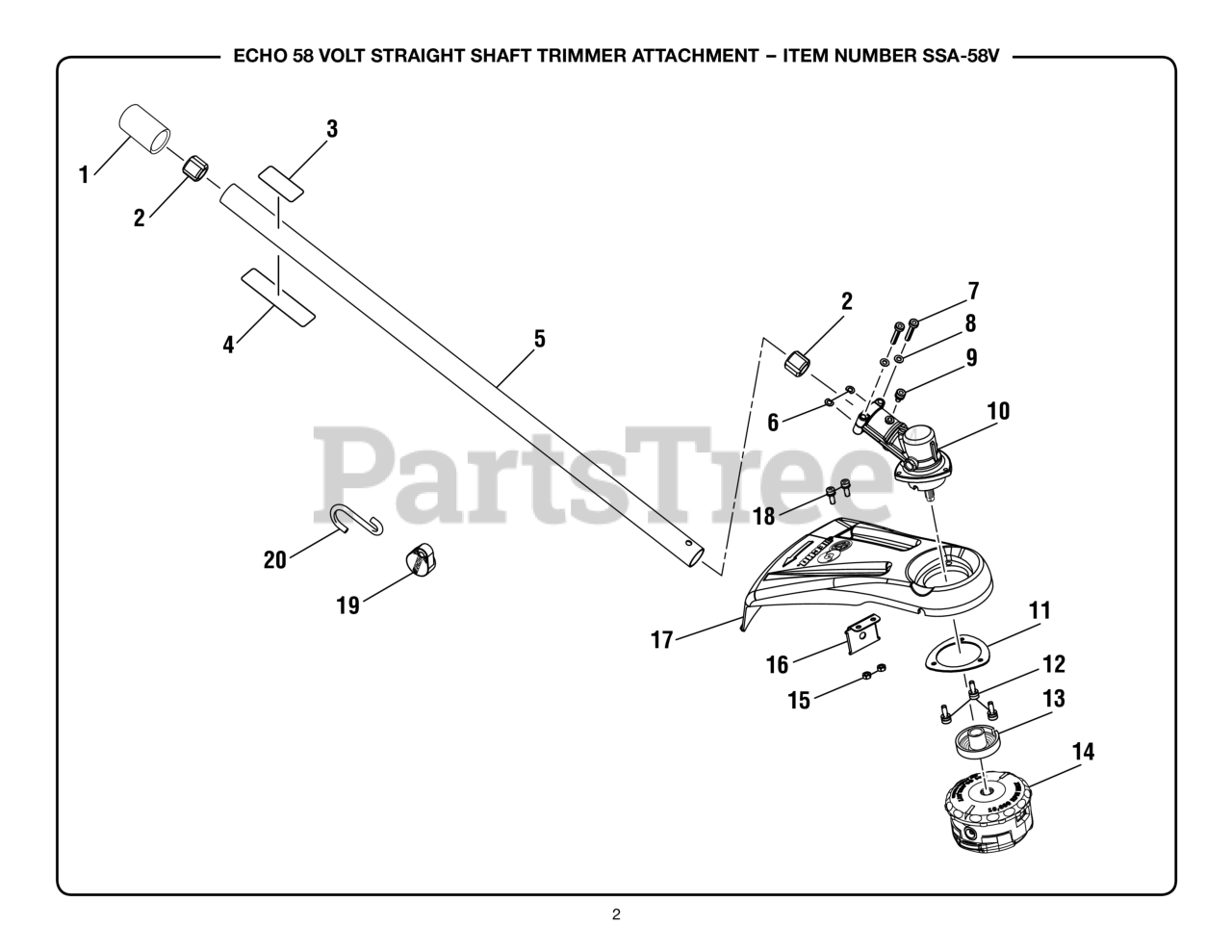

General Assembly Parts Diagram

  • Title

1

Echo 518366001

End Cap

$1.49

$

Usually ships in 2-4 days

0

2

Echo 563602001

Rubber Spacer

$1.49

$

In Stock, Qty 5

0

3

Echo 940851010

Warning Icon Label

$1.49

$

Usually ships in 2-4 days

0

4

Echo 941588075

Data Label

$1.49

$

Usually ships in 2-4 days

0

5

Echo 307841001

Lower Boom Assembly

$24.99

$

Usually ships in 2-4 days

0

6

Echo 636270001

Washer (Special)

$1.49

$

Usually ships in 2-4 days

0

7

Echo 662174001

Screw (M5 x 26 mm, T25 Torx Pan Hd.)

$1.49

$

In Stock, only 2 left!

0

8

Echo 636603001

Washer (ID5.2 x OD10 x 0.8t)

$1.49

$

Usually ships in 2-4 days

0

9

Echo 662171001

Screw w/Washers (M5 x 7 mm, T25 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

10

Echo 220362002

Gear Box

$50.99

$

Usually ships in 2-4 days

0

11

Echo 636192001

Fixed Plate

$1.49

$

Usually ships in 2-4 days

0

12

Echo 662158001

Screw w/Washers (M5 x 12.5 mm, T25 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

13

Echo 642394001

Flanged Washer

$2.99

$

In Stock, only 2 left!

0

14

Echo 307342002

Stringhead Assembly
(Superseded to 99944200907)

$41.99

$

In Stock, only 1 left!

0

15

Echo 662157001

Hex Nut (M5)

$1.49

$

In Stock, only 2 left!

0

16

Echo 636193001

Line Cutting Blade

$1.49

$

Usually ships in 2-4 days

0

17

Echo 528232001

Grass Deflector

$4.49

$

Usually ships in 2-4 days

0

18

Echo 662156001

Screw w/Washers (M5 x 12 mm, Pan Hd.)

$1.49

$

In Stock, only 2 left!

0

19

Echo 528448001

Boom Cap

$1.49

$

Usually ships in 2-4 days

0

20

Echo 636290001

HANGER

$1.49

$

Usually ships in 2-4 days

0

Echo 321080060

0.080 in. Silentwist(R) (1/2 lb. Donut, Not Included)

$14.99

$

Usually ships in 2-4 days

0

Echo 321095060

0.095 in. Silentwist(R) (1/2 lb. Donut, Not Included)

$14.99

$

Usually ships in 2-4 days

0

Echo 991000235

Operator's Manual (ECHO #99922205223)

$

$

Currently unavailable
