SS RT5 A - Electrolux/AYP Tiller (1996) MAINFRAME, RIGHT Parts Diagram

Tiller

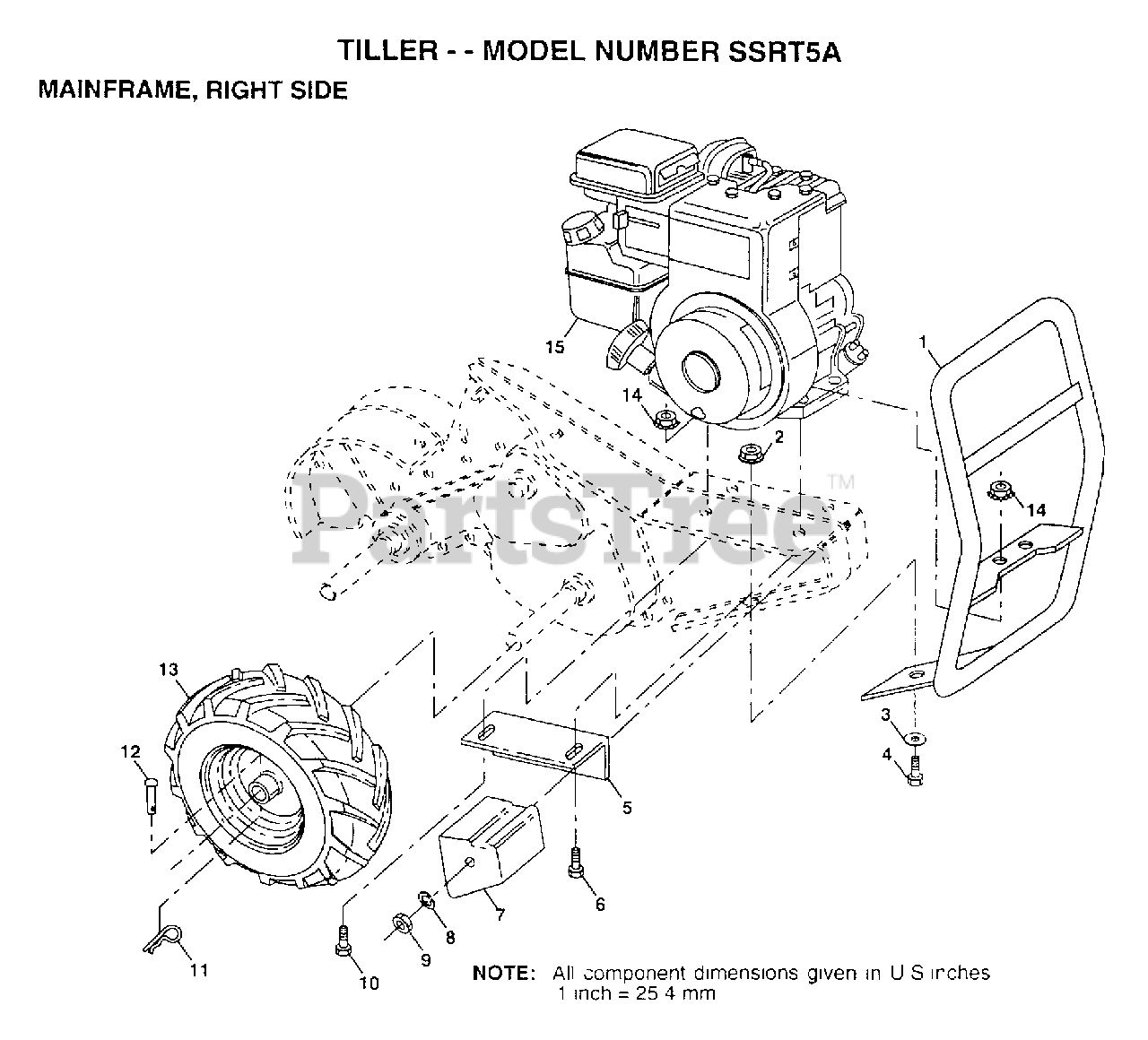

MAINFRAME, RIGHT Parts Diagram

  • Title
1

Electrolux/AYP 146934

BUMPER.ASM.TILL

$45.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 73970500

LOCKNUT TI
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

4

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 102332

BRKT REINFORCEMENT

$

$

Not available

6

Electrolux/AYP 74760532

BOLT
(Superseded to 874760532)

$2.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 102173X

COUNTERWEIGHT CRT
(Superseded to 532102173)

$42.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

10

Electrolux/AYP 74760524

BOLT.HEX.5/16-1.5

$2.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

12

Electrolux/AYP 126875

RIVET DRILLED

$

$

Not available

13

Electrolux/AYP 5015J

TIRE TI
(Superseded to 532005015)

$145.99

$

In Stock, only 2 left!

0

$

$

Not available

Electrolux/AYP 795R

SUB= 65139

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

15

REFER TO IMAGE

$

$

Not available
