SS 922 EX (1696516-01) - Simplicity 22" Snow Thrower, 9hp Chute Rotation Group - Remote Parts Diagram

22" Snow Thrower, 9hp

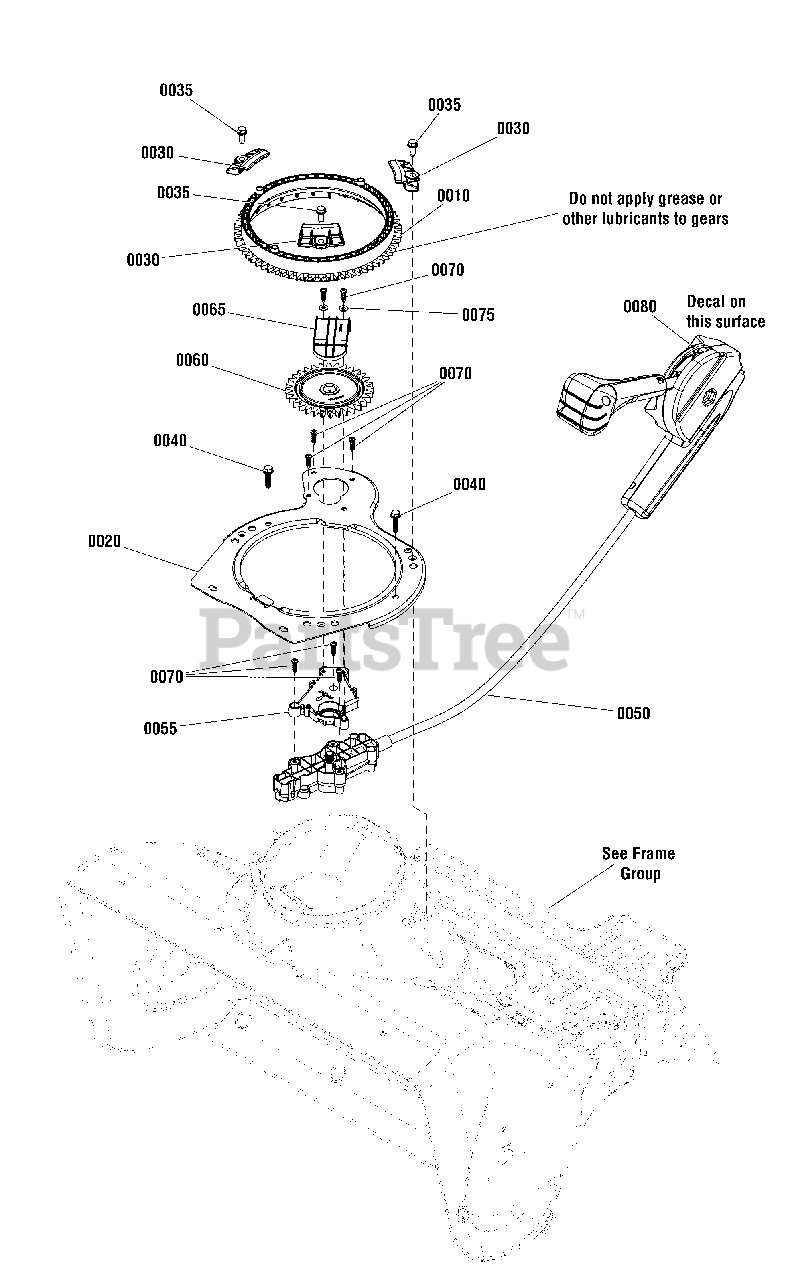

Chute Rotation Group - Remote Parts Diagram

  • Title
0010

Simplicity 706509

GEAR, Chute Rotation

$38.99

$

Usually ships in 2-12 days

0

0020

Simplicity 708695

PLATE, Chute Rotation

$60.99

$

Usually ships in 2-12 days

0

0030

Simplicity 706511

RETAINER, Chute Gear

$5.49

$

Usually ships in 2-12 days

0

0035

Simplicity 703054

SCREW, Hex Washer Head, Thread Roll, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0040

Simplicity 706516

SCREW, High-Low, 1/4-15 x 1.00

$3.49

$

In Stock, only 2 left!

0

0050

Simplicity 1739754YP

CHUTE ROTATION ASSEMBLY, Remote

$207.99

$

Usually ships in 2-12 days

0

0055

Simplicity 708696

SPACER, Chute Rotation, Remote

$6.49

$

Usually ships in 2-12 days

0

0060

Simplicity 708697

GEAR ASSEMBLY, Quick Chute

$12.99

$

Usually ships in 2-12 days

0

0065

Simplicity 708698

HOLD DOWN, Gear

$8.49

$

Usually ships in 2-12 days

0

0070

Simplicity 704209

SCREW, #8-16X5/8, Torx, RH Twin Helix, ZC/CL

$3.99

$

Usually ships in 2-12 days

0

0075

Simplicity 708699

WASHER, Flat 7/16

$3.49

$

Usually ships in 2-12 days

0

0080

Simplicity 1739976YP

DECAL, Chute Rotation

$11.99

$

Usually ships in 2-12 days

0
