SS 5220E (1695470) - Snapper 22" Snow Thrower, 5hp (2009) Wheel Assembly Group Parts Diagram

22" Snow Thrower, 5hp

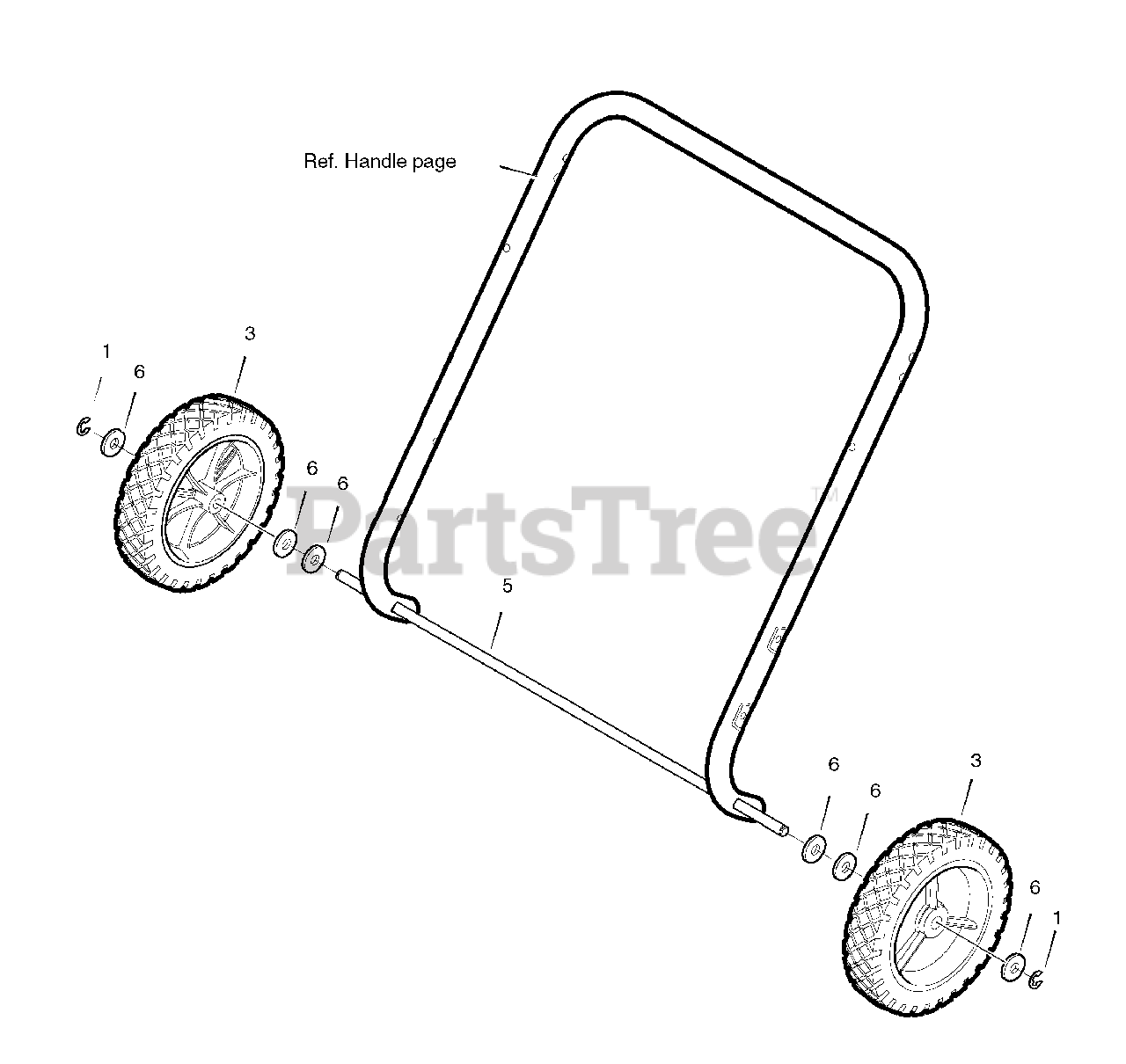

Wheel Assembly Group Parts Diagram

  • Title

1

Snapper 724559

RETAINER, E-Ring
(Superseded to 577598MA)

$4.49

$

In Stock, only 1 left!

0

3

Snapper 725603

WHEEL & TIRE, 7" x 1-1/2"
(Superseded to 760714MA)

$

$

Not available

5

Snapper 722328

ROD, Axle
(Superseded to 1501879MA)

$24.99

$

Usually ships in 2-12 days

0

6

Snapper 724750

WASHER
(Superseded to 583409MA)

$4.49

$

Usually ships in 2-12 days

0
