SS 5220E (1695470) - Snapper 22" Snow Thrower, 5hp (2009) Handle Assembly Group Parts Diagram

22" Snow Thrower, 5hp

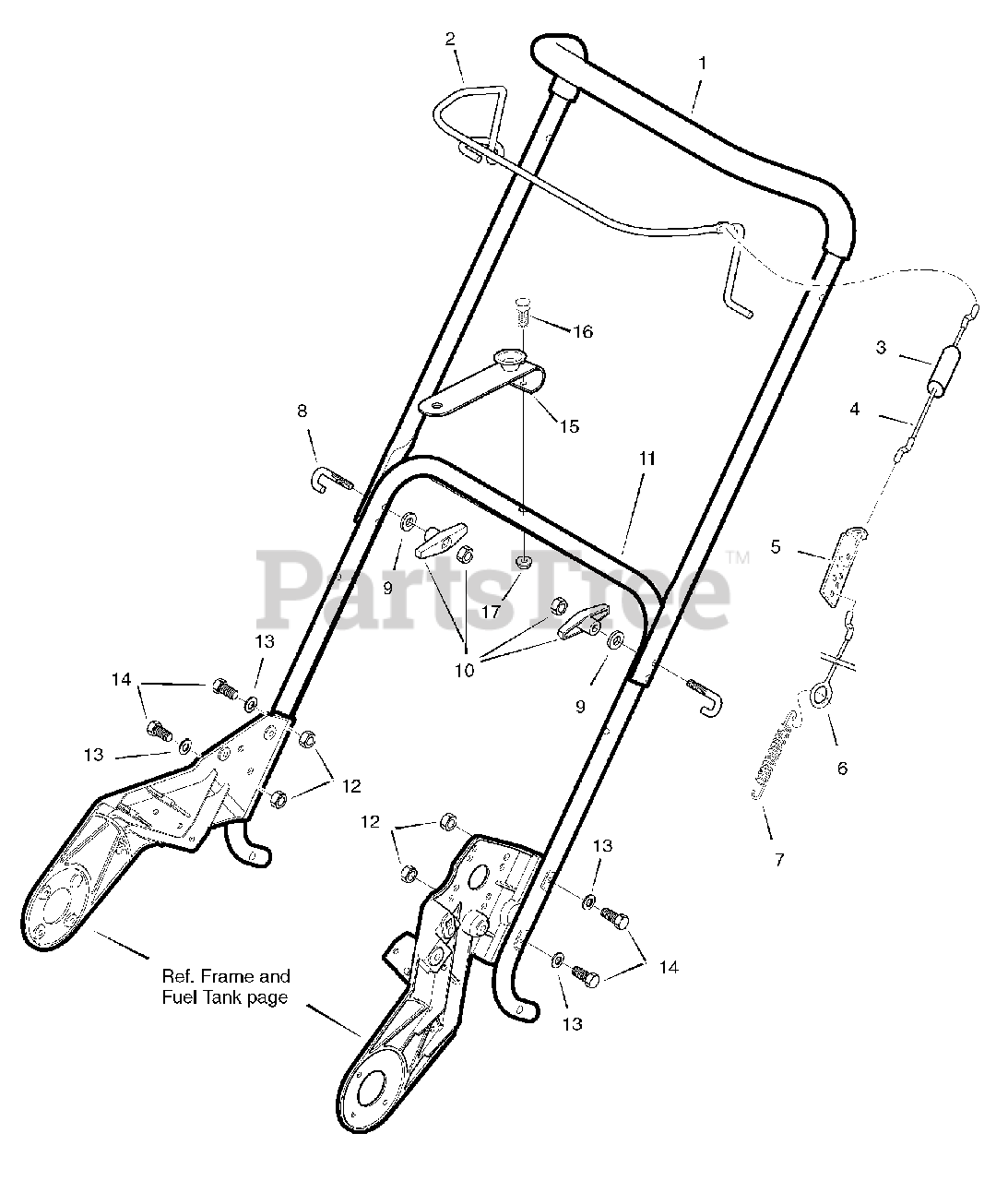

Handle Assembly Group Parts Diagram

  • Title

1

Snapper 722348

HANDLE & GRIP ASSEMBLY
(Superseded to 1502001MA)

$151.99

$

Usually ships in 2-12 days

0

2

Snapper 1742021H

CONTROL, Bail
(Superseded to 1742021HYP)

$50.99

$

Usually ships in 2-12 days

0

3

Snapper 723154

BOOT, Clutch Spring
(Superseded to 308146MA)

$6.49

$

In Stock, only 2 left!

0

4

Snapper 722366

CABLE, Upper Control
(Superseded to 1502042MA)

$14.99

$

Usually ships in 2-12 days

0

5

Snapper 723259

BRACKET, Control Adjust
(Superseded to 313441MA)

$

$

Not available

6

Snapper 723261

CABLE, Lower Control
(Superseded to 313448MA)

$10.99

$

Usually ships in 2-12 days

0

7

Snapper 723263

SPRING
(Superseded to 313471MA)

$4.99

$

In Stock, only 1 left!

0

8

Snapper 722326

Bolt, "U"
(Superseded to 1501877MA)

$6.49

$

Usually ships in 2-12 days

0

9

Snapper 723239

WASHER
(Superseded to 311936MA)

$7.49

$

Usually ships in 2-12 days

0

10

Snapper 1740436

KNOB, "T"
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

11

Snapper 1741982H

HANDLE, Lower
(Superseded to 1741982HYP)

$87.99

$

Usually ships in 2-12 days

0

12

Snapper 725429

NUT
(Superseded to 1501216MA)

$4.99

$

In Stock, Qty 20+

0

13

Snapper 725330

WASHER
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

14

Snapper 723280

SCREW, 1/4 - 20 x 1-1/4
(Superseded to 313674MA)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 1733377A

BRACKET & CUP ASMY-CHUTE -BLACK
(Superseded to 1733377ASM)

$17.99

$

Usually ships in 2-12 days

0

16

Snapper 1740344

BOLT, Hex-Head, 1/4-20 X 1.50
(Superseded to 1740344SM)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 1740345

NUT, Hex-Head, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
