SS 5220E (1695470) - Snapper 22" Snow Thrower, 5hp (2009) Decals Group Parts Diagram

22" Snow Thrower, 5hp

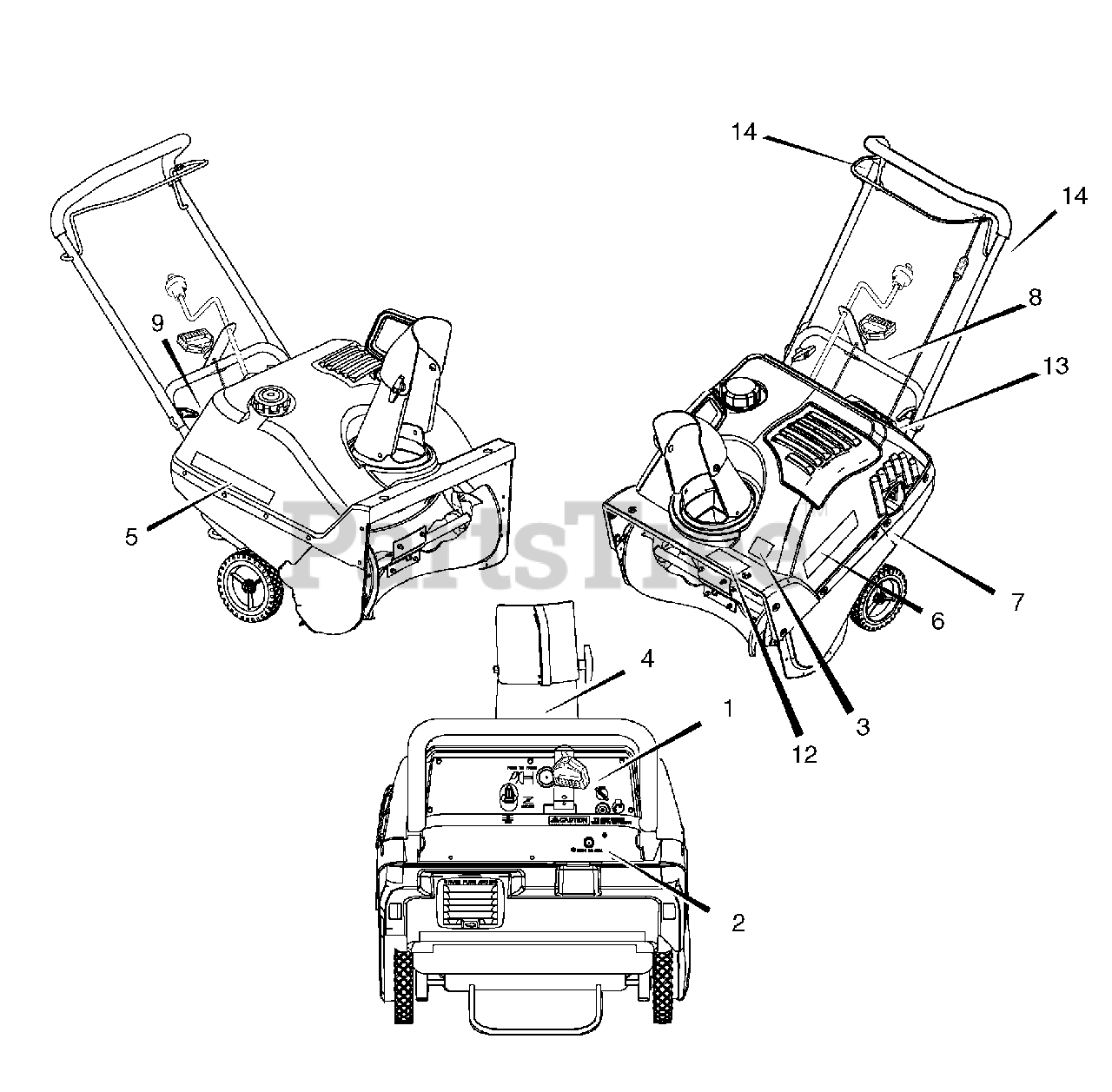

Decals Group Parts Diagram

  • Title

1

Snapper 1740428

DECAL, Control Panel Electric Start

Note: (Domestic Only)

$

$

Currently unavailable

1

Snapper 1740400

DECAL, Control Panel Electric Start

Note: (CE/Export Only)

$

$

Currently unavailable

2

Snapper 729693

DECAL, Electric Start

$

$

Currently unavailable

3

Snapper 725257

DECAL, Danger Auger

$

$

Currently unavailable

4

Snapper 724267

DECAL, Danger Chute
(Superseded to 48X5642MA)

$6.99

$

Usually ships in 2-12 days

0

5

Snapper 1740367

DECAL, 522 Snapper R.H.
(Superseded to 1740367YP)

$11.99

$

Usually ships in 2-12 days

0

6

Snapper 1740368

DECAL, 522 Snapper L.H.
(Superseded to 1740368YP)

$6.99

$

Usually ships in 2-12 days

0

7

Snapper 725241

DECAL, Hot Muffler
(Superseded to 69880MA)

$13.99

$

Usually ships in 2-12 days

0

8

Snapper 727378

DECAL, Auger Control
(Superseded to 761150MA)

$12.99

$

Usually ships in 2-12 days

0

9

Snapper 1740422

DECAL, Choke

$

$

Currently unavailable

12

Snapper 1740365

DECAL, 522E
(Superseded to 1740365SM)

$9.99

$

Usually ships in 2-12 days

0

13

Snapper 1742320

DECAL, Warning, Access Cover
(Superseded to 1742320MA)

$9.49

$

Usually ships in 2-12 days

0

14

Snapper 1741994

DECAL, Handle protector

$

$

Currently unavailable

15

Snapper 1742179

MANUAL, Operator's

$

$

Currently unavailable
