SS 5201R (85663) - Snapper 20" Snow Thrower, 5hp Decal Group Parts Diagram

20" Snow Thrower, 5hp

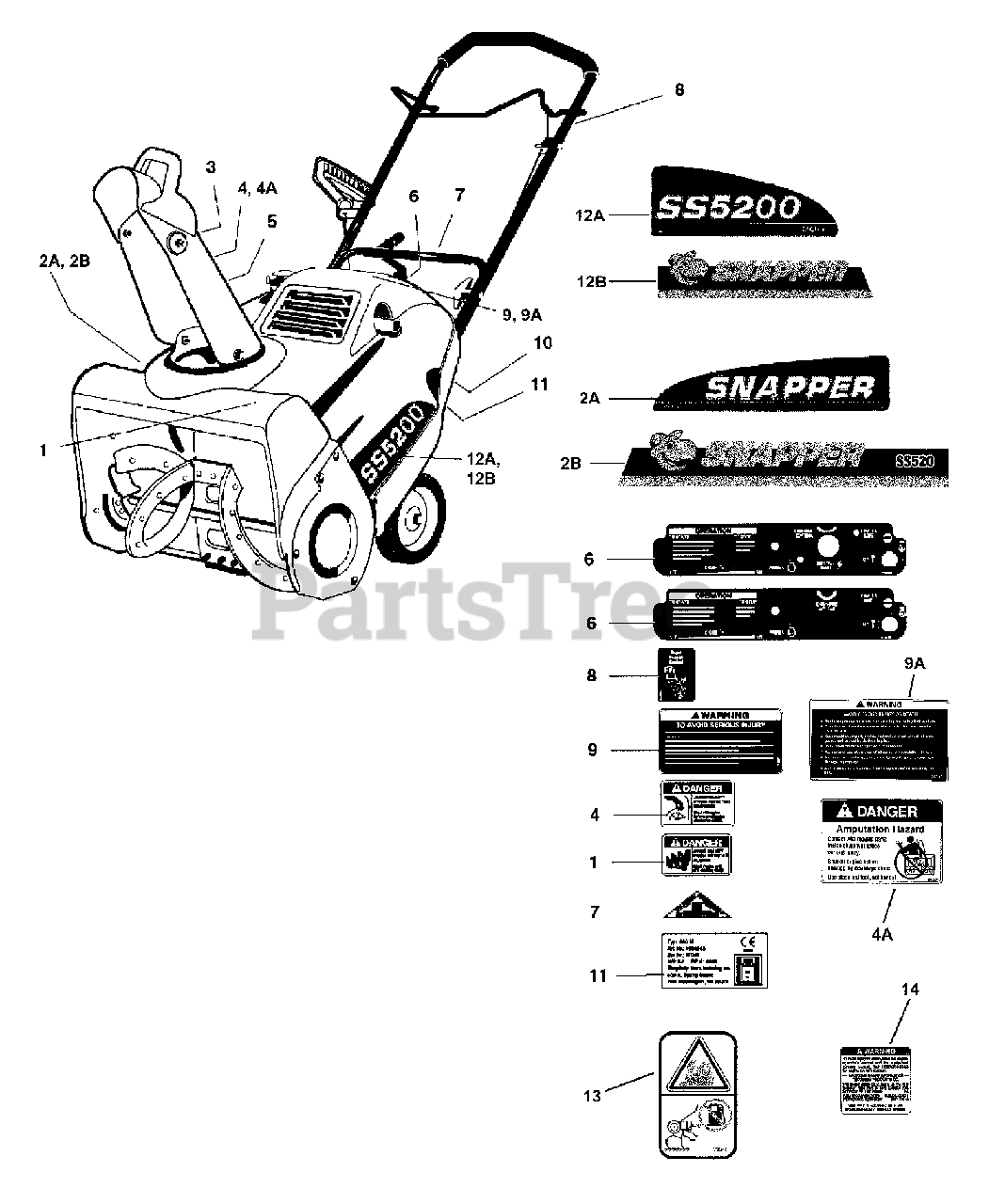

Decal Group Parts Diagram

  • Title

1

Snapper 1716532

DECAL, Danger, Auger
(Superseded to 1716532SM)

$12.99

$

Usually ships in 2-12 days

0

2A

Snapper 7075691

DECAL, 5200 Logo, Right Hand (Snapper)
(Superseded to 7075691YP)

$9.99

$

Usually ships in 2-12 days

0

2B

Snapper 7100786

DECAL, Top Cover RH (Snapper)

Note: replaces 7075691 on SS5201R & SS5201E

$

$

Currently unavailable

3

Snapper 1717960

DECAL, Power-Mass (export models only)

Note: not shown

$

$

Not available

4

Snapper 1716533

DECAL, Danger, Discharge Chute
(Superseded to 1722674SM)

$14.99

$

Usually ships in 2-12 days

0

4A

Snapper 1733057

DECAL, Danger, Chute/Deflector
(Superseded to 1733057SM)

Note: replaces 7071880 on SS5201R & SS5201E

$7.99

$

Usually ships in 2-12 days

0

5

Snapper 1709933

DECAL, C.E. (export models only)
(Superseded to 1709933SM)

Note: not shown

$6.49

$

Usually ships in 2-12 days

0

6

Snapper 1716669

DECAL, Console (electric start models)
(Superseded to 1716669SM)

$10.99

$

In Stock, only 1 left!

0

6

Snapper 1716670

DECAL, Console (manual start models)
(Superseded to 1716670SM)

$10.99

$

Usually ships in 2-12 days

0

7

DECAL, OPEI

Note: Not a Service Part.

$

$

Not available

8

Snapper 1716672

DECAL, Auger Control
(Superseded to 1716672SM)

$5.99

$

Usually ships in 2-12 days

0

9

Snapper 1716671

DECAL, Warning
(Superseded to 1716671SM)

$20.99

$

Usually ships in 2-12 days

0

9A

Snapper 7026733

DECAL, Warning, Safety Instructions
(Superseded to 7026733YP)

Note: replaces 7073461

$6.49

$

Usually ships in 2-12 days

0

10

DECAL, Compliance

Note: Not a Service Part.

$

$

Not available

11

DECAL, Serial Number

Note: Not a Service Part

$

$

Not available

12A

Snapper 7075692

DECAL, 5200 Logo, Left Hand (Snapper)
(Superseded to 7075692YP)

$8.49

$

Usually ships in 2-12 days

0

12B

Snapper 7100787

DECAL, Top Cover LH (Snapper)
(Superseded to 7100787YP)

$24.99

$

Usually ships in 2-12 days

0

13

Snapper 7073844

DECAL, Fuel Safety
(Superseded to 7073844SM)

Note: Snapper Decal

$5.99

$

Usually ships in 2-12 days

0

14

Snapper 7100699

DECAL, Tec. 5HP Carb/EPA Certified

Note: or 7045000

$

$

Currently unavailable
