SS 5200R (85630) - Snapper 20" Snow Thrower, 5hp Auger Housing and Chute Group Parts Diagram

20" Snow Thrower, 5hp

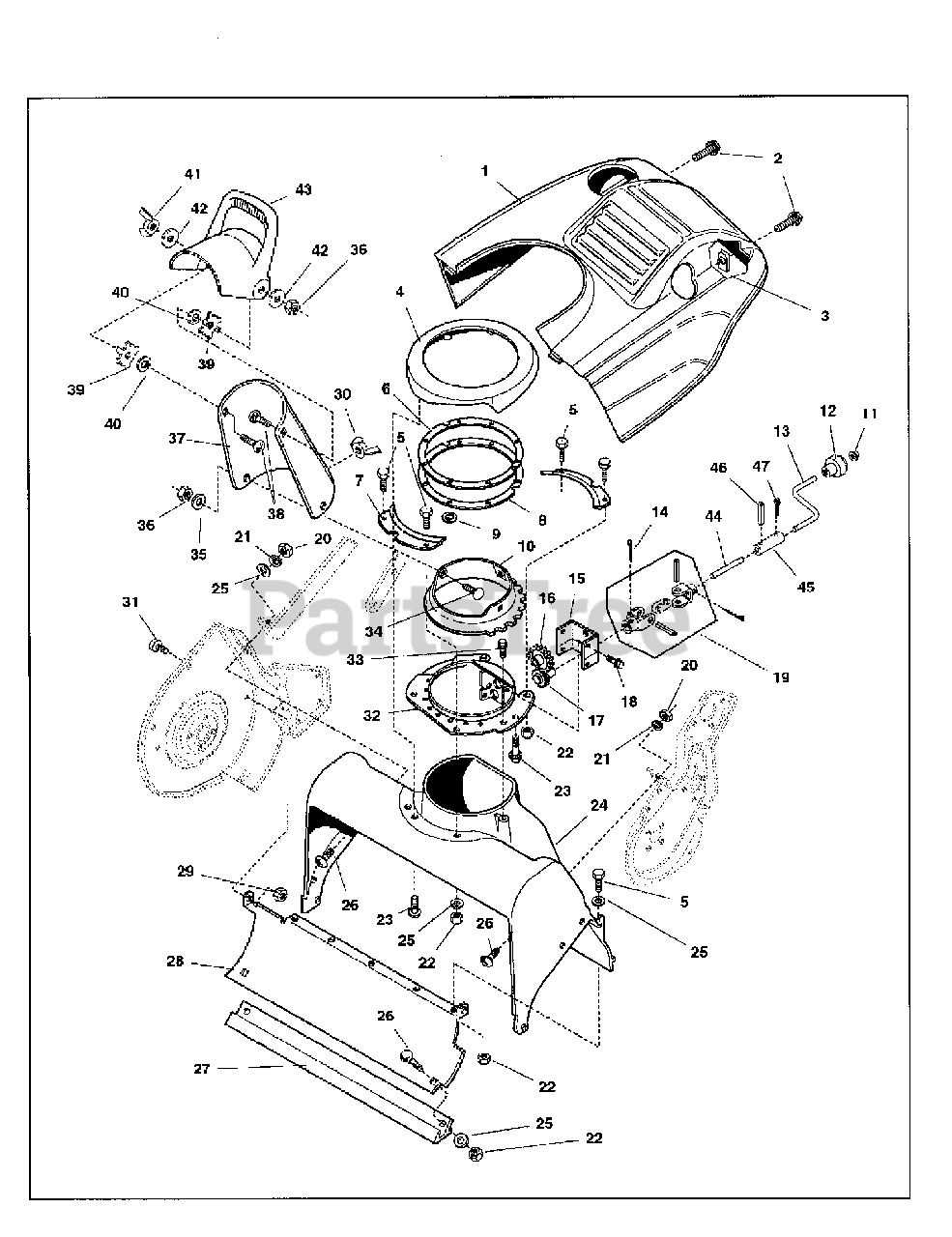

Auger Housing and Chute Group Parts Diagram

  • Title

1

Snapper 7075689

HOUSING, Upper Plastic w/Louvers 520 Snow
(Superseded to 7058495YP)

Note: Snapper Red Part

$210.99

$

Usually ships in 2-12 days

0

2

Snapper 1928732

SCREW, Hex Head, Taptite #10-24 x 1"
(Superseded to 703162)

$3.99

$

In Stock, only 1 left!

0

3

Snapper 1960593

NUT, Retainer, Speed #10-24 w/Extrusion
(Superseded to 1960593SM)

$4.99

$

Usually ships in 2-12 days

0

4

Snapper 1716628

COLLAR
(Superseded to 1716628SM)

$14.99

$

Usually ships in 2-12 days

0

5

Snapper 1923341

CAPSCREW, Hex Head, 1/4-20 x 3/4" GR 5
(Superseded to 1923341SM)

$4.49

$

In Stock, Qty 8

0

6

Snapper 1716640

GASKET
(Superseded to 1716640SM)

$9.49

$

Usually ships in 2-12 days

0

7

Snapper 1716625

RETAINER
(Superseded to 1716625SM)

$2.99

$

Usually ships in 2-12 days

0

8

Snapper 1716641

RETAINER, Gasket
(Superseded to 1716641SM)

$9.99

$

Usually ships in 2-12 days

0

9

Snapper 1960521

NUT, Push
(Superseded to 1960521SM)

Note: for .156 dia. Stud

$3.49

$

In Stock, Qty 10

0

10

Snapper 1716611

BASE, Chute
(Superseded to 1716611SM)

$20.99

$

Usually ships in 2-12 days

0

11

Snapper 1960093

NUT, Push, Pal, 3/8"
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

12

Snapper 1714084

KNOB, Chute, Rotate
(Superseded to 1714084SM)

$12.99

$

In Stock, only 1 left!

0

13

Snapper 1720578

HANDLE, Chute Rotator Upper
(Superseded to 1720578SM)

$13.99

$

Usually ships in 2-12 days

0

14

Snapper 918454

PIN, Cotter, 1/8 x 1-1/2"
(Superseded to 1923500SM)

$3.99

$

In Stock, only 1 left!

0

15

Snapper 1716630

BRACKET, Gear
(Superseded to 1716630SM)

$4.99

$

Usually ships in 2-12 days

0

16

Snapper 1716636

GEAR, Idler
(Superseded to 1716636SM)

$9.99

$

Usually ships in 2-12 days

0

17

Snapper 1716635

GEAR, Drive
(Superseded to 1716635SM)

$11.99

$

In Stock, only 1 left!

0

18

Snapper 1927429

SCREW, Hex Head Taptite, 1/4-20 x 5/8"
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

19

Snapper 1716658

ASSEMBLY, Universal Joint
(Superseded to 1716658SM)

$15.99

$

Usually ships in 2-12 days

0

20

Snapper 1916622

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

21

Snapper 1916964

LOCKWASHER, Spring, 1/4"
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

22

Snapper 1920397

NUT, Hex Lock Esna 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 1960001

SCREW, Hex Washer Slotted Head Plastite #10-14 x 5/8"
(Superseded to 703062)

$4.49

$

Usually ships in 2-12 days

0

24

Snapper 1716609

HOUSING, Auger
(Superseded to 1716609SM)

$53.99

$

Usually ships in 2-12 days

0

25

Snapper 1921319

WASHER, 1/4"
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

26

Snapper 1931318

CARRIAGE BOLT, 1/4-20 x 7/8", GR 5
(Superseded to 1931318SM)

$4.49

$

In Stock, only 2 left!

0

27

Snapper 1716606

SCRAPER BAR
(Superseded to 1716606SM)

$28.99

$

In Stock, Qty 8

0

28

Snapper 1716596

SCOOP
(Superseded to 1716596SM)

$14.99

$

Usually ships in 2-12 days

0

29

Snapper 1933896

NUT, Hex Lock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

30

Snapper 1933126

NUT, Wing 5/16-18 Lock
(Superseded to 1933126SM)

$5.49

$

In Stock, Qty 5

0

31

Snapper 1960570

SCREW, Truss Head Torx, #10-24 x 5/8" GR 5
(Superseded to 1960570SM)

$3.99

$

Usually ships in 2-12 days

0

32

Snapper 1716610

PLATE, Chute Base
(Superseded to 1716610SM)

$10.99

$

Usually ships in 2-12 days

0

33

Snapper 1960001

SCREW, Hex Washer Slotted Head Plastite #10-14 x 5/8"
(Superseded to 703062)

$4.49

$

Usually ships in 2-12 days

0

34

Snapper 1960282

CARRIAGE BOLT, 5/16-18 x 3/4"
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

35

Snapper 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

36

Snapper 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

37

Snapper 1716612

CHUTE
(Superseded to 1716612SM)

$86.99

$

Usually ships in 2-12 days

0

38

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

39

Snapper 1716642

WASHER, Octagon
(Superseded to 1716642SM)

$4.99

$

In Stock, Qty 12

0

40

Snapper 1716624

WASHER, Rubber
(Superseded to 1716624SM)

$4.49

$

In Stock, Qty 6

0

41

Snapper 7035744

KNOB, Wing (5/16-18 Black)
(Superseded to 7105085YP)

Note: was 1716632

$3.99

$

In Stock, Qty 20+

0

42

Snapper 1920283

WASHER, 1-1/2 O.D.
(Superseded to 1920283SM)

$4.99

$

In Stock, Qty 5

0

43

Snapper 1716631

DEFLECTOR, Chute
(Superseded to 1716631SM)

$

$

Not available

44

Snapper 1720576

HANDLE, Chute Rotator Lower, E-Coat
(Superseded to 1720576SM)

$21.99

$

Usually ships in 2-12 days

0

45

Snapper 1720577

TUBE, Chute Handles 1/2 OD 7.00 Long E-Coat
(Superseded to 1720577SM)

$17.99

$

Usually ships in 2-12 days

0

46

Snapper 1926228

PIN, Spring 5/32 x 1" SAE 1095
(Superseded to 1926228SM)

$11.99

$

Usually ships in 2-12 days

0

47

Snapper 1960074

CLIP, Hair Pin .093 Dia. Spring Wire 1.625 long
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0
