SS 5200R (85630) - Snapper 20" Snow Thrower, 5hp Auger and Drive Group Parts Diagram

20" Snow Thrower, 5hp

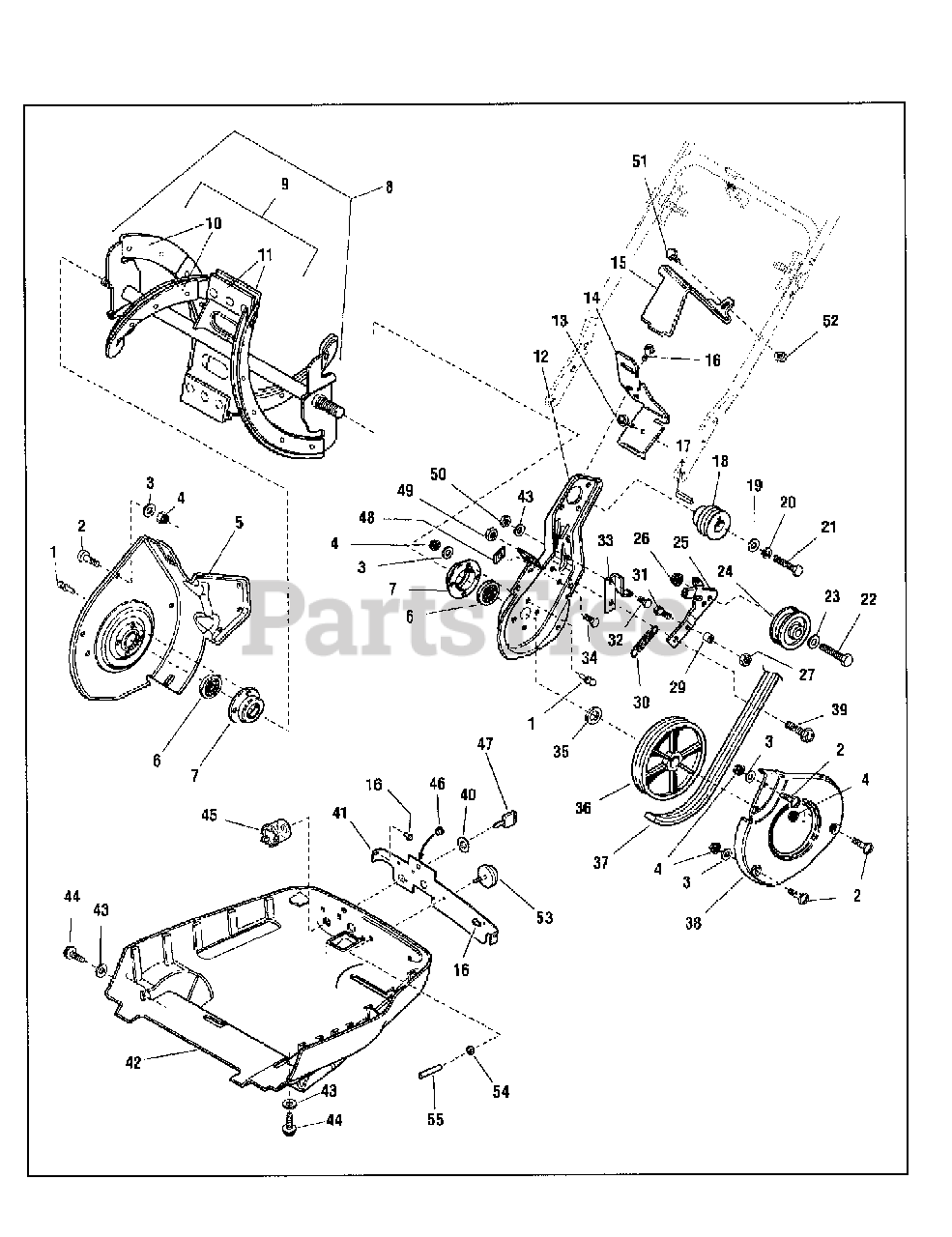

Auger and Drive Group Parts Diagram

  • Title

1

Snapper 1960241

RIVET, Pop, 1/4 x 1/2"
(Superseded to 1960241SM)

$5.49

$

Usually ships in 2-12 days

0

2

Snapper 1960570

SCREW, Truss Head Torx, #10-24 x 5/8" GR 5
(Superseded to 1960570SM)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 1910531

WASHER, Rivet
(Superseded to 1910531SM)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 1933896

NUT, Hex Lock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

5

Snapper 1716595

FRAME, Right Side
(Superseded to 1716595SM)

$17.99

$

Usually ships in 2-12 days

0

6

Snapper 1665521

BALL BEARING, Auger
(Superseded to 1665521SM)

$16.99

$

In Stock, only 2 left!

0

7

Snapper 1716649

RETAINER, Bearing
(Superseded to 1716649SM)

$6.99

$

Usually ships in 2-12 days

0

8

Snapper 1718151

WELDMENT, Auger
(Superseded to 1719612SM)

$494.99

$

Usually ships in 2-12 days

0

9

Snapper 1686705

KIT, Flighting Replacement
(Superseded to 1686705SM)

Note: (includes Ref. Nos. 10 & 11, plus fasteners and instructions)

$

$

Not available

10

Snapper 1718207

FLIGHTING, Rubber
(Superseded to 1718207SM)

$

$

Not available

11

Snapper 1716661

CENTER FLIGHT, Rubber
(Superseded to 1716661SM)

$9.49

$

In Stock, only 2 left!

0

12

Snapper 1716590

FRAME, Left Side
(Superseded to 1716590SM)

$

$

Not available

13

Snapper 1960001

SCREW, Hex Washer Slotted Head Plastite #10-14 x 5/8"
(Superseded to 703062)

$4.49

$

In Stock, Qty 12

0

14

Snapper 1716619

SHIELD, Belt
(Superseded to 1716619SM)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 1716663

AIR DEFLECTOR
(Superseded to 1716663SM)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 1929477

SCREW, Hex Head, #10-24 x 1-1/4"
(Superseded to 1929477SM)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 905850

KEY, Parallel .187 x .187 x 1"
(Superseded to 2805850SM)

$

$

Not available

18

Snapper 1716616

PULLEY, Drive
(Superseded to 1716616SM)

$27.99

$

Usually ships in 2-12 days

0

19

Snapper 1960141

WASHER
(Superseded to 1960141SM)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 1917356

LOCKWASHER, 5/16" Spring
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Snapper 1921982

CAPSCREW, Hex Head, 5/16-24 x 1-1/4", GR 5
(Superseded to 703299)

$4.99

$

Usually ships in 2-12 days

0

22

Snapper 1921969

CAPSCREW, Hex Head, 3/8-16 x 1-1/2", GR 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

23

Snapper 1924940

WASHER, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Snapper 1716615

PULLEY, Idler
(Superseded to 1716615SM)

Note: ref. Snapper part no. 7010948

$22.99

$

Usually ships in 2-12 days

0

25

Snapper 1716618

IDLER ARM
(Superseded to 1716618SM)

$6.99

$

In Stock, only 2 left!

0

26

Snapper 1931211

NUT, Flange Whiz Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

27

Snapper 1923358

NUT, Hex Centerlock 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

29

Snapper 1716656

ROLLER, Belt Stop
(Superseded to 1716656SM)

$2.99

$

Usually ships in 2-12 days

0

30

Snapper 1716653

SPRING, Idler Return
(Superseded to 1716653SM)

$35.99

$

In Stock, only 1 left!

0

31

Snapper 1921960

CAPSCREW, Hex Head, 1/4-20 x 1" GR 5
(Superseded to 1921960SM)

$3.49

$

In Stock, only 1 left!

0

32

Snapper 1924009

CAPSCREW, Hex Head, 1/4-20 x 7/8" GR 5
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 1716617

BRACKET, Belt
(Superseded to 1716617SM)

$2.49

$

Usually ships in 2-12 days

0

34

Snapper 1927429

SCAPCREW, Hex Washer Head Taptite, 1/4-20 x 5/8"
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

35

Snapper 1716655

SPACER, Pulley
(Superseded to 1716655SM)

$35.99

$

In Stock, only 1 left!

0

36

Snapper 1716614

PULLEY, Driven
(Superseded to 1716614SM)

$29.99

$

In Stock, only 1 left!

0

37

Snapper 1716645

BELT, Drive
(Superseded to 1716645SM)

Note: Poly Rib J; 37.525" effective length

$28.99

$

In Stock, only 1 left!

0

38

Snapper 1716589

BELT GUARD
(Superseded to 1716589SM)

$101.99

$

Usually ships in 2-12 days

0

39

Snapper 1716654

IDLER PIVOT BOLT
(Superseded to 1716654SM)

$5.49

$

In Stock, only 1 left!

0

40

Snapper 1714055

FLANGE NUT, Ignition Switch, 5/8-32
(Superseded to 1714055SM)

$3.49

$

Usually ships in 2-12 days

0

41

Snapper 1716637

CONTROL PANEL
(Superseded to 1716637SM)

$5.99

$

Usually ships in 2-12 days

0

42

Snapper 1716627

HOUSING, Lower
(Superseded to 1716627SM)

$125.99

$

Usually ships in 2-12 days

0

43

Snapper 1921319

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

44

Snapper 1960568

SCREW, Hex Head, Taptite, 1/4-20 x 7/8"
(Superseded to 1960568SM)

$3.99

$

Usually ships in 2-12 days

0

45

Snapper 1718337

SWITCH, Ignition
(Superseded to 1718337SM)

$

$

Not available

46

Snapper 1716676

SNAP BUSHING, 1/4"
(Superseded to 1716676SM)

$4.49

$

Usually ships in 2-12 days

0

47

Snapper 1714054

KEY, Ignition
(Superseded to 1714054SM)

$7.49

$

In Stock, Qty 20+

0

48

Snapper 1960595

SPEED NUT, 1/4-20
(Superseded to 1960595SM)

$2.99

$

Usually ships in 2-12 days

0

49

Snapper 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

50

Snapper 1920397

NUT, Hex Lock Esna 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

51

Snapper 960604

SCREW, Hex Head, Taptite, #10-20 x 1/2"
(Superseded to 2860604SM)

$4.49

$

In Stock, only 2 left!

0

52

Snapper 1933896

NUT, Hex Lock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

53

Snapper 7014638

PRIMER, Tecumseh 1/4-20
(Superseded to 7014638SM)

$

$

Not available

54

Snapper 7091100

NUT, 1/4-20 Hex, GR 5 or B
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

55

Snapper 1716675

LINE, Primer
(Superseded to 1716675YP)

$3.99

$

Usually ships in 2-12 days

0
