SS 50220E (7800080) - Snapper 22" Snow Thrower, 5hp Handle Assembly Group Parts Diagram

22" Snow Thrower, 5hp

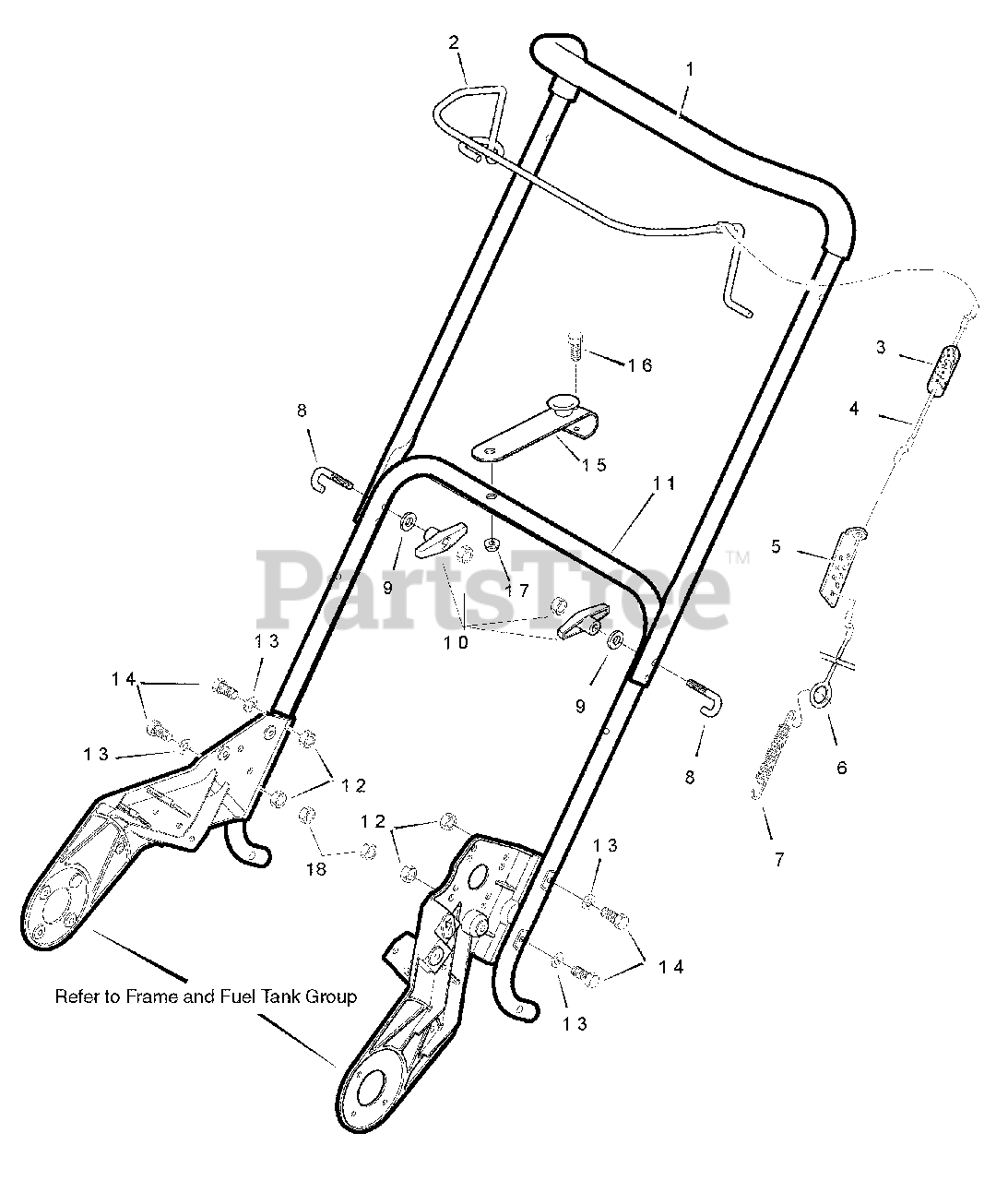

Handle Assembly Group Parts Diagram

  • Title

1

Snapper 722348

HANDLE & GRIP ASSEMBLY
(Superseded to 1502001MA)

$151.99

$

Usually ships in 2-12 days

0

2

Snapper 722313

CONTROL, Bail
(Superseded to 1501861E701MA)

$68.99

$

Usually ships in 2-12 days

0

3

Snapper 723154

BOOT, Clutch Spring
(Superseded to 308146MA)

$6.49

$

In Stock, only 2 left!

0

4

Snapper 722366

CABLE, Upper Control
(Superseded to 1502042MA)

$14.99

$

Usually ships in 2-12 days

0

5

Snapper 723259

BRACKET, Control Adjust
(Superseded to 313441MA)

$

$

Not available

6

Snapper 723261

CABLE, Lower Control
(Superseded to 313448MA)

$10.99

$

Usually ships in 2-12 days

0

7

Snapper 723263

SPRING, Extension 3/4 O.D. x .069
(Superseded to 313471MA)

$4.99

$

In Stock, only 1 left!

0

8

Snapper 722326

U-BOLT, 5/16-18
(Superseded to 1501877MA)

$6.49

$

Usually ships in 2-12 days

0

9

Snapper 723239

WASHER, Form 11/32 ID 1.0
(Superseded to 311936MA)

$7.49

$

Usually ships in 2-12 days

0

10

Snapper 722136

WING KNOB, (includes 5/16-18 hex nut #722399)
(Superseded to 1501260MA)

Note: was 1501260MA

$7.99

$

In Stock, Qty 8

0

11

Snapper 1740343

HANDLE, Lower

$

$

Currently unavailable

12

Snapper 725429

NUT, 1/4-20 Regular Hex Control Lock
(Superseded to 1501216MA)

$4.99

$

In Stock, Qty 20+

0

13

Snapper 725330

WASHER FLAT 9/32 x 5/8 x .065
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

14

Snapper 723280

SCREW, 1/4-20 x 1.25
(Superseded to 313674MA)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 1733377

BRACKET, Chute Handle Assembly
(Superseded to 1733377ASM)

$17.99

$

Usually ships in 2-12 days

0

16

Snapper 1740344

BOLT, 1/4-20 x 1.50 Hex Head
(Superseded to 1740344SM)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 1740345E701

NUT, 1/4-20 Hex Head Nylock Blk

$

$

Not available

18

Snapper 725408

Nut, 5/16-18 Hex Center Lock
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0
