SS 50220E (7800080) - Snapper 22" Snow Thrower, 5hp Engine Drive System Group Parts Diagram

22" Snow Thrower, 5hp

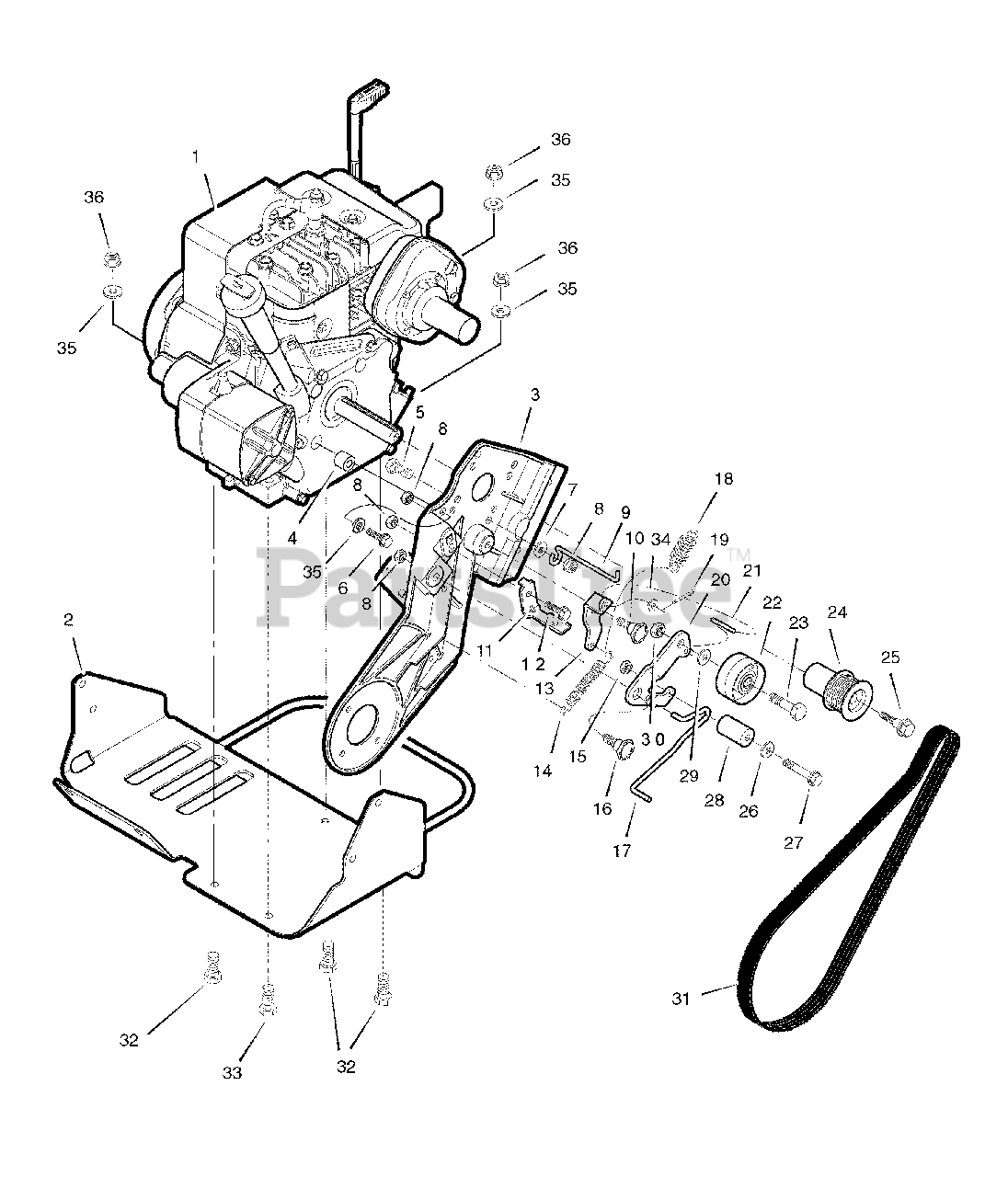

Engine Drive System Group Parts Diagram

  • Title

1

Snapper 09A413-0202-E1

* ENGINE, 5HP 4CY B&S Model 09A413-0202-E1

$

$

Not available

1

Snapper 09A413-0203-E1

* ENGINE, 5HP 4CY B&S Model 09A413-0203-E1

$

$

Not available

2

Snapper 722304

CRADLE ASSEMBLY, Engine
(Superseded to 1501849E701MA)

$222.99

$

Usually ships in 2-12 days

0

3

Snapper 722321

FRAME, Left Hand
(Superseded to 1501872E701MA)

$

$

Not available

4

Snapper 722360

ANTIVIBRATION MOUNT, Engine
(Superseded to 1502027MA)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 727947

BOLT, Hex 5/16-18 x 0865
(Superseded to 1X216MA)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 725244

BOLT, Hex 5/16-24 x 1.125
(Superseded to 6X118MA)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 725331

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

8

Snapper 725408

LOCKNUT, Hex Center 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

9

Snapper 723651

GUIDE, Belt
(Superseded to 334079MA)

$7.99

$

Usually ships in 2-12 days

0

10

Snapper 723625

BOLT, Hex Head Shank 5/16-1/2 x 11/64
(Superseded to 333594MA)

$20.99

$

In Stock, only 1 left!

0

11

Snapper 723648

PAD, Brake
(Superseded to 333970MA)

$5.49

$

Usually ships in 2-12 days

0

12

Snapper 728095

SCREW, 1/4-20 x 5/8
(Superseded to 579052MA)

$9.99

$

In Stock, only 1 left!

0

13

Snapper 727078

IDLER, Arm Pivot
(Superseded to 313444MA)

$

$

Not available

14

Snapper 723264

SPRING, Extension 3/8 O.D. X .039W
(Superseded to 313473MA)

$6.49

$

In Stock, only 1 left!

0

15

Snapper 725429

NUT, Hex 1/4-20
(Superseded to 1501216MA)

$4.99

$

In Stock, Qty 20+

0

16

Snapper 723625

BOLT
(Superseded to 333594MA)

$20.99

$

In Stock, only 1 left!

0

17

Snapper 722046

WIRE, Brake
(Superseded to 1501009MA)

$9.99

$

Usually ships in 2-12 days

0

18

Snapper 723263

SPRING, Extension .75 O.D. x .06
(Superseded to 313471MA)

$4.99

$

In Stock, only 1 left!

0

19

Snapper 727500

PIN, Cotter
(Superseded to 121223MA)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 723409

ARM, Idler
(Superseded to 320077MA)

$9.99

$

Usually ships in 2-12 days

0

21

Snapper 723256

ROD, Clutch Linkage
(Superseded to 313436MA)

$5.49

$

Usually ships in 2-12 days

0

22

Snapper 724085

PULLEY, Idler
(Superseded to 48924MA)

$31.99

$

Usually ships in 2-12 days

0

23

Snapper 723012

SCREW, 3/8-16 x 1.50
(Superseded to 302637MA)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 722331

PULLEY, Model 9 Engine
(Superseded to 1501908MA)

$28.99

$

Usually ships in 2-12 days

0

25

Snapper 722330

BOLT, Engine Pulley
(Superseded to 1501907MA)

$9.99

$

Usually ships in 2-12 days

0

26

Snapper 725330

WASHER, Flat
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

27

Snapper 727940

SCREW, 1/4-20 x 2.00
(Superseded to 180044MA)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 729335

PINCH ROLLER
(Superseded to 1501010MA)

$6.49

$

Usually ships in 2-12 days

0

29

Snapper 722944

WASHER, Flat
(Superseded to 301188MA)

$2.99

$

Usually ships in 2-12 days

0

30

Snapper 724840

NUT, Hex
(Superseded to 703996)

$4.99

$

In Stock, Qty 11

0

31

Snapper 724870

BELT, Drive
(Superseded to 333721MA)

$

$

Not available

32

Snapper 720025

BOLT, Hex 5/16-18
(Superseded to 001X81MA)

$3.49

$

In Stock, only 2 left!

0

33

Snapper 724071

SCREW, 3/8-16 x 1.00
(Superseded to 47792MA)

$3.99

$

Usually ships in 2-12 days

0

34

Snapper 723979

WASHER, Flat
(Superseded to 414106MA)

$3.49

$

Usually ships in 2-12 days

0

35

Snapper 725326

LOCKWASHER, Split
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

36

Snapper 725320

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

Snapper 1740284

INSTRUCTION BOOK (Not shown)

$

$

Not available
