SS 50220E (7800080) - Snapper 22" Snow Thrower, 5hp Auger and Housing Group Parts Diagram

22" Snow Thrower, 5hp

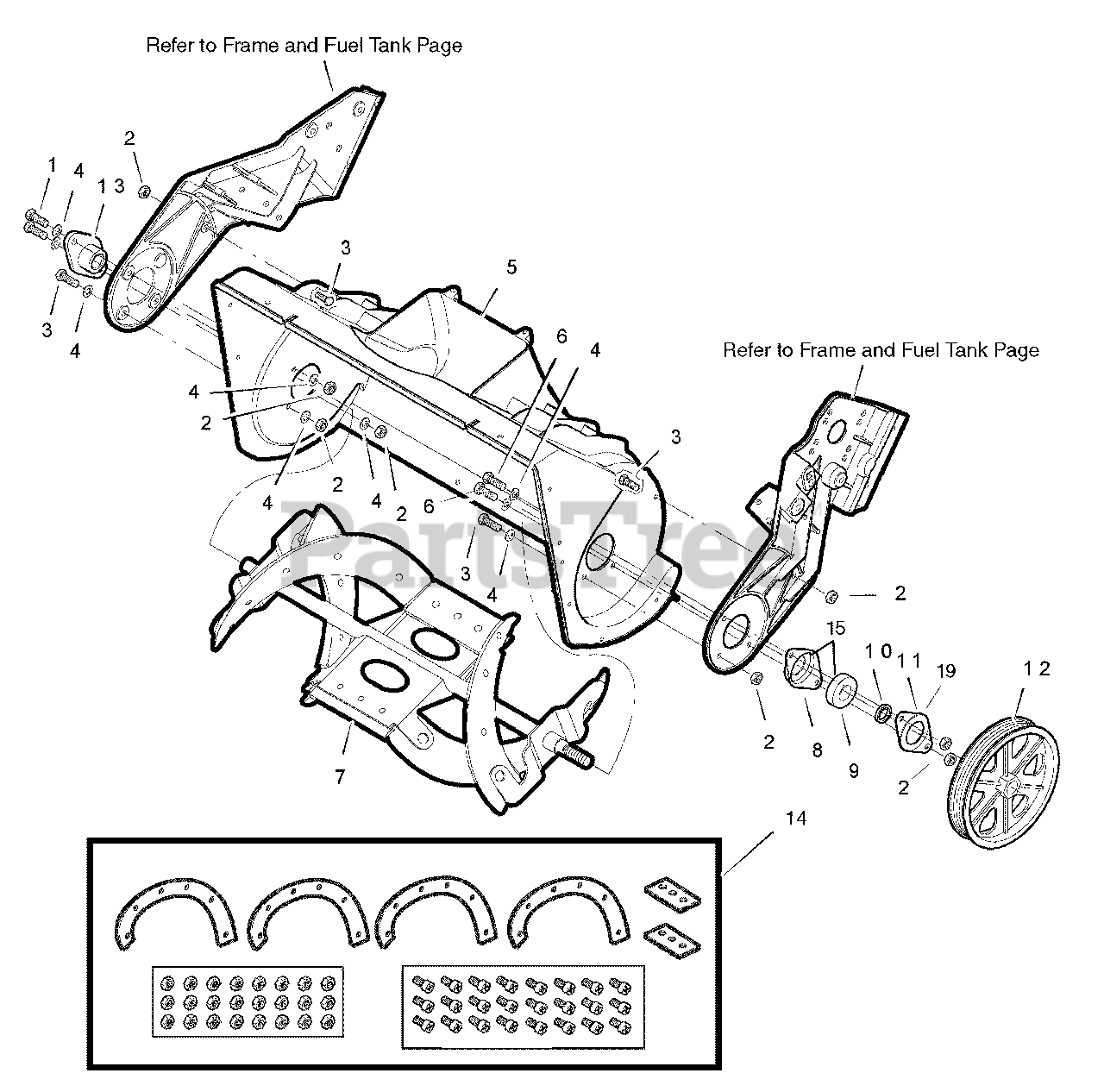

Auger and Housing Group Parts Diagram

  • Title

1

Snapper 725304

SCREW, 1/4-20 x 1.00
(Superseded to 710263MA)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 725429

NUT, Hex 1/4-20
(Superseded to 1501216MA)

$4.99

$

In Stock, Qty 20+

0

3

Snapper 723010

SCREW, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

4

Snapper 725330

WASHER, Flat
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

5

Snapper 1740348

HOUSING ASSEMBLY, Auger
(Superseded to 1736375YP)

$494.99

$

Usually ships in 2-12 days

0

6

Snapper 728095

SCREW, 1/4-20 x 5/8
(Superseded to 579052MA)

$9.99

$

In Stock, only 1 left!

0

7

Snapper 1740380

AUGER, Assembly, 22"
(Superseded to 1501981MA)

$256.99

$

Usually ships in 2-12 days

0

8

Snapper 724638

RETAINER, Bearing
(Superseded to 580251MA)

$16.99

$

Usually ships in 2-12 days

0

9

Snapper 724001

BEARING, Ball
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

10

Snapper 724570

SLEEVE, Spacer
(Superseded to 578101MA)

$4.99

$

Usually ships in 2-12 days

0

11

Snapper 723659

PLATE, Bearing Retainer
(Superseded to 334287MA)

$7.49

$

In Stock, only 1 left!

0

12

Snapper 723622

PULLEY, Auger Drive V6
(Superseded to 333446MA)

$22.99

$

Usually ships in 2-12 days

0

13

Snapper 724547

BEARING, Flange
(Superseded to 577023MA)

$5.99

$

In Stock, only 3 left!

0

14

Snapper 1687312

KIT, Auger Flight
(Superseded to 1687312YP)

$136.99

$

Usually ships in 2-12 days

0

15

Snapper 724753

assy, Plate & Bearing
(Superseded to 583459MA)

$27.99

$

Usually ships in 2-12 days

0

19

Snapper 728822

RETAINER, Bearing
(Superseded to 334287MA)

$7.49

$

In Stock, only 1 left!

0
