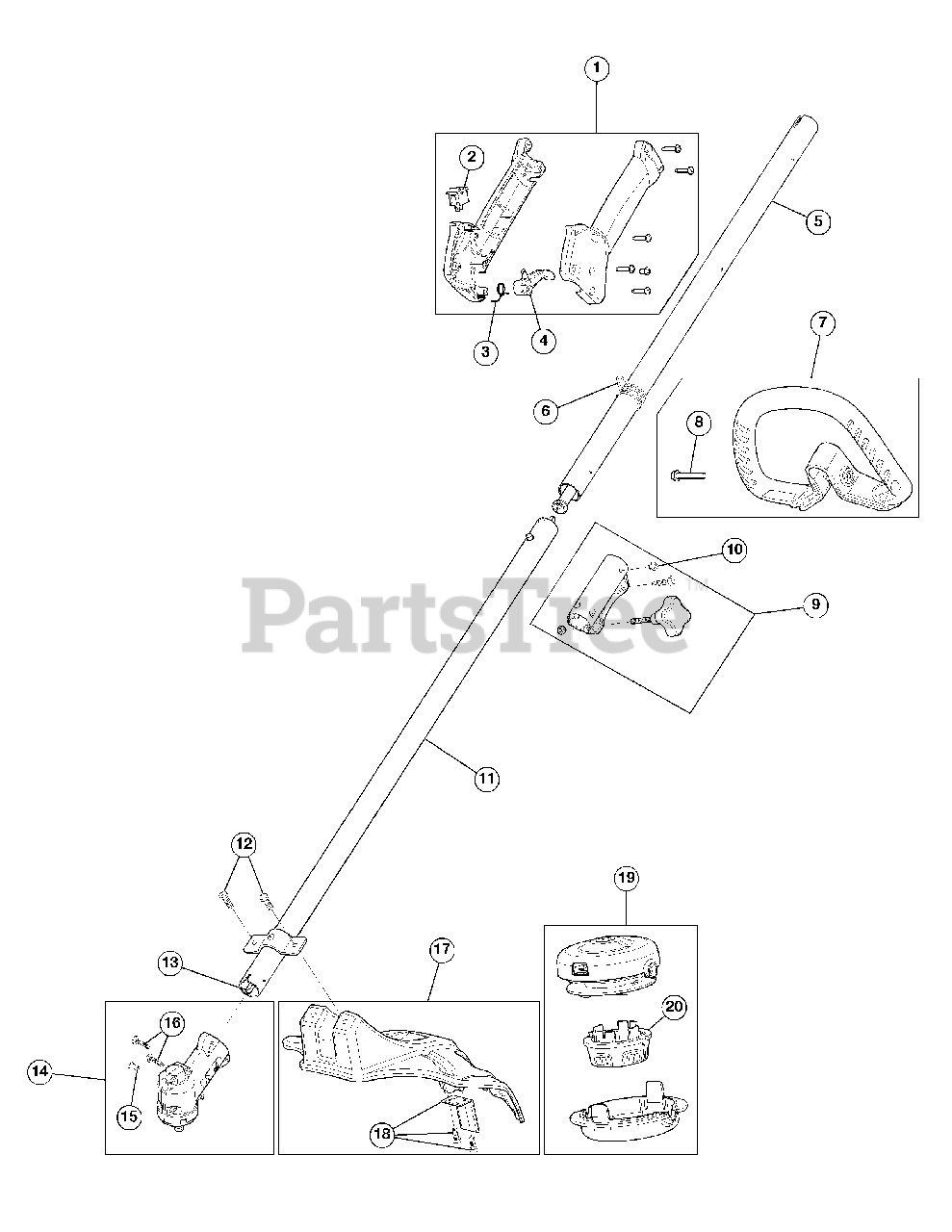

SS 470 (41ADZ47C812) - Cub Cadet String Trimmer (2015) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title
1

Cub Cadet 753-06917

Throttle Housing Assembly (Incl. 2 - 4)

$5.99

$

In Stock, only 4 left!

0

2

Cub Cadet 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

3

Cub Cadet 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

Cub Cadet 753-06918

Throttle Trigger

$3.49

$

In Stock, Qty 6

0

5

Cub Cadet 753-06682

Upper Drive Shaft Assembly

$18.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 791-610327

Shoulder Strap Clip

$32.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 753-06039

D-Handle Assembly (Incl. 8)

$11.99

$

Usually ships in 3-6 days

0

$6.99

$

In Stock, only 1 left!

0

9

Cub Cadet 753-06585

Split Boom Coupler (Incl. 10)

$9.49

$

In Stock, only 4 left!

0

10

Cub Cadet 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, Qty 6

0

11

Cub Cadet 753-06789

Lower Drive Shaft Housing

$23.99

$

In Stock, only 1 left!

0

12

Cub Cadet 753-06125

Shield Mounting Screws

$6.99

$

In Stock, only 4 left!

0

13

Cub Cadet 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

14

Cub Cadet 753-08180

Gearbox Assembly (Incl. 15 and 16)

$45.99

$

In Stock, only 2 left!

0

15

Cub Cadet 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

16

Cub Cadet 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

17

Cub Cadet 753-08177

Shield Assembly (Incl. 18)

$12.99

$

In Stock, only 2 left!

0

18

Cub Cadet 753-08178

Blade Assembly

$2.99

$

In Stock, Qty 5

0

19

Cub Cadet 753-08179

Cutting Head Assembly (Incl. 20)

$19.99

$

In Stock, Qty 20+

0

20

Cub Cadet 753-08152

Bump Knob
(Superseded to 753-08157)

$5.49

$

In Stock, Qty 9

0

Cub Cadet 49U2341K953

Round Line-.095, 40 ft. packet

Note: (Optional Accessory)

$

$

Not available

Cub Cadet 737-04317

Oil, 4-Cycle 3.4 OZ. SAE 30
(Superseded to 737-05691)

Note: (Optional Accessory)

$2.99

$

In Stock, only 1 left!
