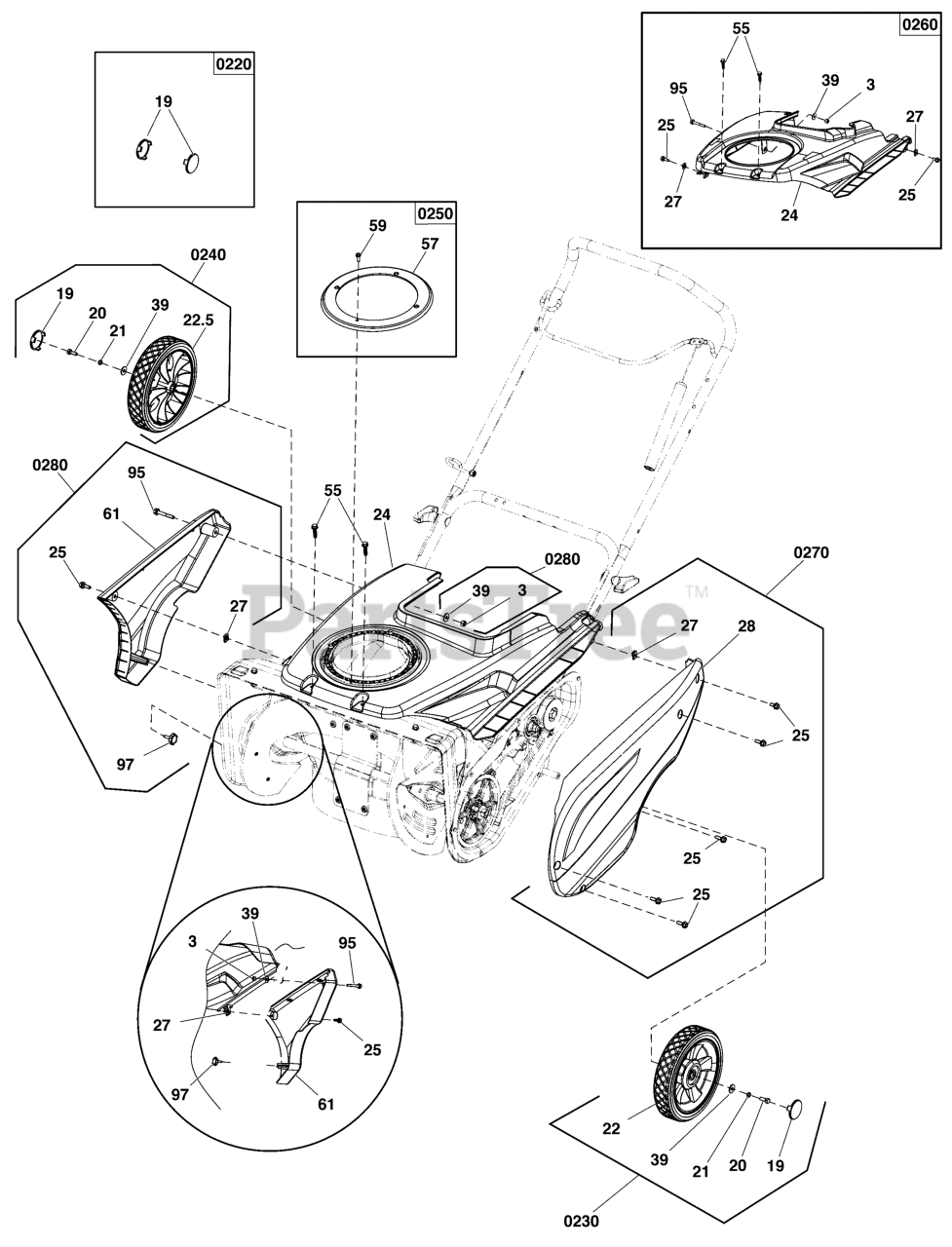

SS 22 R (1697349-01) - Briggs & Stratton Legend Force 22" Snow Thrower, 9.5 Gross TP (2020) Wheel & Body Covering Group Parts Diagram

Legend Force 22" Snow Thrower, 9.5 Gross TP

Wheel & Body Covering Group Parts Diagram

  • Title

0220

Briggs & Stratton 84006422

KIT, Wheel Cover

Note: (Incl. Ref. Nos. 19)

$

$

Currently unavailable

19

COVER, End, Wheel, Pewter

$

$

Not available

0230

Briggs & Stratton 84006420

KIT, Wheel, Left

Note: (Incl. Ref. Nos. 19, 20, 21, 22 & 39)

$

$

Currently unavailable

19

COVER, End, Wheel, Pewter

$

$

Not available

20

BOLT, M6x16, Hex Head

$

$

Not available

21

WASHER, M6, Split Lock, MC

$

$

Not available

22

WHEEL, Left, 1.75 X 8, Pewter

$

$

Not available

39

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0240

Briggs & Stratton 84006421

KIT, Wheel, Right

Note: (Incl. Ref. Nos. 19, 20, 21, 22.5 & 39)

$

$

Currently unavailable

19

COVER, End, Wheel, Pewter

$

$

Not available

20

BOLT, M6x16, Hex Head

$

$

Not available

21

WASHER, M6, Split Lock, MC

$

$

Not available

22.5

WHEEL, Right, 1.75 X 8, Pewter

$

$

Not available

39

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0250

Briggs & Stratton 709887

KIT, CHUTE MOISTURE COVER

Note: (Incl. Ref. Nos. 57 & 59)

$23.99

$

Usually ships in 2-12 days

0

57

COVER, Chute Moisture

$

$

Not available

59

Briggs & Stratton 723361

SCREW, #10-HL x 5/8, Hex Washer Head
(Superseded to 316042MA)

$4.49

$

Usually ships in 2-12 days

0

0260

Briggs & Stratton 709892

KIT, Top Cover

Note: (Incl. Ref. Nos. 3, 24, 25, 27, 39, 55 & 95)

$176.99

$

Usually ships in 2-12 days

0

3

NUT, M6, Lock

$

$

Not available

24

COVER, Top, Black

$

$

Not available

25

SCREW, M6x16, Hex Washer Head

$

$

Not available

27

NUT, M6, CLIP

$

$

Not available

39

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

55

Briggs & Stratton 7091081SM

SCREW, 1/4-15 X .750

$4.49

$

In Stock, Qty 12

0

95

SCREW, M6x40, Hex Flange Head

$

$

Not available

0270

Briggs & Stratton 709897

KIT, Drive Case Cover

Note: (Incl. Ref. Nos. 25, 27 & 28)

$60.99

$

In Stock, only 1 left!

0

25

SCREW, M6x16, Hex Washer Head

$

$

Not available

27

NUT, M6, CLIP

$

$

Not available

28

COVER, Drive Case, Black

$

$

Not available

0280

Briggs & Stratton 709917

KIT, Side Cover, Right

Note: (Incl. Ref. Nos. 3, 25, 27, 39, 61, 95 &97)

$91.99

$

Usually ships in 2-12 days

0

3

NUT, M6, Lock

$

$

Not available

25

SCREW, M6x16, Hex Washer Head

$

$

Not available

27

NUT, M6, CLIP

$

$

Not available

39

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

61

COVER, Side, Black

$

$

Not available

95

SCREW, M6x40, Hex Flange Head

$

$

Not available

97

SCREW, M5x20, Knob, Self-Tapping

$

$

Not available
