SS 22 E (1696314-00) - Briggs & Stratton 22" Snow Thrower, 8.0 Gross TP (2012) Engine Group Parts Diagram

22" Snow Thrower, 8.0 Gross TP

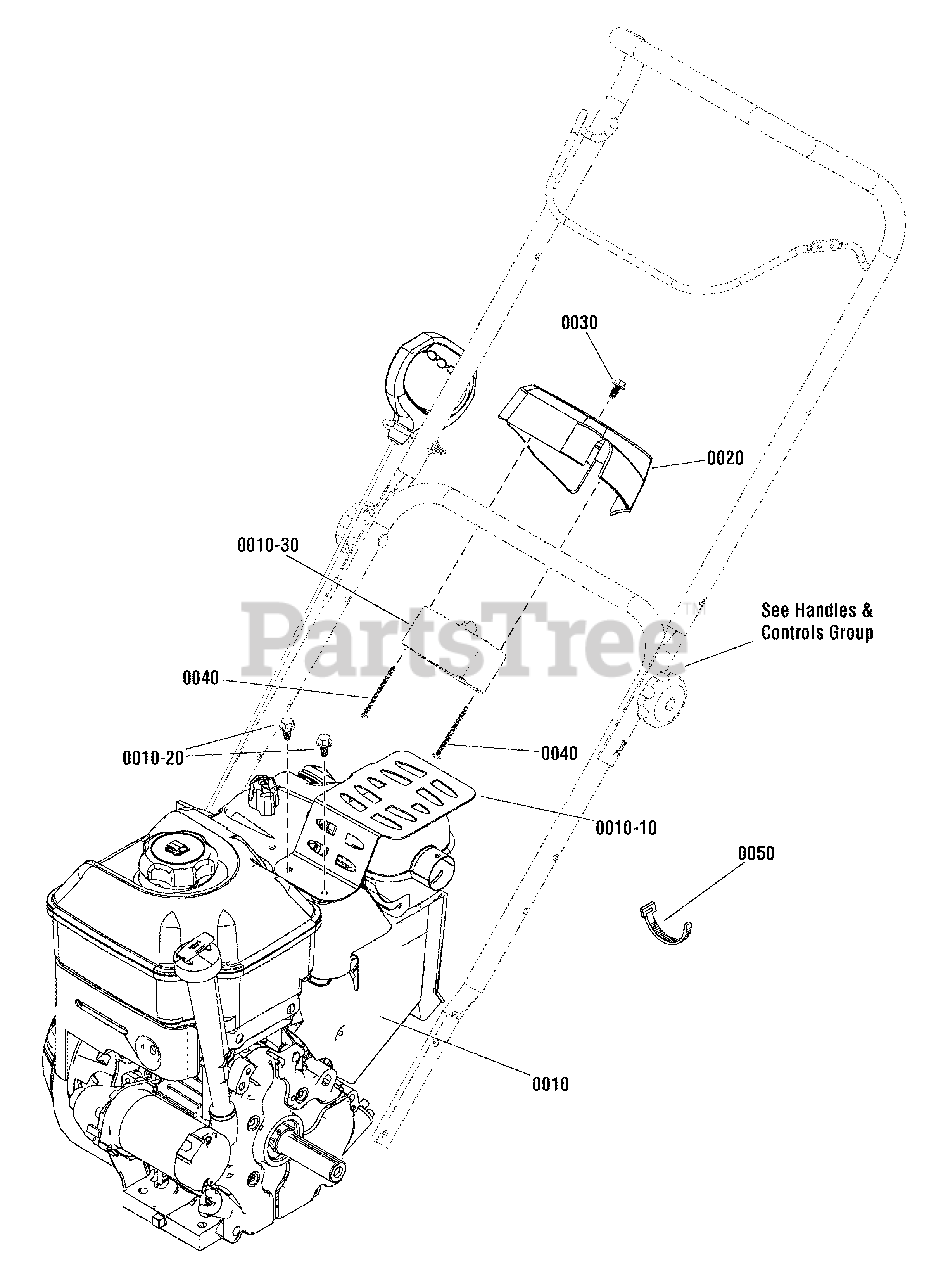

Engine Group Parts Diagram

  • Title

0010

Briggs & Stratton 12A105-0157-F8

* ENGINE, 8TP Briggs & Stratton

Note: (Engine Model: 12A105-0157-F8)

$

$

Not available

0010-10

Briggs & Stratton 797003

GUARD, Muffler, Plate

$45.99

$

Usually ships in 2-12 days

0

0010-20

Briggs & Stratton 699854

SCREW, Muffler Guard, Hex Washer Head

$3.99

$

In Stock, Qty 9

0

0010-30

** STARTER, 110V

$

$

Not available

0020

Briggs & Stratton 1750032YP

HOUSING, Starter, 110V

$8.99

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 1750447YP

SCREW, Hex Washer Head, Trilob, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

0040

Briggs & Stratton 1750593YP

SCREW, Pan Head Phillips, Plast., 8-16 x 2-1/8

$3.49

$

In Stock, only 2 left!

0

0050

Briggs & Stratton 032618MA

STRAP, Tie

$3.99

$

Usually ships in 2-12 days

0
