SS 200 (5901860) - Snapper Pro SS200 Series 61" Stand-On Mower, 28hp Briggs & Stratton Transaxle SERVICE Parts - Hydro-Gear ZT3800 (5108073_5108072) Parts Diagram

SS200 Series 61" Stand-On Mower, 28hp Briggs & Stratton

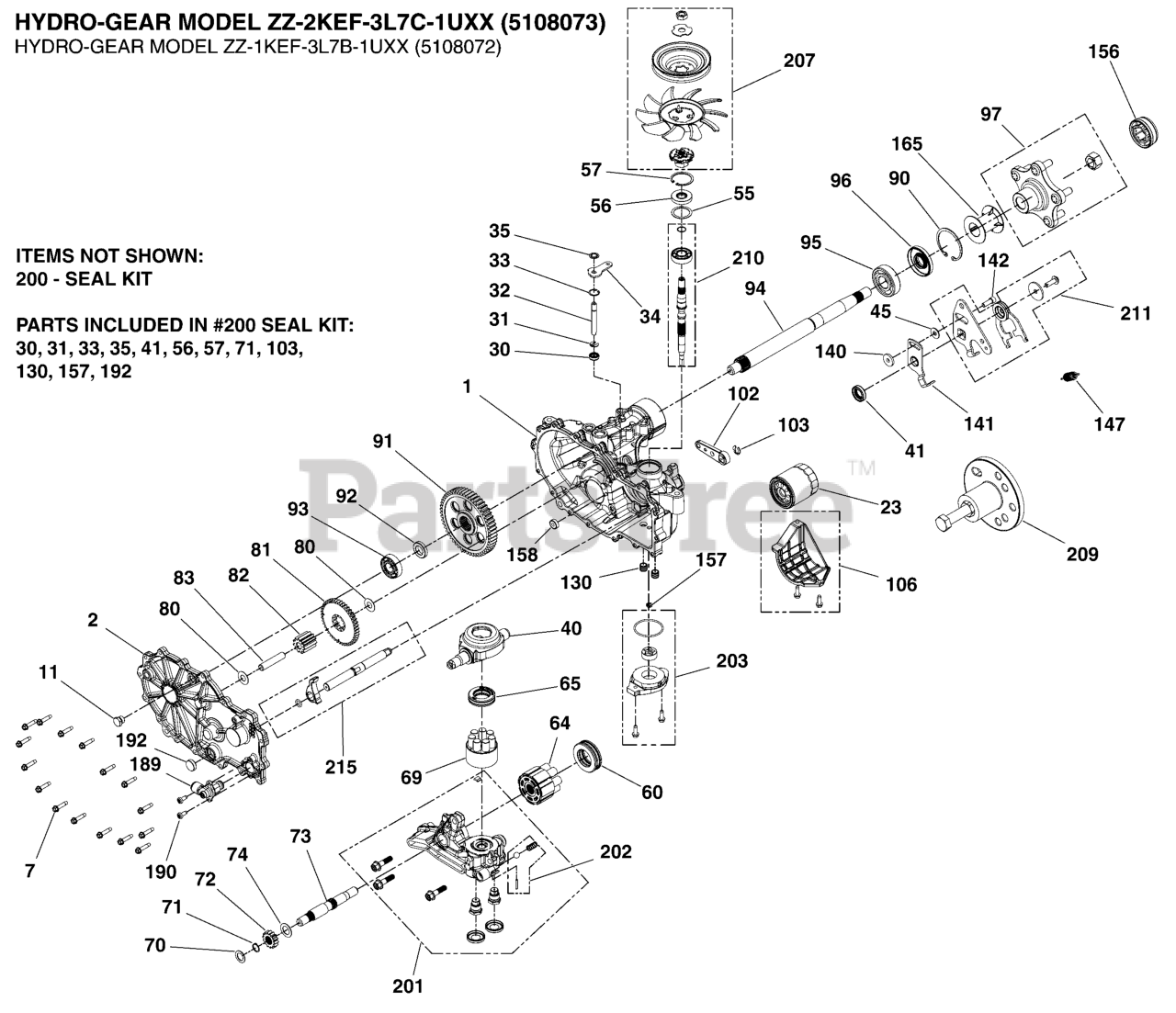

Transaxle SERVICE Parts - Hydro-Gear ZT3800 (5108073_5108072) Parts Diagram

  • Title

1

KIT, HOUSING, MAIN, LH, CHARGE, CONTROL

$

$

Not available

2

KIT, COVER, SIDE, LH, COOLER

$

$

Not available

7

SCREW, HEX WASHER

$

$

Not available

11

PLUG EXTERNAL HEX VENT 9/16-18

$

$

Not available

23

Snapper Pro 5101026X1

FILTER, OIL, ZT2800

$40.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 5108072X1

SEAL, LIP .375 X .75 X .25 (55232)

$8.49

$

In Stock, only 2 left!

0

31

BYPASS RETAINING RING 1

$

$

Not available

32

ROD, BYPASS .375 X 2.88

$

$

Not available

33

BYPASS RETAINING RING 2

$

$

Not available

34

ARM, BYPASS

$

$

Not available

35

RING, RETAINING .375 EXTERNAL

$

$

Not available

40

SWASHPLATE, TRUNNION

$

$

Not available

41

Snapper Pro 5101026X2

SEAL, CONTROL ARM, 18X32X7, #51140
(Superseded to 5101026X2SM)

$16.99

$

Usually ships in 2-12 days

0

45

WASHER, .34X.88X.06

$

$

Not available

55

Snapper Pro 1730272

SPACER (50951)

$

$

Not available

56

Snapper Pro 5023414

Lip Seal 17 x 40 x 7 PTC
(Superseded to 5023414SM)

$18.99

$

In Stock, only 1 left!

0

57

Snapper Pro 5023415

Spacer
(Superseded to 5023415SM)

$9.49

$

Usually ships in 2-12 days

0

60

BEARING, THRUST 35 x 62 x 18

$

$

Not available

64

KIT, 16cc CYLINDER BLOCK ASSEMBLY STEAM TREAT

$

$

Not available

65

BEARING, THRUST PLASTIC CAGE

$

$

Not available

69

KIT, CYLINDER BLOCK (12cc)

$

$

Not available

70

WASHER, .63 X 1.00 X .05 FLAT

$

$

Not available

71

Snapper Pro 1706130

RING-SNAP (44145)

$

$

Not available

72

GEAR, 14T (STEEL)

$

$

Not available

73

SHAFT, MOTOR

$

$

Not available

74

WASHER, .71 X 1.16 X .04 FLAT

$

$

Not available

80

WASHER, .51 X 1.00 X .03 FLAT

$

$

Not available

81

GEAR, 45T STEEL

$

$

Not available

82

GEAR, 11T (STEEL)

$

$

Not available

83

PIN, JACKSHAFT

$

$

Not available

90

Snapper Pro 5108072X2

RING, RETAINING 244 INTERNAL (55176)

$

$

Currently unavailable

91

GEAR, 54T FORGED

$

$

Not available

92

SPACER, .750 X 1.320 X .257

$

$

Not available

93

Snapper Pro 5108072X3

BEARING, BALL 19.05X47.00X14.00 (54554)

$

$

Currently unavailable

94

SHAFT, AXLE

$

$

Not available

95

Snapper Pro 5108072X4

BEARING, 25.4 X 62 X 17, 6305R (55173)

$

$

Currently unavailable

96

Snapper Pro 5108072X5

SEAL, 1.00 X 2.44 X .375 LIP (55175)

$

$

Currently unavailable

97

Snapper Pro 5104580X6

HUB, ZT3400, 71691

$136.99

$

Usually ships in 2-12 days

0

102

HANDLE, ACTUATING

$

$

Not available

103

Snapper Pro 5104055

E-CLIP, BRAKE ARM, ZT3100 & ZT3400
(Superseded to 5104055YP)

$4.99

$

Usually ships in 2-12 days

0

106

KIT, FILTER GUARD

$

$

Not available

130

TUBE, CHARGE TRIPLE O-RING

$

$

Not available

140

SPACER, .320X1.005X.179

$

$

Not available

141

ARM, NEUTRAL, LH

$

$

Not available

142

SHCS, 5/16-24 X .875 (PATCH)

$

$

Not available

147

Snapper Pro 5108072X9

SPRING, EXTENSION (51833)

$

$

Currently unavailable

156

Snapper Pro 5103589X7

AXLE CAP,

$18.99

$

Usually ships in 2-12 days

0

157

KIT, GEROTOR SEAL

$

$

Not available

158

MAGNET

$

$

Not available

165

Snapper Pro 5103589X9

DEBRIS GUARD HG #53496

$10.99

$

Usually ships in 2-12 days

0

189

Snapper Pro 5108072X10

ASSEMBLY, AUX COOLER PORT (#55672)

$90.99

$

Usually ships in 2-12 days

0

190

SCREW, PAN HEAD, 1/4-20 X .625

$

$

Not available

192

SEAL, PLUG .875 X .250

$

$

Not available

200

Snapper Pro 5108072X6

KIT, SEAL, ZT-3800 (73000)

$78.99

$

Usually ships in 2-12 days

0

201

KIT, CENTER SECTION, LH CHARGE

$

$

Not available

202

KIT, CHARGE RELIEF

$

$

Not available

203

Snapper Pro 5108072X7

KIT, CHARGE PUMP (72795)

$

$

Currently unavailable

207

Snapper Pro 5104580X1

FAN & PULLEY KIT, ZT3400'S, STAND-ON

$106.99

$

In Stock, only 1 left!

0

209

KIT, HUB PULLER

$

$

Not available

210

Snapper Pro 5103589X4

KIT, INPUT SHAFT (BEARING AND SHAFT ONLY)

$296.99

$

Usually ships in 2-12 days

0

211

Snapper Pro 1735490

KIT, L.H. Control Arm
(Superseded to 1735490SM)

$108.99

$

Usually ships in 2-12 days

0

215

Snapper Pro 5108072X8

KIT, OUTBOARD, RH ROT B/LH ROT A (72960)

$

$

Currently unavailable
