SS 200 (5901803) - Snapper Pro SS200 Series 61" Stand-On Mower, 28hp Briggs & Stratton Operator Compartment Group Parts Diagram

SS200 Series 61" Stand-On Mower, 28hp Briggs & Stratton

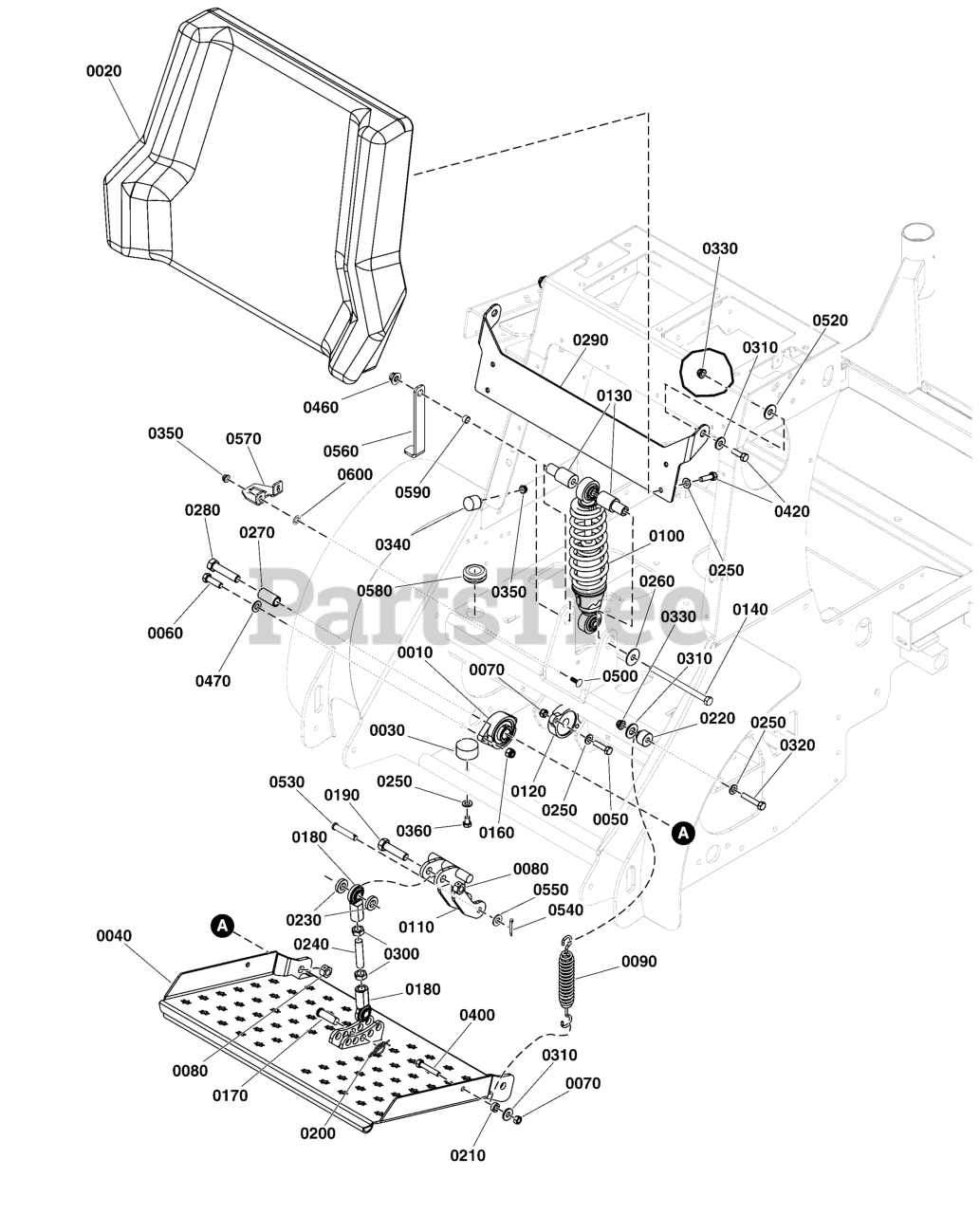

Operator Compartment Group Parts Diagram

  • Title

0010

Snapper Pro 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

0020

Snapper Pro 5104452

KNEE PAD, STAND-ON
(Superseded to 5108192FS)

Note: (S/N: 4000875836 and below)

$438.99

$

In Stock, only 1 left!

0

0020

Snapper Pro 5108192

KNEE PAD, STAND ON
(Superseded to 5108192FS)

Note: (S/N: 4000875837 and above)

$438.99

$

In Stock, only 1 left!

0

0030

Snapper Pro 5104593

BUMPER, RUBBER
(Superseded to 5104593FS)

$9.49

$

Usually ships in 2-12 days

0

0040

Snapper Pro 5414131A

WELD, STAND ON PLATFORM - BLK
(Superseded to 5414131AFS)

$320.99

$

Usually ships in 2-12 days

0

0050

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0060

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

0070

Snapper Pro 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

0080

Snapper Pro 5025332

NUT, 1/2-13 Hex Side Lock
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 12

0

0090

Snapper Pro 5022847

SPRING-EXT, 1.04 ODX6.935LGX.148WR, BLK
(Superseded to 5022847SM)

$34.99

$

In Stock, Qty 8

0

0100

Snapper Pro 5104640

SHOCK / SPRING ASSEMBLY
(Superseded to 5104640FS)

$148.99

$

Usually ships in 2-12 days

0

0110

Snapper Pro 5414069A

WELD, SUSPENSION LINK - BLK

$41.99

$

Usually ships in 2-12 days

0

0120

Snapper Pro 5022846

BEARING-FLANGE, 5/8
(Superseded to 5022846SM)

$51.99

$

In Stock, Qty 20+

0

0130

Snapper Pro 5104620

SPACER, STEP, .39 X 1.00 X .69, CZ
(Superseded to 5104620FS)

$15.99

$

Usually ships in 2-12 days

0

0140

Snapper Pro 5025013X44

BOLT, 3/8-16 X 5-1/2" GD5 CZ
(Superseded to 5025013X44SM)

$4.99

$

Usually ships in 2-12 days

0

0160

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

0170

Snapper Pro 5025328X12

PIN, CLEVIS, 1/2 X 1-1/2, PLATED
(Superseded to 5025328X12SM)

$4.99

$

In Stock, only 4 left!

0

0180

Snapper Pro 1702779

JOINT-BALL .500-20 THD .500ID, CLR ZINC
(Superseded to 1702779SM)

$28.99

$

In Stock, Qty 14

0

0190

Snapper Pro 5025017X16

BOLT, 1/2-13 X 2" GD5 CZ
(Superseded to 5025017X16YP)

$4.49

$

In Stock, only 1 left!

0

0200

Snapper Pro 5025540

PIN, SURE LOCK COTTER, .09 X .75, CZ
(Superseded to 5025540FS)

$2.99

$

Usually ships in 2-12 days

0

0210

Snapper Pro 5104654

SPACER, .33 X .63 X .25, CZ
(Superseded to 5104654FS)

$4.49

$

Usually ships in 2-12 days

0

0220

Snapper Pro 5104655

SPACER, .328 X 1.0 X .85, CZ
(Superseded to 5104655FS)

$7.99

$

Usually ships in 2-12 days

0

0230

Snapper Pro 5100520

SPACER, .52 X 1.00 X .22, PM, CZ
(Superseded to 5100520SM)

$6.49

$

In Stock, only 2 left!

0

0240

Snapper Pro 5104663

ROD, THREADED, 1/2-20 X 2.25
(Superseded to 5104663FS)

$14.99

$

Usually ships in 2-12 days

0

0250

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0260

Snapper Pro 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

0270

Snapper Pro 5104658

SPACER, .52 X .74 X 1.50, CZ
(Superseded to 5104658FS)

$11.99

$

Usually ships in 2-12 days

0

0280

Snapper Pro 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

$5.99

$

Usually ships in 2-12 days

0

0290

Snapper Pro 5415781D

PLATE, PADE MOUNT, SRS - RED
(Superseded to 5415781DFS)

$34.99

$

Usually ships in 2-12 days

0

0300

Snapper Pro 5025089

NUT, 1/2-20 Hex Jam
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 20+

0

0310

Snapper Pro 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

0320

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

0330

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0340

Snapper Pro 5022673

BUMPER, RUBBER, 1/4-20
(Superseded to 5022673SM)

$18.99

$

In Stock, only 1 left!

0

0350

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0360

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

0400

Snapper Pro 1960086

SCREW, TRUSS HD TORX DR5/16-18X0.875 BLK
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

0420

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0460

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0470

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0500

Snapper Pro 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 1 left!

0

0520

Snapper Pro 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

0530

Snapper Pro 84007981

PIN, Clevis

$5.49

$

Usually ships in 2-12 days

0

0540

Snapper Pro 5025203X6

* PIN, COTTER, 1/8" X 3/4
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 3 left!

0

0550

Snapper Pro 5025293

WASHER, 3/8" GR. 9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

0560

Snapper Pro 5107798

PLATE, LINK, OPC, SRSZ
(Superseded to 5107798FS)

$7.99

$

Usually ships in 2-12 days

0

0570

Snapper Pro 5105692

PLATE, SWITCH, OPC, SRSZ, CZ
(Superseded to 5105692FS)

$5.99

$

Usually ships in 2-12 days

0

0580

Snapper Pro 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

0590

Snapper Pro 5041930

SPACER, .38 X .50 X .27, CZ
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

0600

Snapper Pro 80004801

BOLT,1/4,PUSHNUT RETAINER,PHOSPHATE/OIL
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+
