SS 200 (5901802) - Snapper Pro SS200 Series 52" Stand-On Mower, 28hp Briggs & Stratton Wheel & Tire Group Parts Diagram

SS200 Series 52" Stand-On Mower, 28hp Briggs & Stratton

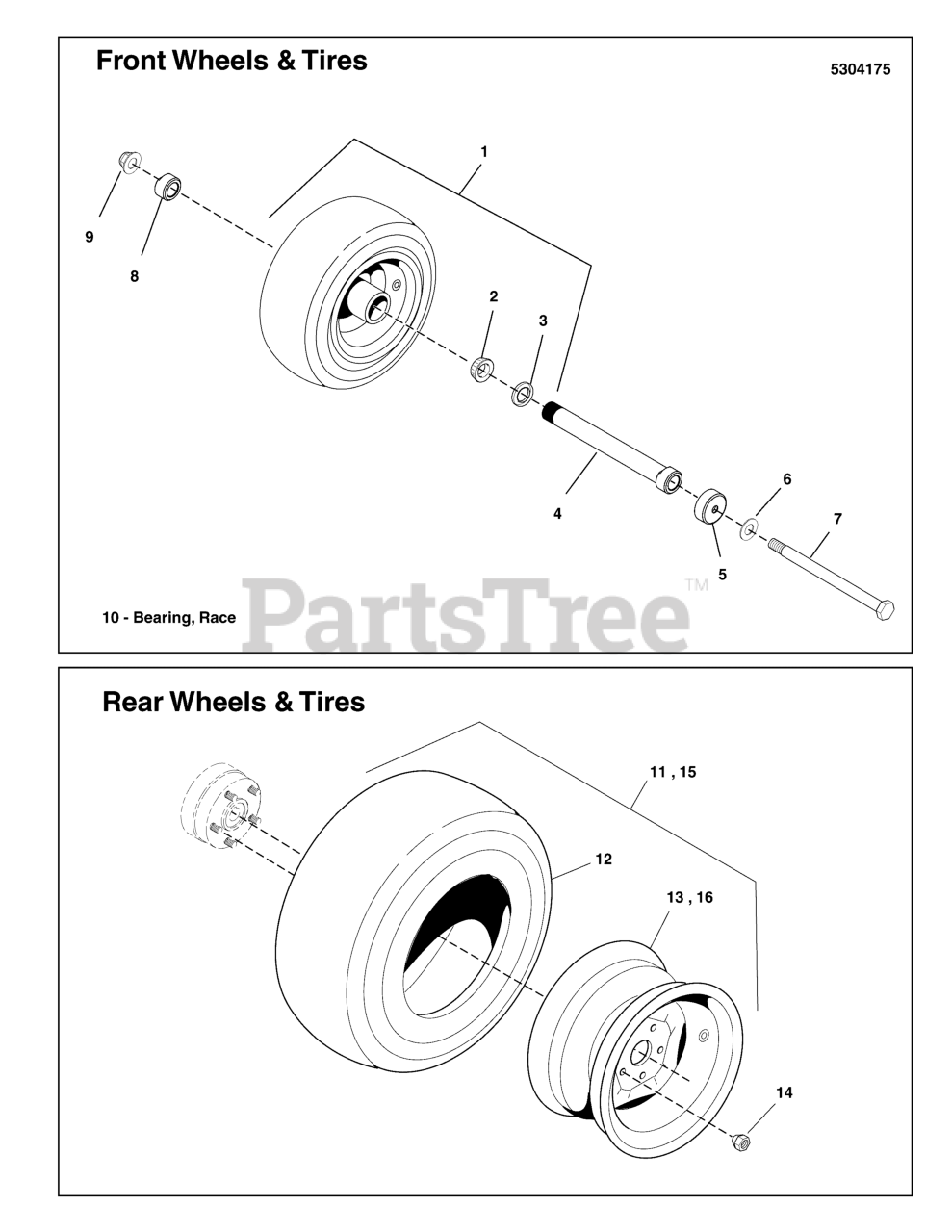

Wheel & Tire Group Parts Diagram

  • Title

1

Snapper Pro 5023280

TIRE ASSM, 13 X 5 - 6, FF / TB
(Superseded to 5023280SM)

$217.99

$

In Stock, only 2 left!

0

2

Snapper Pro 5022631SX2

BEARING, Tapered Roller
(Superseded to 5022631SX2SM)

Note: (SV - 2 per tire)

$12.99

$

In Stock, Qty 20+

0

3

Snapper Pro 5022631SX3

SEAL, GREASE
(Superseded to 5022631SX3SM)

Note: (SV - 2 per tire)

$9.99

$

In Stock, Qty 20+

0

4

Snapper Pro 5103648

BEARING ADJUSTER, SPACER, 6.062 LG
(Superseded to 5103648FS)

$21.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5103594

DEBRIS, COVER, CASTER WHEELS
(Superseded to 5103594YP)

$4.49

$

In Stock, Qty 15

0

6

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

7

Snapper Pro 5025017X64

BOLT, 1/2-13 X 8 GD5 CZ
(Superseded to 5025017X64SM)

$10.99

$

In Stock, only 1 left!

0

8

Snapper Pro 5103650

NUT, BEARING ADJUSTER, AXLE
(Superseded to 5103650YP)

$16.99

$

In Stock, Qty 14

0

9

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

10

Snapper Pro 5022631SX4

BEARING, RACE
(Superseded to 5022631SX4SM)

Note: (SV - 2 per tire)

$10.99

$

In Stock, Qty 20+

0

11

Snapper Pro 5104480

TIRE WHEEL ASM, 23X10.5-12, TURF SMART

Note: (52" Models - S/N: 4000771923 and below)

$347.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5108090

TIRE WHEEL ASM, 23X10.50-12, TURF MASTER
(Superseded to 84003894)

Note: (52" Models - S/N: 4000771924 and above)

$265.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5103920X2

TIRE, 23 X 10.5-12NHS, TURF SMART

Note: (SV - 52" & 61" Models - S/N: 4000771923 and below)

$373.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 84003895

TIRE

Note: (SV - 52" & 61" Models - S/N: 4000771924 and above)

$353.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5104480X1

WHEEL, 12 X 8.5, 5/4.5

Note: (SV - 52" Models)

$233.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0

15

Snapper Pro 5103920

TIRE ASSM, 23 X 10.5-12, TURF SMART
(Superseded to 5103920YP)

Note: (61" Models - S/N: 4000771923 and below)

$456.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5108106

TIRE WHEEL ASM, 23X10.50-12, TURF MASTER
(Superseded to 5108106FS)

Note: (61" Models - S/N: 4000771924 and above)

$320.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5103920X1

WHEEL, 12 X 8.5, 5/4.5, 1.3 OFFSET

Note: (SV - 61" Models)

$219.99

$

Usually ships in 2-12 days

0
