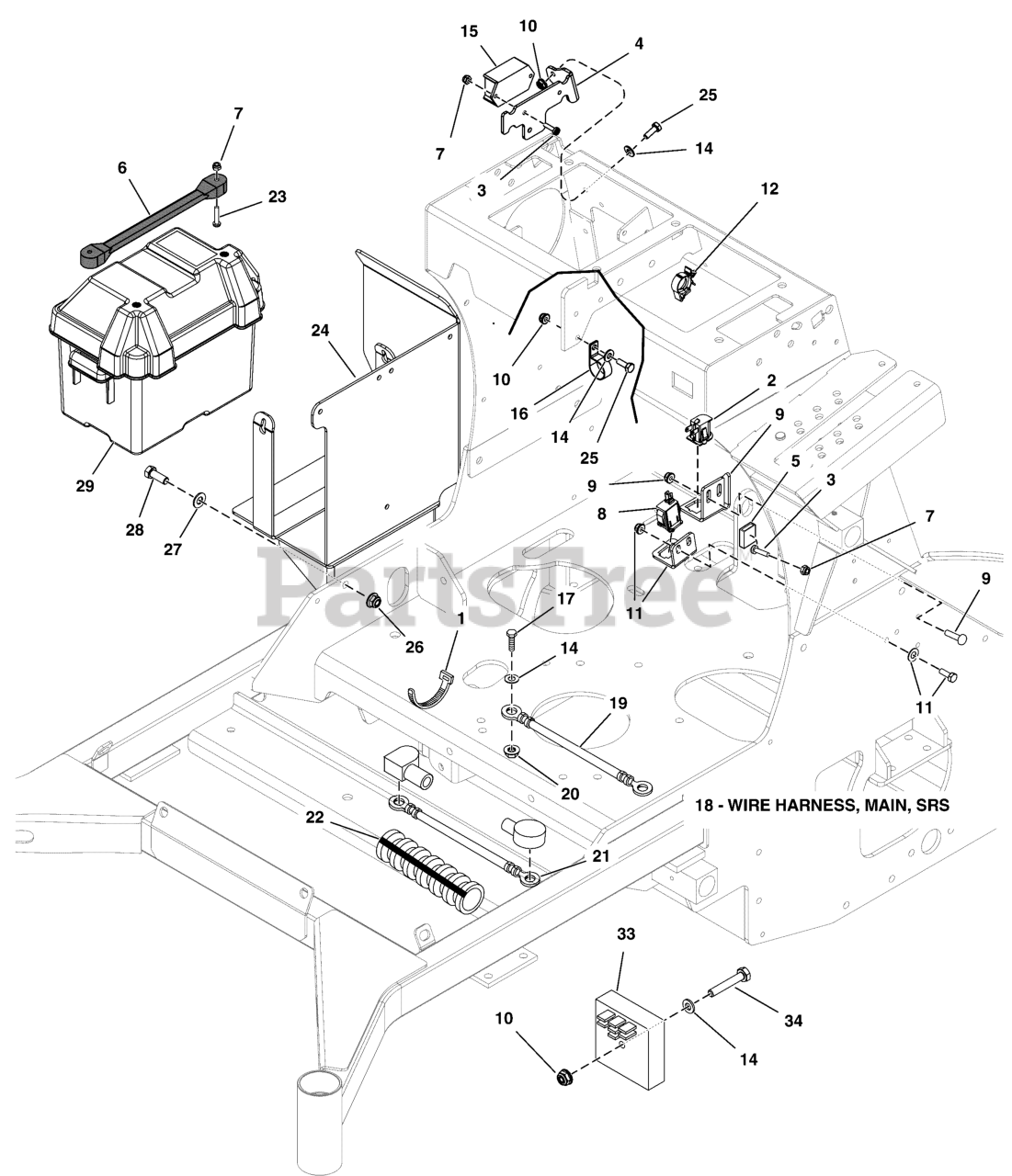

SS 200 (5901802) - Snapper Pro SS200 Series 52" Stand-On Mower, 28hp Briggs & Stratton Electrical Group Parts Diagram

SS200 Series 52" Stand-On Mower, 28hp Briggs & Stratton

Electrical Group Parts Diagram

  • Title

1

Snapper Pro 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

2

Snapper Pro 1732004

SWITCH, Push Button, NO, Black
(Superseded to 1732004SM)

$8.99

$

In Stock, Qty 20+

0

3

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5415529A

PLATE, WIRE GUIDE / TDM MOUNT - BLK

$9.99

$

Usually ships in 2-12 days

0

5

PART OF WIRE HARNESS

$

$

Not available

6

Snapper Pro 5021670

STRAP, RUBBER
(Superseded to 5021670SM)

$13.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5101589

SWITCH, PLUNGER, NO, SINGLE POLE, SNAP-IN
(Superseded to 84006599)

$12.99

$

In Stock, only 2 left!

0

9

Refer to: Operator Compartment Group

$

$

Not available

10

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

11

Refer to: Parking Brake Group

$

$

Not available

12

Snapper Pro 5104705

ROSEBUD LOOM CLIP
(Superseded to 5104705YP)

$2.49

$

Usually ships in 2-12 days

0

13

BATTERY, 11U1L, 350 CCA

$

$

Not available

14

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5104879

MODULE, TIME DELAY, NO DIODE
(Superseded to 5104879FS)

$77.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

17

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

18

Snapper Pro 5105537

HARNESS, Wiring, Stand-On ZTR
(Superseded to 5105537FS)

$195.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5021406

BATTERY CABLE, NEG, 22, 1/4-5/16
(Superseded to 5021406SM)

$16.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 5021405

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5021405SM)

$18.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5050927X19

WIRE LOOM, 3/8 ID X 19 IN
(Superseded to 5050927X19FS)

$2.99

$

In Stock, only 1 left!

0

23

Snapper Pro 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 5413617D

WELD, BATTERY BOX, STAND ON - RED
(Superseded to 5413617DFS)

$148.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

26

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

27

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

28

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

29

Snapper Pro 5100688

BATTERY BOX, W/ DRAIN HOLE
(Superseded to 5100688YP)

$65.99

$

Usually ships in 2-12 days

0
