SS 200 (5901802) - Snapper Pro SS200 Series 52" Stand-On Mower, 28hp Briggs & Stratton Decal Group - Safety & Operation Parts Diagram

SS200 Series 52" Stand-On Mower, 28hp Briggs & Stratton

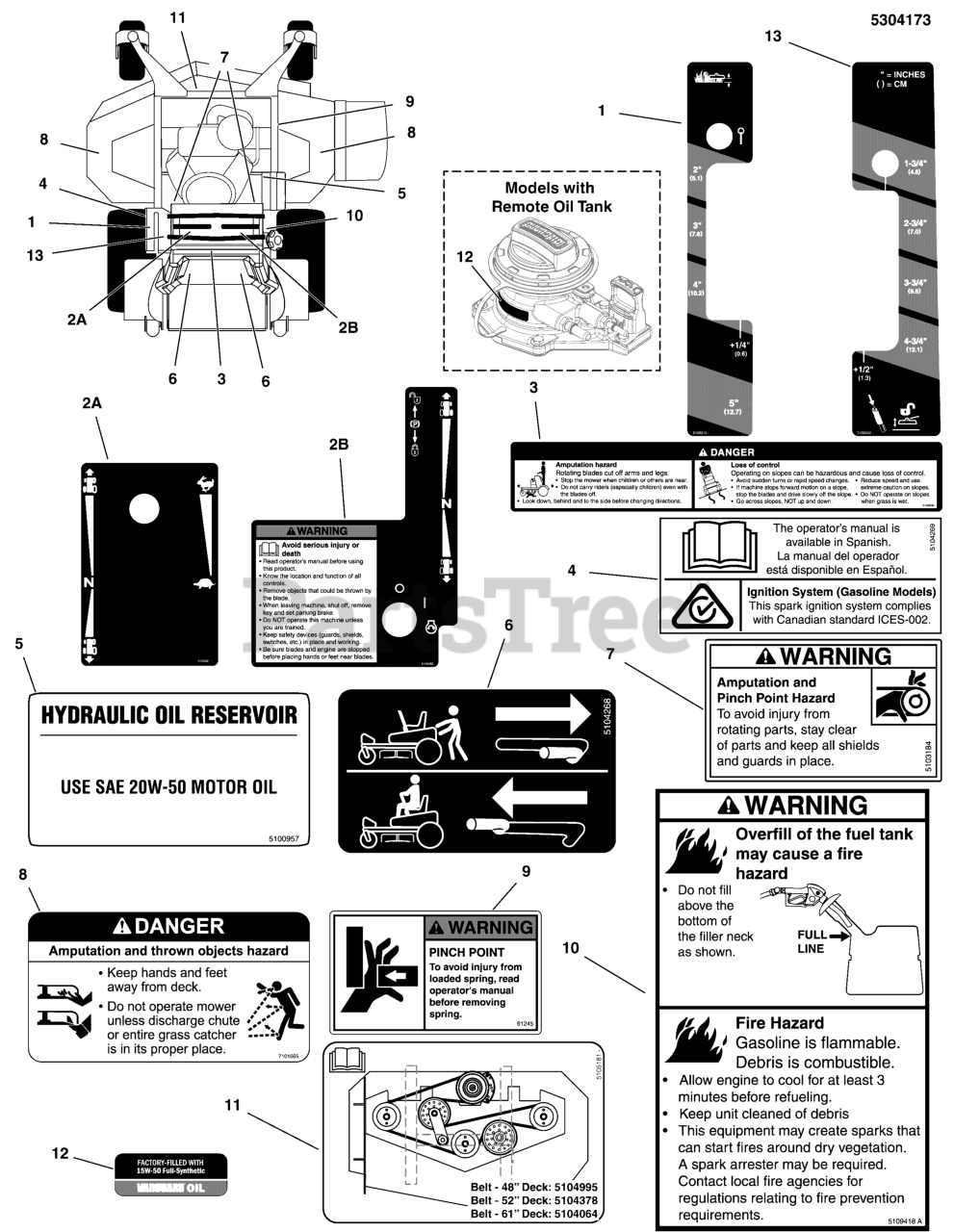

Decal Group - Safety & Operation Parts Diagram

  • Title
1

Snapper Pro 5108214

DECAL, CUT HEIGHT, SRSZ2 & Z3
(Superseded to 5108214FS)

Note: (Refer to Note: *)

$19.99

$

In Stock, only 1 left!

0

2A

Snapper Pro 5105081

DECAL, DASH PANEL, LH, CONTROLS
(Superseded to 5105081FS)

Note: (Refer to Note: **)

$19.99

$

Usually ships in 2-12 days

0

2B

Snapper Pro 5105095

DECAL, DASH PANEL, RH, WARNING/CONTROLS
(Superseded to 5105095FS)

$19.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 84008378

DECAL, Danger

$

$

Currently unavailable

4

Snapper Pro 5104269

DECAL, SPANISH MANUAL, IGES, C-TICK
(Superseded to 5104269FS)

Note: (Located on tower underneath deck lift box.)

$9.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5100957

DECAL, HYDRAULIC OIL, SAE 20W50
(Superseded to 84002270)

Note: (Located on battery box mount.)

$6.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5104268

DECAL, TRANSAXLE RELEASE, WB
(Superseded to 5104268FS)

Note: (Located by transmission release levers.)

$8.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5103184

DECAL, WARNING, HAND IN BELT, ENG ONLY
(Superseded to 5103184YP)

Note: (Located on engine deck by transmission fans.)

$13.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7101665

DECAL, DANGER DO NOT OPERATE W/O DEFLECT
(Superseded to 7101665YP)

$14.99

$

In Stock, Qty 5

0

9

Snapper Pro 5061245

DECAL, PINCH POINT
(Superseded to 5061245SM)

$11.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5109418

DECAL, WARNING, TANK OVERFILL
(Superseded to 5109418FS)

$12.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5105181

DECAL, BELT ROUTING, SRS-48-52-61
(Superseded to 5105181FS)

$7.49

$

Usually ships in 2-12 days

0

12

LABEL, OIL INFORMATION

Note: (Models w/ Remote Oil Tank Only)

$

$

Not available

13

Snapper Pro 5108042

DECAL, CUT HEIGHT, STAND ON
(Superseded to 5108042FS)

$15.99

$

In Stock, only 1 left!

0
