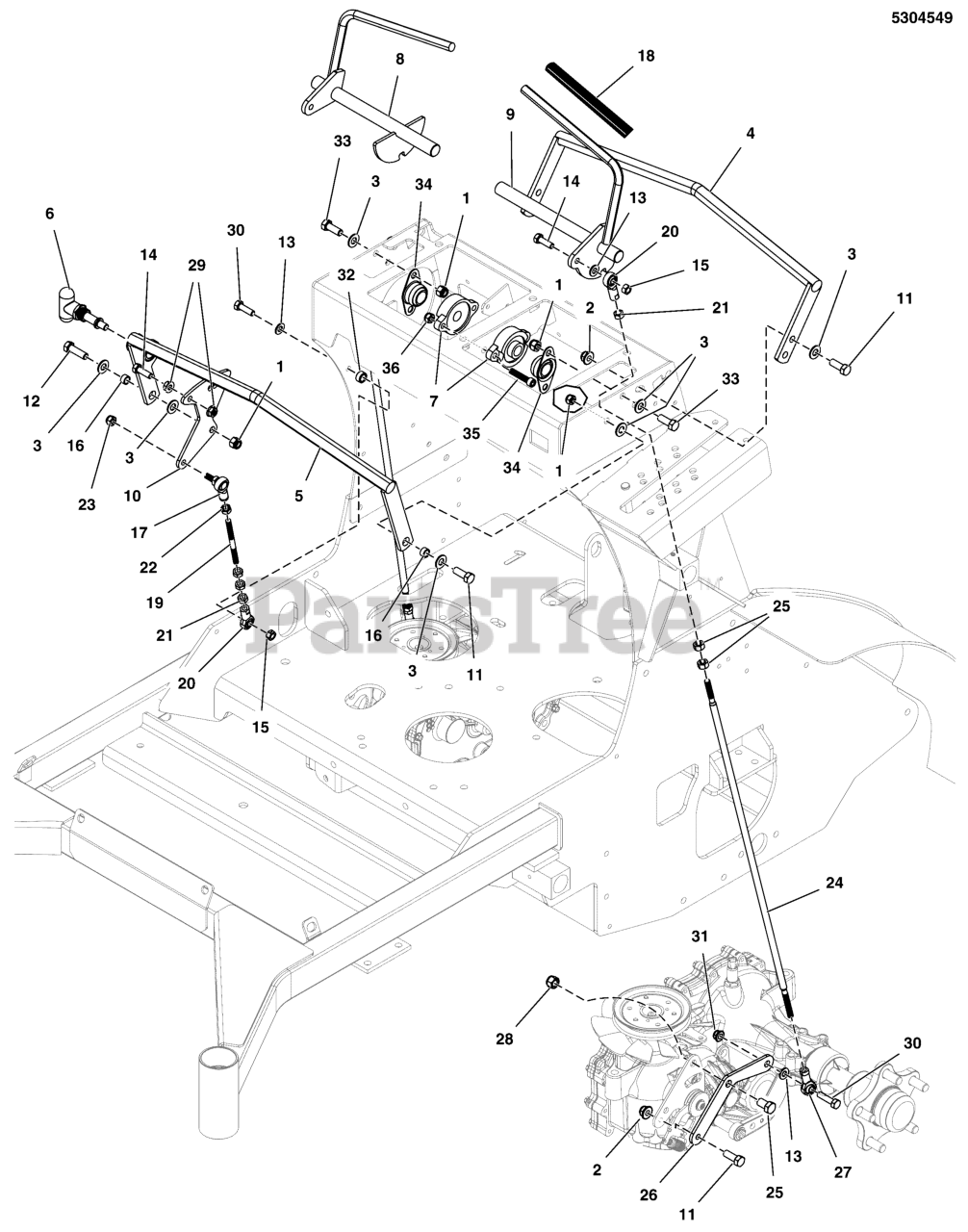

SS 100 (5901801) - Snapper Pro SS100 Series 48" Stand-On Mower, 23hp Briggs & Stratton Motion Control Group Parts Diagram

SS100 Series 48" Stand-On Mower, 23hp Briggs & Stratton

Motion Control Group Parts Diagram

  • Title

1

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

2

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

3

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5414243A

WELD, REAR HANDLE, SRSZ1 - BLK
(Superseded to 5414243AAFS)

$42.99

$

In Stock, only 2 left!

0

5

Snapper Pro 5414245A

WELD, FRONT HANDLE, SRSZ1 - BLK
(Superseded to 5414245AAFS)

$68.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5104609

PULL PIN, 3/8" DIA X 9/16" STROKE
(Superseded to 5104609FS)

$39.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5022846

BEARING-FLANGE, 5/8
(Superseded to 5022846SM)

$51.99

$

In Stock, Qty 20+

0

8

Snapper Pro 5414246A

WELD, CONTROL HANDLE, SRSZ1 RH - BLK
(Superseded to 5414246AAFS)

$43.99

$

In Stock, only 2 left!

0

9

Snapper Pro 5414247A

WELD, CONTROL HANDLE, SRSZ1 LH - BLK
(Superseded to 5414247AAFS)

$43.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5415643A

PLATE, SPEED ADJUSTMENT, SRS - BLK

$9.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

12

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

13

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

15

Snapper Pro 80003675

NUT, 5/16-18, HEX, CNTR LK,ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

16

Snapper Pro 5041930

SPACER, .38 X .50 X .27, CZ
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5104495

BALL JOINT 5/16-24 LH FEMALE W/STUD, BR
(Superseded to 5104495YP)

$22.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5100619

GRIP, FOAM, .475 X 7.75 X .095
(Superseded to 5100619FS)

$5.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5104608

ROD, 5/16-24 X 4.25, CZ
(Superseded to 5104608FS)

$6.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

21

Snapper Pro 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

24

Snapper Pro 5104551

ROD, MOTION CONTROL, STAND-ON
(Superseded to 5104551FS)

$23.99

$

In Stock, only 1 left!

0

25

Snapper Pro 5025015X6

BOLT, 7/16-14 X 3/4, GD 5 CZ
(Superseded to 5025015X6SM)

$3.99

$

In Stock, only 1 left!

0

26

Snapper Pro 5413628A

PLATE, CONTROL MOUNT - BLK

$7.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5104494

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE
(Superseded to 5104494YP)

$18.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5025044

NUT, 7/16-14 HEX TOP LOCK
(Superseded to 5025044SM)

$4.49

$

In Stock, only 1 left!

0

29

Snapper Pro 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

30

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 CZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

31

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

32

Snapper Pro 5102463

SPACER, .33 X .50 X .25, PM, CZ
(Superseded to 5102463YP)

$5.49

$

In Stock, only 4 left!

0

33

Snapper Pro 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5104885

BEARING, BRONZE, FLANGED, 5/8", FLB10
(Superseded to 5104885FS)

$14.99

$

In Stock, only 2 left!

0

35

Snapper Pro 5025618X12

SCREW, SOC HD, 5/16-18 X 1-1/2, BLK
(Superseded to 5025618X12FS)

$2.49

$

Usually ships in 2-12 days

0

36

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0
