SS 100 (5901801) - Snapper Pro SS100 Series 48" Stand-On Mower, 23hp Briggs & Stratton Main Frame & Front Casters Group Parts Diagram

SS100 Series 48" Stand-On Mower, 23hp Briggs & Stratton

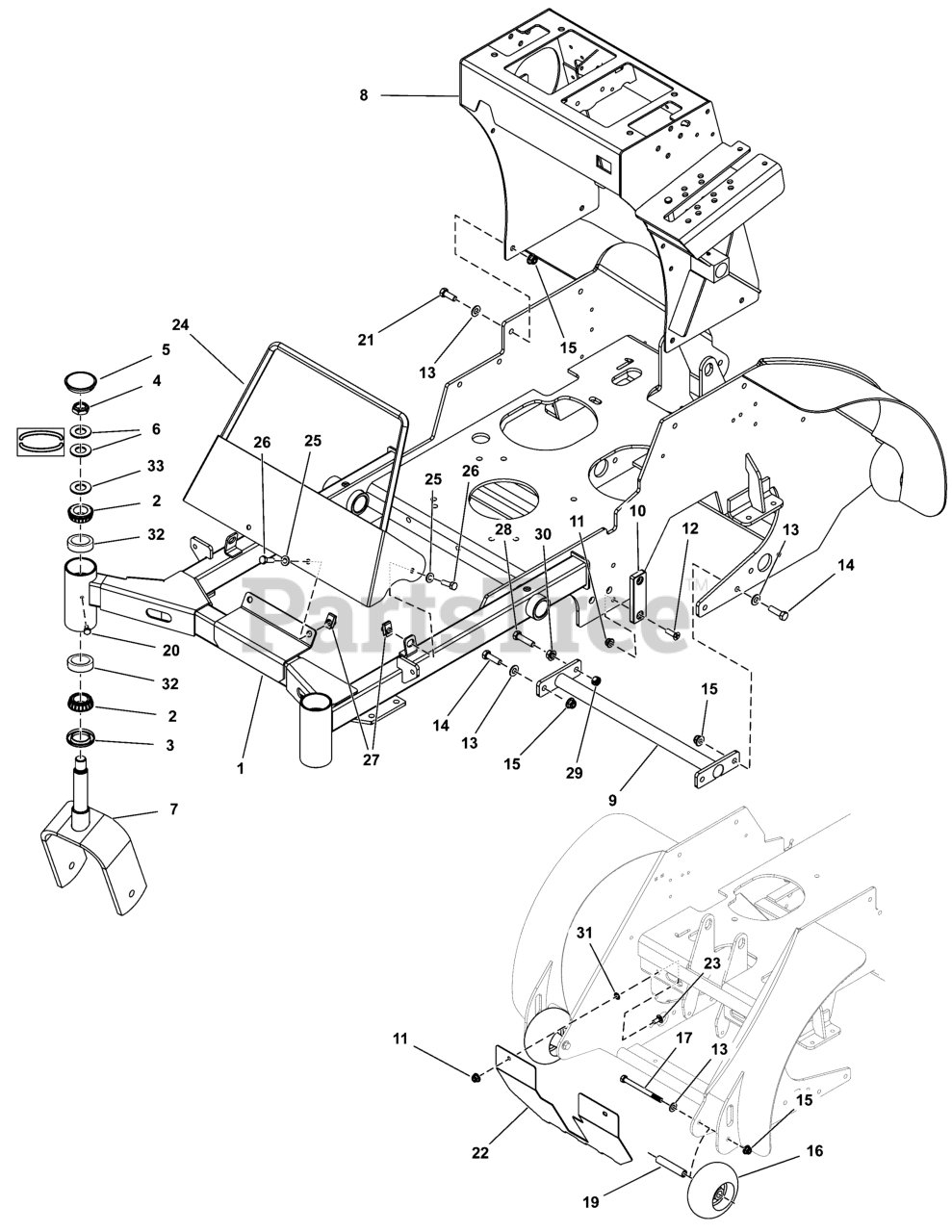

Main Frame & Front Casters Group Parts Diagram

  • Title

1

FRAME

Note: (Refer to Note: *)

$

$

Not available

2

Snapper Pro 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$26.99

$

In Stock, Qty 20+

0

3

Snapper Pro 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.99

$

In Stock, Qty 14

0

4

Snapper Pro 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 7

0

5

Snapper Pro 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$8.49

$

In Stock, Qty 16

0

6

Snapper Pro 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

In Stock, Qty 19

0

7

Snapper Pro 5402539B

WELD, CASTER YOKE - RED
(Superseded to 5402539BFS)

$213.99

$

In Stock, only 1 left!

0

8

Snapper Pro 5414222D

WELD, CONTROL TOWER, SRSZ1
(Superseded to 5414222DFS)

$615.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5414237A

WELD, CENTER CROSS BRACE, SRSZ1 - BLK

$53.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5102702

PAD, FRICTION, .375 X 1.25 X 4.00
(Superseded to 5102702YP)

$6.99

$

In Stock, only 2 left!

0

11

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025594

SCREW, 5/16-18 X 1, PHILLIPS HD, BZ
(Superseded to 5025594YP)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$4.49

$

In Stock, only 4 left!

0

15

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

16

Snapper Pro 5105521

WHEEL, ANTI SCALP, 5"
(Superseded to 5105521FS)

$13.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025013X36

BOLT, 3/8-16 X 4-1/2" GD5 CZ
(Superseded to 5025013X36YP)

$5.99

$

In Stock, only 2 left!

0

19

Snapper Pro 5105554

SPACER, .38 X .63 X 3.38, CZ
(Superseded to 5105554YP)

$5.49

$

In Stock, only 3 left!

0

20

Snapper Pro 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

In Stock, only 2 left!

0

21

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 2 left!

0

22

Snapper Pro 5415049D

PLATE, HEAT SHIELD, SRSZ1
(Superseded to 5415049DFS)

$33.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

24

Snapper Pro 5415217D

WELD, FRONT FRAME GUARD, SRSZ1
(Superseded to 5415217DFS)

$103.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

26

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

27

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 1 left!

0

28

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5025100

NUT, Hex, Side Lock, 3/8-16
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 12

0

30

Snapper Pro 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 17

0

31

Snapper Pro 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5020883

CUP, BEARING (SV)

Note: (Service Part for frame)

$8.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$4.49

$

In Stock, only 2 left!

0
