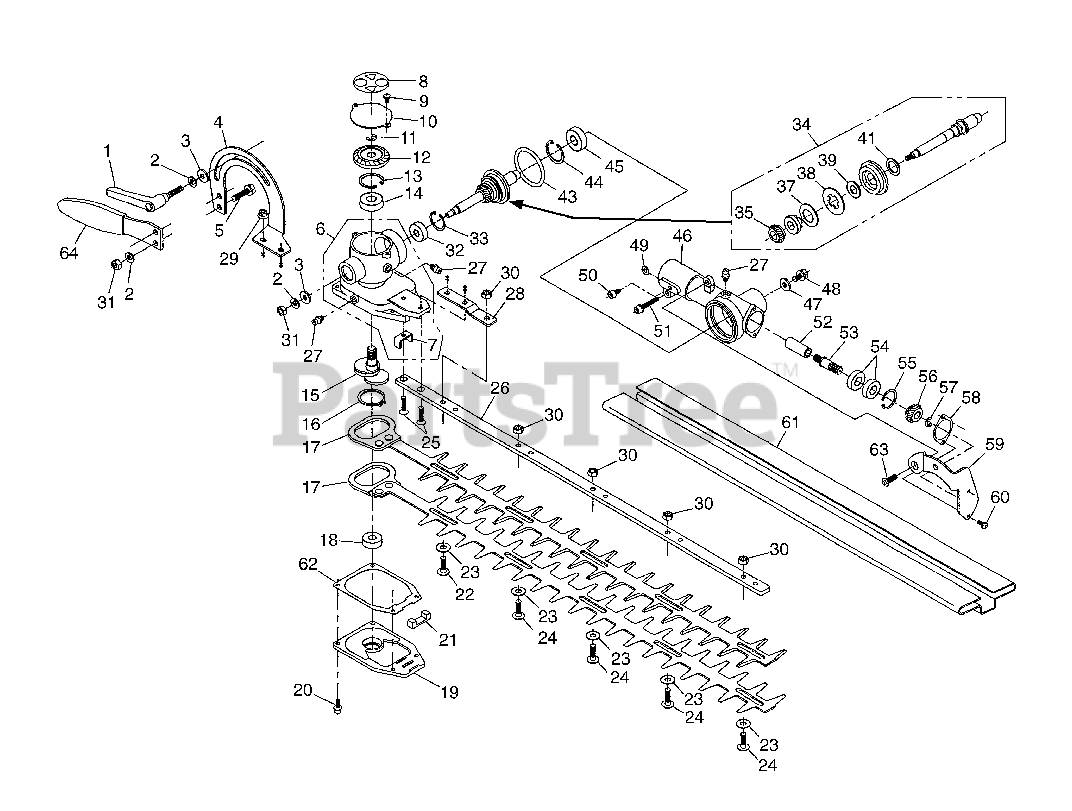

SRTZ 2460 - RedMax Short Reach Hedge Trimmer (SN: 00100101 & Above) (2012-08) CUTTING EQUIPMENT Parts Diagram

Short Reach Hedge Trimmer

CUTTING EQUIPMENT Parts Diagram

  • Title

1

RedMax 510972601

CLAMP LEVER M6X16MM

$34.99

$

In Stock, only 2 left!

0

2

RedMax 510488001

WASHER

$3.49

$

In Stock, only 3 left!

0

3

RedMax 515698601

WASHER

$4.99

$

In Stock, only 3 left!

0

4

RedMax 510972701

ANGLE ADJUSTER

$51.99

$

Usually ships in 3-10 days

0

5

RedMax 510454601

BOLT

$3.49

$

Usually ships in 3-10 days

0

6

RedMax 515696801

CASE(A) SET
(Superseded to 587862801)

$148.99

$

In Stock, only 1 left!

0

7

RedMax 515697101

PLATE

$6.99

$

In Stock, only 1 left!

0

8

RedMax 515697201

LABEL

$4.99

$

Usually ships in 3-10 days

0

9

RedMax 510474901

SCREW

$4.99

$

Usually ships in 3-10 days

0

10

RedMax 515684501

COVER(A)

$4.99

$

Usually ships in 3-10 days

0

11

RedMax 515684601

RING

$4.99

$

In Stock, only 1 left!

0

12

RedMax 515697301

GEAR

$43.99

$

Usually ships in 3-10 days

0

13

RedMax 516125501

RING,SNAP M26x1.2 RP-318013340

$4.99

$

In Stock, only 2 left!

0

14

RedMax 516131201

BEARING

$18.99

$

Usually ships in 3-10 days

0

15

RedMax 515697401

CRANKSHAFT

$102.99

$

In Stock, only 1 left!

0

16

RedMax 516124801

RING, SNAP, M28 x 1.5

$3.49

$

In Stock, Qty 6

0

17

RedMax 576261801

BLADE

$121.99

$

In Stock, only 2 left!

0

18

RedMax 515697801

BEARING
(Superseded to 516130201)

$18.99

$

Usually ships in 3-10 days

0

19

RedMax 515698001

COVER

$26.99

$

In Stock, only 1 left!

0

20

RedMax 521536101

BOLT

$4.99

$

In Stock, Qty 10

0

21

RedMax 515698201

FELT

$4.99

$

In Stock, Qty 5

0

22

RedMax 521297501

SCREW(R3873,388411750&11770

$4.99

$

In Stock, only 3 left!

0

23

RedMax 515232001

WASHER

$4.99

$

In Stock, only 3 left!

0

24

RedMax 515685201

SCREW.L17

$5.99

$

In Stock, Qty 5

0

25

RedMax 515685401

SCREW.5X20

$4.99

$

In Stock, only 2 left!

0

26

RedMax 576261901

GUIDE PLATE

$87.99

$

Usually ships in 3-10 days

0

27

RedMax 505171501

FITTING

$6.49

$

In Stock, only 3 left!

0

28

RedMax 515698501

PLATE

$5.99

$

In Stock, Qty 5

0

29

RedMax 505182601

NUT

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 515232101

NUT

$4.99

$

In Stock, only 3 left!

0

31

RedMax 510486101

NUT

$3.49

$

In Stock, Qty 5

0

32

RedMax 515684901

BEARING

$17.99

$

Usually ships in 3-10 days

0

33

RedMax 516125301

RING, SNAP, M22 x 1.2

$4.99

$

Usually ships in 3-10 days

0

34

RedMax 521830201

KIT,SHAFT(R678213600,10,13340)

$136.99

$

Usually ships in 3-10 days

0

35

RedMax 521830401

GEAR (C)

$31.99

$

In Stock, only 2 left!

0

37

RedMax 521830501

WASHER, SPRING

$5.99

$

Usually ships in 3-10 days

0

38

RedMax 521830601

PLATE

$5.99

$

Usually ships in 3-10 days

0

39

RedMax 521830701

WASHER

$4.99

$

Usually ships in 3-10 days

0

41

RedMax 521830801

WASHER

$

$

Not available

43

RedMax 515685801

O-RING

$4.99

$

Usually ships in 3-10 days

0

44

RedMax 516125501

RING,SNAP M26x1.2 RP-318013340

$4.99

$

In Stock, only 2 left!

0

45

RedMax 516131201

BEARING

$18.99

$

Usually ships in 3-10 days

0

46

RedMax 510972101

CASE (B)

$136.99

$

Usually ships in 3-10 days

0

47

RedMax 515698601

WASHER

$4.99

$

In Stock, only 3 left!

0

48

RedMax 516066601

BOLT M6x12 (RPLS 022510612)

$3.49

$

Usually ships in 3-10 days

0

49

RedMax 515698801

WASHER

$2.49

$

In Stock, only 4 left!

0

50

RedMax 510972301

BOLT M5X10

$6.49

$

In Stock, only 1 left!

0

51

RedMax 510972401

BOLT M5X30

$5.99

$

In Stock, only 1 left!

0

52

RedMax 515698901

JOINT

$20.99

$

In Stock, only 1 left!

0

53

RedMax 515686101

GEARSHAFT(B)

$56.99

$

In Stock, only 1 left!

0

54

RedMax 515699001

BEARING

$26.99

$

Usually ships in 3-10 days

0

55

RedMax 516125301

RING, SNAP, M22 x 1.2

$4.99

$

Usually ships in 3-10 days

0

56

RedMax 515699101

GEAR

$28.99

$

In Stock, only 1 left!

0

57

RedMax 515684601

RING

$4.99

$

In Stock, only 1 left!

0

58

RedMax 515686401

GASKET

$7.99

$

Usually ships in 3-10 days

0

59

RedMax 510973501

PLATE

$34.99

$

Usually ships in 3-10 days

0

60

RedMax 510475001

SCREW

$4.99

$

In Stock, only 4 left!

0

61

RedMax 576262001

COVER
(Superseded to 515699201)

$6.99

$

In Stock, only 2 left!

0

62

RedMax 515698301

GASKET

$5.99

$

In Stock, Qty 6

0

63

RedMax 510972501

SCREW

$5.99

$

In Stock, only 2 left!

0

64

RedMax 510972801

HANDLE

$22.99

$

In Stock, only 1 left!

0
