SRTZ 2460 - RedMax Short Reach Hedge Trimmer (SN: 00100101 & Above) (2010-04) 002 - CUTTING UNIT Parts Diagram

Short Reach Hedge Trimmer

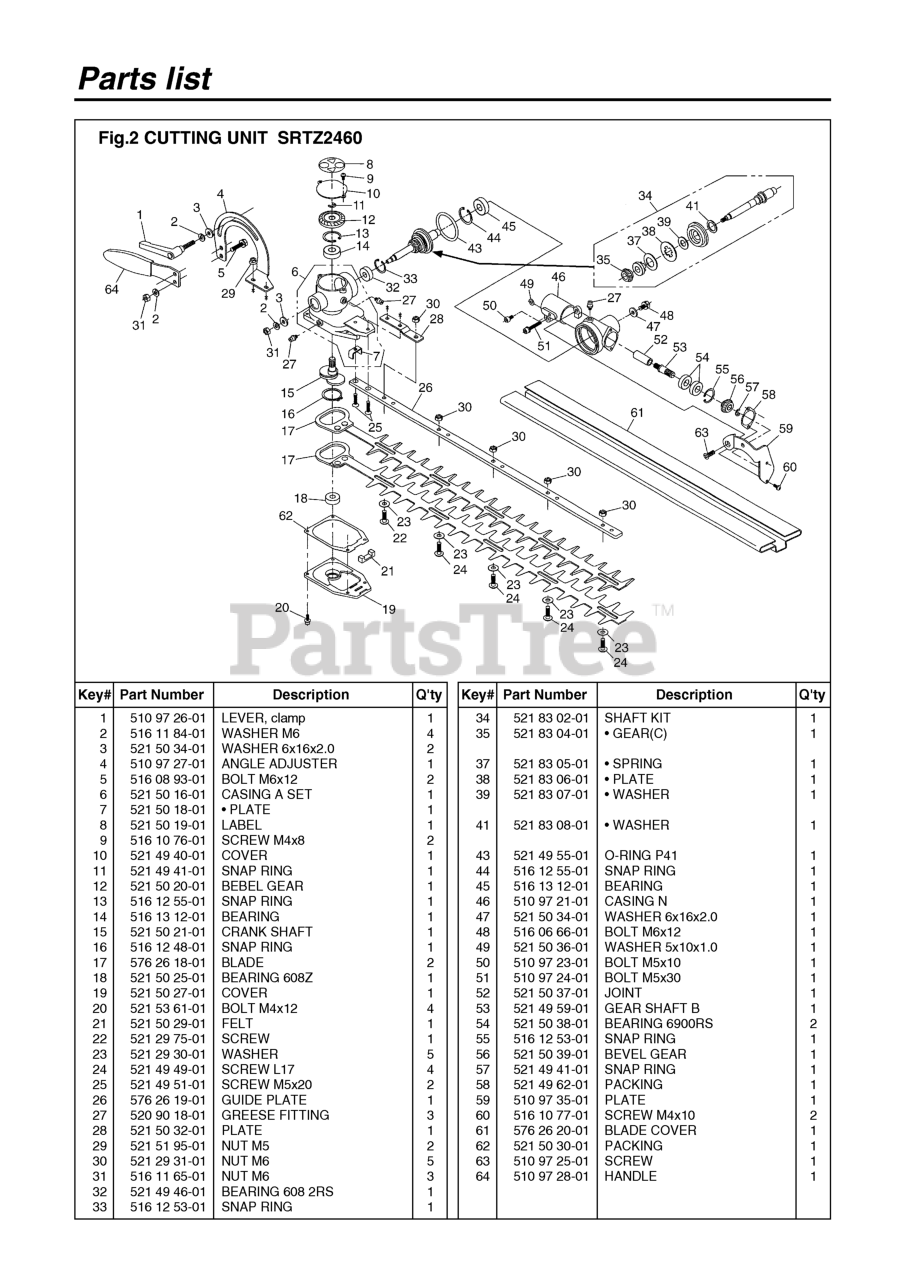

002 - CUTTING UNIT Parts Diagram

  • Title
1

RedMax 510972601

CLAMP LEVER

$34.99

$

Usually ships in 3-10 days

0

2

RedMax 516118401

WASHER, M6 x 15
(Superseded to 510488001)

$3.49

$

In Stock, only 3 left!

0

3

RedMax 521503401

WASHER,6x15x2.0(
(Superseded to 515698601)

$4.99

$

In Stock, only 2 left!

0

4

RedMax 510972701

ANGLE ADJUSTER

$51.99

$

Usually ships in 3-10 days

0

5

RedMax 516089301

BOLT
(Superseded to 510454601)

$3.49

$

Usually ships in 3-10 days

0

6

RedMax 521501601

CASE (A) SET RPL
(Superseded to 515696801)

$148.99

$

In Stock, only 1 left!

0

7

RedMax 521501801

PLATE
(Superseded to 515697101)

$6.99

$

In Stock, only 1 left!

0

8

RedMax 521501901

LABEL
(Superseded to 515697201)

$4.99

$

Usually ships in 3-10 days

0

9

RedMax 516107601

SCREW, M4 x 8
(Superseded to 510474901)

$4.99

$

Usually ships in 3-10 days

0

10

RedMax 521494001

COVER
(Superseded to 515684501)

$4.99

$

Usually ships in 3-10 days

0

11

RedMax 521494101

RING, SNAP
(Superseded to 515684601)

$4.99

$

In Stock, only 1 left!

0

12

RedMax 521502001

GEAR, BEVEL
(Superseded to 515697301)

$43.99

$

Usually ships in 3-10 days

0

13

RedMax 516125501

RING,SNAP M26x1.

$4.99

$

In Stock, only 2 left!

0

14

$18.99

$

Usually ships in 3-10 days

0

15

RedMax 521502101

CRANKSHAFT
(Superseded to 515697401)

$102.99

$

In Stock, only 1 left!

0

16

RedMax 516124801

RING, SNAP, M28

$3.49

$

In Stock, Qty 6

0

17

$121.99

$

In Stock, only 2 left!

0

18

RedMax 521502501

BEARING
(Superseded to 516130201)

$18.99

$

Usually ships in 3-10 days

0

19

RedMax 521502701

COVER
(Superseded to 515698001)

$26.99

$

In Stock, only 1 left!

0

$4.99

$

In Stock, Qty 10

0

21

RedMax 521502901

FELT
(Superseded to 515698201)

$4.99

$

In Stock, Qty 5

0

22

RedMax 521297501

SCREW(R3873,3884

$4.99

$

In Stock, only 3 left!

0

23

RedMax 521293001

WASHER RPL 38731
(Superseded to 515232001)

$4.99

$

In Stock, only 3 left!

0

24

RedMax 521494901

SCREW
(Superseded to 515685201)

$5.99

$

In Stock, Qty 5

0

25

RedMax 521495101

SCREW, M5 x 20
(Superseded to 515685401)

$4.99

$

In Stock, only 2 left!

0

26

RedMax 576261901

GUIDE PLATE

$87.99

$

Usually ships in 3-10 days

0

27

RedMax 520901801

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

28

RedMax 521503201

PLATE (RPLS 6780
(Superseded to 515698501)

$5.99

$

In Stock, Qty 5

0

$

$

Not available

30

RedMax 521293101

NUT, M6
(Superseded to 515232101)

$4.99

$

In Stock, only 3 left!

0

31

RedMax 516116501

NUT, M6 x 5 (RPL
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

32

RedMax 521494601

BEARING
(Superseded to 515684901)

$17.99

$

Usually ships in 3-10 days

0

33

RedMax 516125301

RING, SNAP, M22

$4.99

$

Usually ships in 3-10 days

0

34

RedMax 521830201

KIT,SHAFT(R67821

$136.99

$

Usually ships in 3-10 days

0

35

RedMax 521830401

GEAR (C)

$31.99

$

In Stock, only 1 left!

0

37

RedMax 521830501

WASHER, SPRING

$5.99

$

Usually ships in 3-10 days

0

38

$5.99

$

Usually ships in 3-10 days

0

39

$4.99

$

Usually ships in 3-10 days

0

41

$

$

Not available

43

RedMax 521495501

O-RING
(Superseded to 515685801)

$4.99

$

Usually ships in 3-10 days

0

44

RedMax 516125501

RING,SNAP M26x1.

$4.99

$

In Stock, only 2 left!

0

45

$18.99

$

Usually ships in 3-10 days

0

46

RedMax 510972101

CASE (B)

$136.99

$

Usually ships in 3-10 days

0

47

RedMax 521503401

WASHER,6x15x2.0(
(Superseded to 515698601)

$4.99

$

In Stock, only 2 left!

0

48

RedMax 516066601

BOLT M6x12 (RPLS

$3.49

$

Usually ships in 3-10 days

0

49

$2.49

$

In Stock, only 4 left!

0

50

RedMax 510972301

BOLT M5X10

$6.49

$

In Stock, only 1 left!

0

51

RedMax 510972401

BOLT M5X30

$5.99

$

In Stock, only 1 left!

0

52

RedMax 521503701

JOINT (RPLS T307
(Superseded to 515698901)

$20.99

$

In Stock, only 1 left!

0

53

RedMax 521495901

SHAFT, GEAR
(Superseded to 515686101)

$56.99

$

In Stock, only 1 left!

0

54

RedMax 521503801

BEARING
(Superseded to 515699001)

$26.99

$

Usually ships in 3-10 days

0

55

RedMax 516125301

RING, SNAP, M22

$4.99

$

Usually ships in 3-10 days

0

56

RedMax 521503901

GEAR, BEVEL
(Superseded to 515699101)

$28.99

$

In Stock, only 1 left!

0

57

RedMax 521494101

RING, SNAP
(Superseded to 515684601)

$4.99

$

In Stock, only 1 left!

0

58

RedMax 521496201

PACKING
(Superseded to 515686401)

$7.99

$

Usually ships in 3-10 days

0

59

$34.99

$

Usually ships in 3-10 days

0

60

RedMax 516107701

SCREW, M4 x 10 (
(Superseded to 510475001)

$4.99

$

In Stock, only 4 left!

0

61

RedMax 576262001

BLADE COVER
(Superseded to 515699201)

$6.99

$

In Stock, only 2 left!

0

62

RedMax 521503001

GASKET
(Superseded to 515698301)

$5.99

$

In Stock, Qty 6

0

63

$5.99

$

In Stock, only 2 left!

0

64

$22.99

$

In Stock, only 1 left!

0
