SRTZ 2401 - RedMax Short Reach Hedge Trimmer (SN: 60100101 & Above) (2007-04) 003 - CUTTING UNIT Parts Diagram

Short Reach Hedge Trimmer

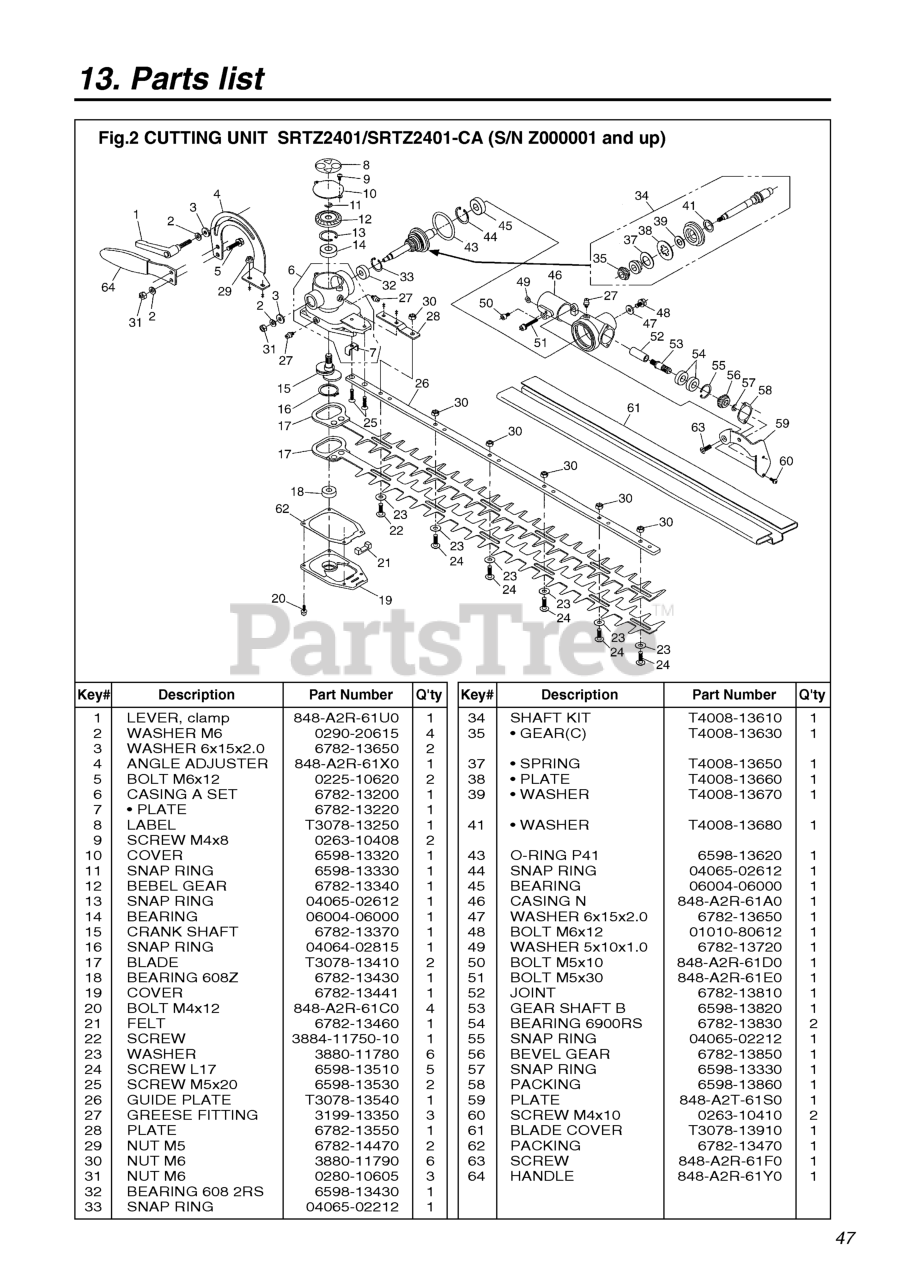

003 - CUTTING UNIT Parts Diagram

  • Title

1

RedMax 848A2R61U0

LEVER, CLAMP
(Superseded to 510972601)

$34.99

$

Usually ships in 3-10 days

0

2

RedMax 029020615

WASHER M6

$0.17

$

Usually ships in 3-10 days

0

3

RedMax 678213650

WASHER, 6X15X2.0
(Superseded to 515698601)

$4.99

$

In Stock, only 2 left!

0

4

RedMax 848A2R61X0

ANGLE ADJUSTER
(Superseded to 510972701)

$51.99

$

Usually ships in 3-10 days

0

5

RedMax 022510620

BOLT M6X12
(Superseded to 516089301)

$3.49

$

Usually ships in 3-10 days

0

6

RedMax 678213200

CASING A SET
(Superseded to 521501601)

$148.99

$

In Stock, only 1 left!

0

7

RedMax 678213220

PLATE
(Superseded to 515697101)

$6.99

$

In Stock, only 1 left!

0

8

RedMax T307813250

LABEL
(Superseded to 521811901)

$

$

Not available

9

RedMax 026310408

SCREW, M4 X 8
(Superseded to 516108701)

$

$

Not available

10

RedMax 659813320

COVER

$2.88

$

Usually ships in 3-10 days

0

11

RedMax 659813330

SNAP RING
(Superseded to 515684601)

$4.99

$

In Stock, only 1 left!

0

12

RedMax 678213340

BEVEL GEAR
(Superseded to 515697301)

$43.99

$

Usually ships in 3-10 days

0

13

RedMax 0406502612

SNAP RING
(Superseded to 516125501)

$4.99

$

In Stock, only 2 left!

0

14

RedMax 0600406000

BEARING
(Superseded to 516131201)

$18.99

$

Usually ships in 3-10 days

0

15

RedMax 678213370

CRANKSHAFT
(Superseded to 515697401)

$102.99

$

In Stock, only 1 left!

0

16

RedMax 0406402815

SNAP RING
(Superseded to 516124801)

$3.49

$

In Stock, Qty 6

0

17

RedMax T307813410

BLADE
(Superseded to 521812001)

$157.99

$

In Stock, only 1 left!

0

18

RedMax 678213430

BEARING
(Superseded to 516130201)

$18.99

$

Usually ships in 3-10 days

0

19

RedMax 678213441

COVER
(Superseded to 515698001)

$26.99

$

In Stock, only 1 left!

0

20

RedMax 848A2R61C0

BOLT M4X12
(Superseded to 521536101)

$4.99

$

In Stock, Qty 10

0

21

RedMax 678213460

FELT
(Superseded to 521502901)

$4.99

$

In Stock, Qty 5

0

22

RedMax 38841175010

SCREW

$

$

Not available

23

RedMax 388011780

WASHER
(Superseded to 515232001)

$4.99

$

In Stock, only 3 left!

0

24

RedMax 659813510

SCREW
(Superseded to 515685201)

$5.99

$

In Stock, Qty 5

0

25

RedMax 659813530

SCREW
(Superseded to 515685401)

$4.99

$

In Stock, only 2 left!

0

26

RedMax T307813540

GUIDE PLATE
(Superseded to 521812101)

$28.99

$

In Stock, Qty 14

0

27

RedMax 319913350

GREASE FITTING
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

28

RedMax 678213550

PLATE
(Superseded to 515698501)

$5.99

$

In Stock, Qty 5

0

29

RedMax 678214470

NUT, M5
(Superseded to 505182601)

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 388011790

NUT
(Superseded to 515232101)

$4.99

$

In Stock, only 3 left!

0

31

RedMax 028010605

NUT M6
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

32

RedMax 659813430

BEARING
(Superseded to 515684901)

$17.99

$

Usually ships in 3-10 days

0

33

RedMax 0406502212

SNAP RING

$0.43

$

Usually ships in 3-10 days

0

34

RedMax T400813610

SHAFT KIT

$

$

Not available

35

RedMax T400813630

GEAR (C)
(Superseded to 521830401)

$31.99

$

In Stock, only 1 left!

0

37

RedMax T400813650

SPRING
(Superseded to 521830501)

$5.99

$

Usually ships in 3-10 days

0

38

RedMax T400813660

PLATE
(Superseded to 521830601)

$5.99

$

Usually ships in 3-10 days

0

39

RedMax T400813670

WASHER
(Superseded to 521830701)

$4.99

$

Usually ships in 3-10 days

0

41

RedMax T400813680

WASHER
(Superseded to 521830801)

$

$

Not available

43

RedMax 659813620

O-RING
(Superseded to 515685801)

$4.99

$

Usually ships in 3-10 days

0

44

RedMax 0406502612

SNAP RING
(Superseded to 516125501)

$4.99

$

In Stock, only 2 left!

0

45

RedMax 0600406000

BEARING
(Superseded to 516131201)

$18.99

$

Usually ships in 3-10 days

0

46

RedMax 848A2R61A0

CASING N
(Superseded to 510972101)

$136.99

$

Usually ships in 3-10 days

0

47

RedMax 678213650

WASHER, 6X15X2.0
(Superseded to 515698601)

$4.99

$

In Stock, only 2 left!

0

48

RedMax 0101080612

BOLT M6X12
(Superseded to 516066601)

$3.49

$

Usually ships in 3-10 days

0

49

RedMax 678213720

WASHER 5X10X1.0
(Superseded to 515698801)

$2.49

$

In Stock, only 4 left!

0

50

RedMax 848A2R61D0

BOLT M5X10
(Superseded to 510972301)

$6.49

$

In Stock, only 1 left!

0

51

RedMax 848A2R61E0

BOLT M5X30
(Superseded to 510972401)

$5.99

$

In Stock, only 1 left!

0

52

RedMax 678213810

JOINT
(Superseded to 515698901)

$20.99

$

In Stock, only 1 left!

0

53

RedMax 659813820

GEAR SHAFT B
(Superseded to 515686101)

$56.99

$

In Stock, only 1 left!

0

54

RedMax 678213830

BEARING
(Superseded to 515699001)

$26.99

$

Usually ships in 3-10 days

0

55

RedMax 0406502212

SNAP RING

$0.43

$

Usually ships in 3-10 days

0

56

RedMax 678213850

BEVEL GEAR
(Superseded to 515699101)

$28.99

$

In Stock, only 1 left!

0

57

RedMax 659813330

SNAP RING
(Superseded to 515684601)

$4.99

$

In Stock, only 1 left!

0

58

RedMax 659813860

PACKING
(Superseded to 515686401)

$7.99

$

Usually ships in 3-10 days

0

59

RedMax 848A2T61S0

PLATE
(Superseded to 510973501)

$34.99

$

Usually ships in 3-10 days

0

60

RedMax 026310410

SCREW, M4 X 10
(Superseded to 510475001)

$4.99

$

In Stock, only 4 left!

0

61

RedMax T307813910

BLADE COVER
(Superseded to 521812201)

$14.99

$

In Stock, only 1 left!

0

62

RedMax 678213470

PACKING
(Superseded to 515698301)

$5.99

$

In Stock, Qty 6

0

63

RedMax 848A2R61F0

SCREW
(Superseded to 510972501)

$5.99

$

In Stock, only 2 left!

0

64

RedMax 848A2R61Y0

HANDLE
(Superseded to 510972801)

$22.99

$

In Stock, only 1 left!

0
