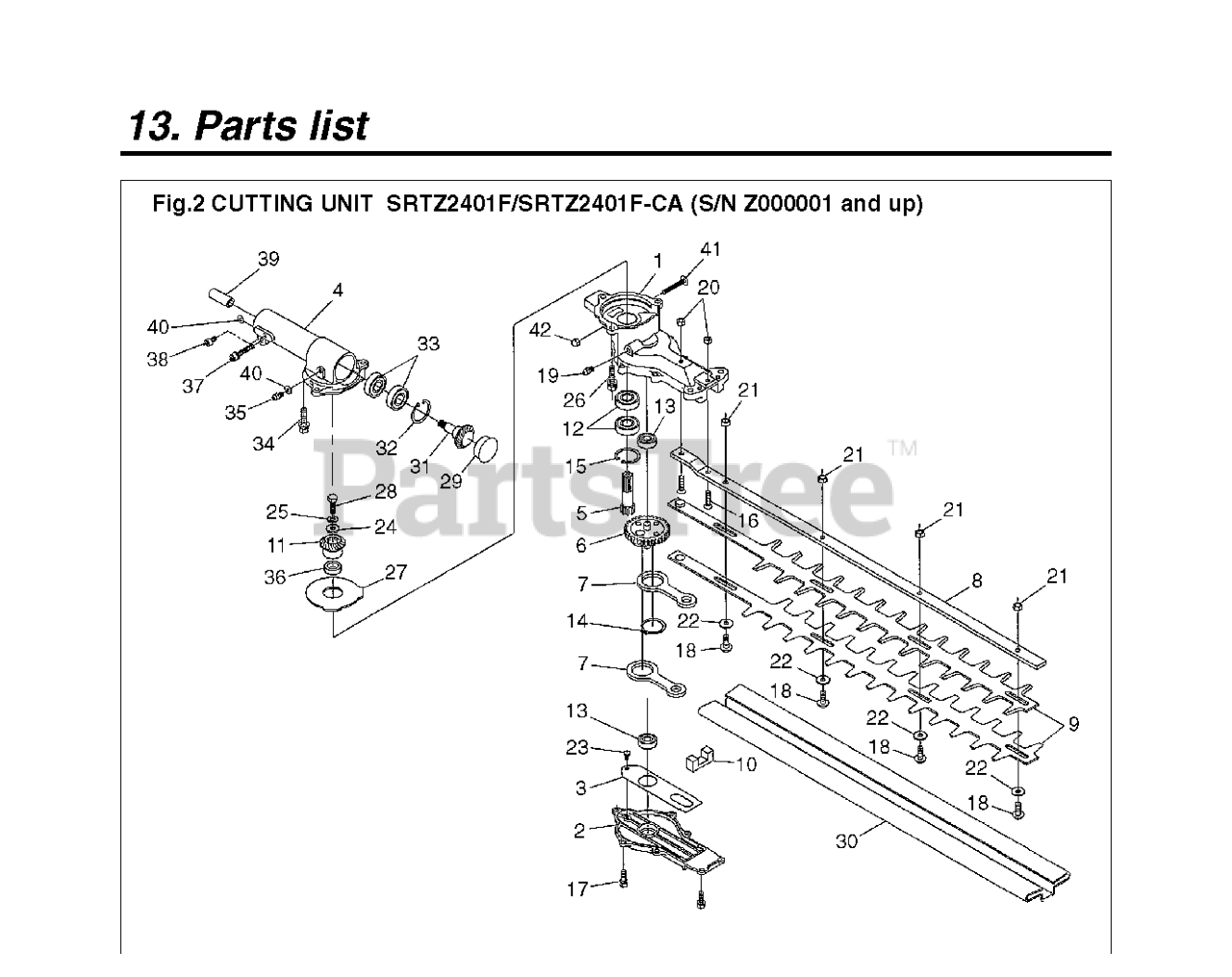

SRTZ 2401 F - RedMax Short Reach Hedge Trimmer (SN: 60100101 & Above) CUTTING EQUIPMENT Parts Diagram

Short Reach Hedge Trimmer

CUTTING EQUIPMENT Parts Diagram

  • Title

1

RedMax 510974101

CASING A

$133.99

$

In Stock, only 3 left!

0

2

RedMax 510974201

COVER

$39.99

$

In Stock, only 2 left!

0

3

RedMax 510974301

PLATE

$24.99

$

Usually ships in 3-10 days

0

4

RedMax 510973901

$

$

Not available

5

RedMax 510974401

PINION GEAR

$74.99

$

Usually ships in 3-10 days

0

6

RedMax 510974501

CRANK GEAR

$159.99

$

Usually ships in 3-10 days

0

7

RedMax 510974801

ROD

$46.99

$

In Stock, only 3 left!

0

8

RedMax 510974701

GUIDE PLATE

$133.99

$

Usually ships in 3-10 days

0

9

RedMax 510976201

BLADE

$241.99

$

Usually ships in 3-10 days

0

10

RedMax 510974901

FELT

$7.99

$

Usually ships in 3-10 days

0

11

RedMax 510975001

BEVEL GEAR A

$74.99

$

Usually ships in 3-10 days

0

12

RedMax 510974601

BEARING

$28.99

$

Usually ships in 3-10 days

0

13

RedMax 515697801

BEARING
(Superseded to 516130201)

$18.99

$

Usually ships in 3-10 days

0

14

RedMax 510549101

SNAP RING
(Superseded to 501409401)

$4.99

$

Usually ships in 3-10 days

0

15

RedMax 510550901

$

$

Not available

16

RedMax 510975201

SCREW

$3.49

$

Usually ships in 3-10 days

0

17

RedMax 510453801

SCREW
(Superseded to 521827901)

$4.99

$

In Stock, Qty 20+

0

18

RedMax 521297501

SCREW(R3873,388411750&11770

$4.99

$

In Stock, only 3 left!

0

19

RedMax 505171501

FITTING

$6.49

$

In Stock, only 3 left!

0

20

RedMax 510975301

U NUT M5

$3.49

$

Usually ships in 3-10 days

0

21

RedMax 515232101

NUT

$4.99

$

In Stock, only 3 left!

0

22

RedMax 515232001

WASHER

$4.99

$

In Stock, only 3 left!

0

23

RedMax 510474901

SCREW

$4.99

$

Usually ships in 3-10 days

0

24

RedMax 515698601

WASHER

$4.99

$

In Stock, only 2 left!

0

25

RedMax 510488001

WASHER

$3.49

$

In Stock, only 3 left!

0

26

RedMax 510454401

BOLT

$3.49

$

Usually ships in 3-10 days

0

27

RedMax 510975401

Plate

$36.99

$

Usually ships in 3-10 days

0

28

RedMax 510975501

BOLT M6X20

Note: 574293501

$

$

Not available

29

RedMax 510975101

COVER

$15.99

$

Usually ships in 3-10 days

0

30

RedMax 510976301

COVER

$31.99

$

Usually ships in 3-10 days

0

31

RedMax 510975601

BEVEL GEAR B

$121.99

$

Usually ships in 3-10 days

0

32

RedMax 516125501

RING,SNAP M26x1.2 RP-318013340

$4.99

$

In Stock, only 2 left!

0

33

RedMax 516131201

BEARING

$18.99

$

Usually ships in 3-10 days

0

34

RedMax 510975701

BOLT M6X25

$3.49

$

Usually ships in 3-10 days

0

35

RedMax 510975801

OBSOLETE - SCREW M6X8

$

$

Not available

36

RedMax 510975901

Cover

$18.99

$

Usually ships in 3-10 days

0

37

RedMax 510972401

BOLT M5X30

$5.99

$

In Stock, only 1 left!

0

38

RedMax 510972301

BOLT M5X10

$6.49

$

In Stock, only 1 left!

0

39

RedMax 515698901

JOINT

$20.99

$

In Stock, only 1 left!

0

40

RedMax 515698801

WASHER

$2.49

$

In Stock, only 4 left!

0

41

RedMax 510976001

OBSOLETE - SCREW M5X35

$

$

Not available

42

RedMax 510976101

OBSOLETE - NUT M5

$

$

Not available
