SRTZ 2401 F - RedMax Short Reach Hedge Trimmer (SN: 60100101 & Above) (2005-11) 003 - DRIVE UNIT Parts Diagram

Short Reach Hedge Trimmer

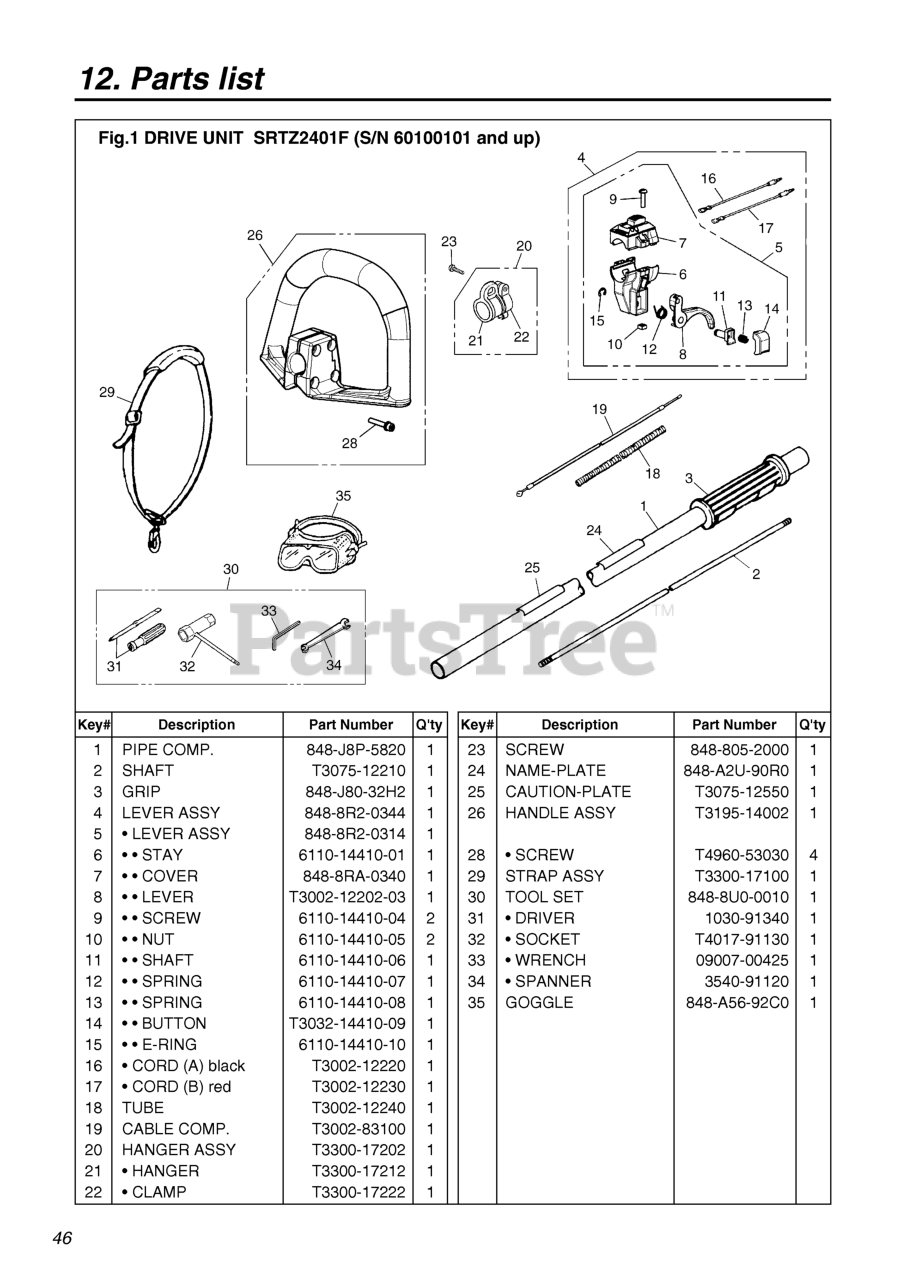

003 - DRIVE UNIT Parts Diagram

  • Title

1

RedMax 848J8P5820

PIPE COMP
(Superseded to 588677001)

$45.99

$

Usually ships in 3-10 days

0

2

RedMax T307512210

SHAFT
(Superseded to 521811601)

$31.99

$

Usually ships in 3-10 days

0

3

RedMax 848J8032H2

GRIP
(Superseded to 521651001)

$

$

Not available

4

RedMax 8488R20344

LEVER ASSY
(Superseded to 521529701)

$

$

Not available

5

RedMax 8488R20314

LEVER
(Superseded to 521529601)

$

$

Not available

6

RedMax 61101441001

STAY

$

$

Not available

7

RedMax 8488RA0340

COVER COMP. (RP. 6110-14410-02)
(Superseded to 521531101)

$13.99

$

Usually ships in 3-10 days

0

8

RedMax T30021220203

FLEX, TRIGGER
(Superseded to 570907201)

$

$

Not available

9

RedMax 61101441004

SCREW

$

$

Not available

10

RedMax 61101441005

NUT

$

$

Not available

11

RedMax 61101441006

SHAFT

$

$

Not available

12

RedMax 61101441007

SPRING

$

$

Not available

13

RedMax 61101441008

SPRING

$

$

Not available

14

RedMax T30321441009

BUTTON

$4.10

$

Usually ships in 3-10 days

0

15

RedMax 61101441010

E-RING

$

$

Not available

16

RedMax T300212220

CORD (A), BLACK
(Superseded to 521803401)

$8.49

$

In Stock, only 1 left!

0

17

RedMax T300212230

CORD (B), RED
(Superseded to 521803501)

$5.99

$

Usually ships in 3-10 days

0

18

RedMax T300212240

TUBE (RPLS 4900-72141)
(Superseded to 512497101)

$4.99

$

Usually ships in 3-10 days

0

19

RedMax T300283100

CABLE (RPLS 5580-83100)
(Superseded to 512498601)

$18.99

$

Usually ships in 3-10 days

0

20

RedMax T330017202

HANGER COMP.
(Superseded to 521822101)

$

$

Not available

21

RedMax T330017212

HANGER

$

$

Not available

22

RedMax T330017222

CLAMP

$

$

Not available

23

RedMax 8488052000

SCREW
(Superseded to 521515301)

$4.99

$

In Stock, only 2 left!

0

24

RedMax 848A2U90R0

NAMEPLATE

$

$

Not available

25

RedMax T307512550

LABEL (CAUTION)

$1.85

$

Usually ships in 3-10 days

0

26

RedMax T319514002

HANDLE ASSY. (REPLACES -14001)
(Superseded to 526056401)

$26.99

$

In Stock, only 3 left!

0

28

RedMax T496053030

SCREW
(Superseded to 521863101)

$3.49

$

In Stock, Qty 11

0

29

RedMax T330017100

STRAP ASSY.
(Superseded to 521651101)

$15.99

$

In Stock, only 2 left!

0

30

RedMax 8488U00010

TOOL-SET
(Superseded to 521532201)

$18.99

$

Usually ships in 3-10 days

0

31

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

32

RedMax T401791130

SOCKET

$11.01

$

Usually ships in 3-10 days

0

33

RedMax 0900700425

WRENCH (TOOL)

$0.75

$

Usually ships in 3-10 days

0

34

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

35

RedMax 848A5692C0

GOGGLE
(Superseded to 510989401)

$

$

Not available
