SRTZ 2401 F-CA - RedMax Short Reach Hedge Trimmer, CARB (SN: 60100101 & Above) (2009-05) 002 - CUTTING UNIT Parts Diagram

Short Reach Hedge Trimmer, CARB

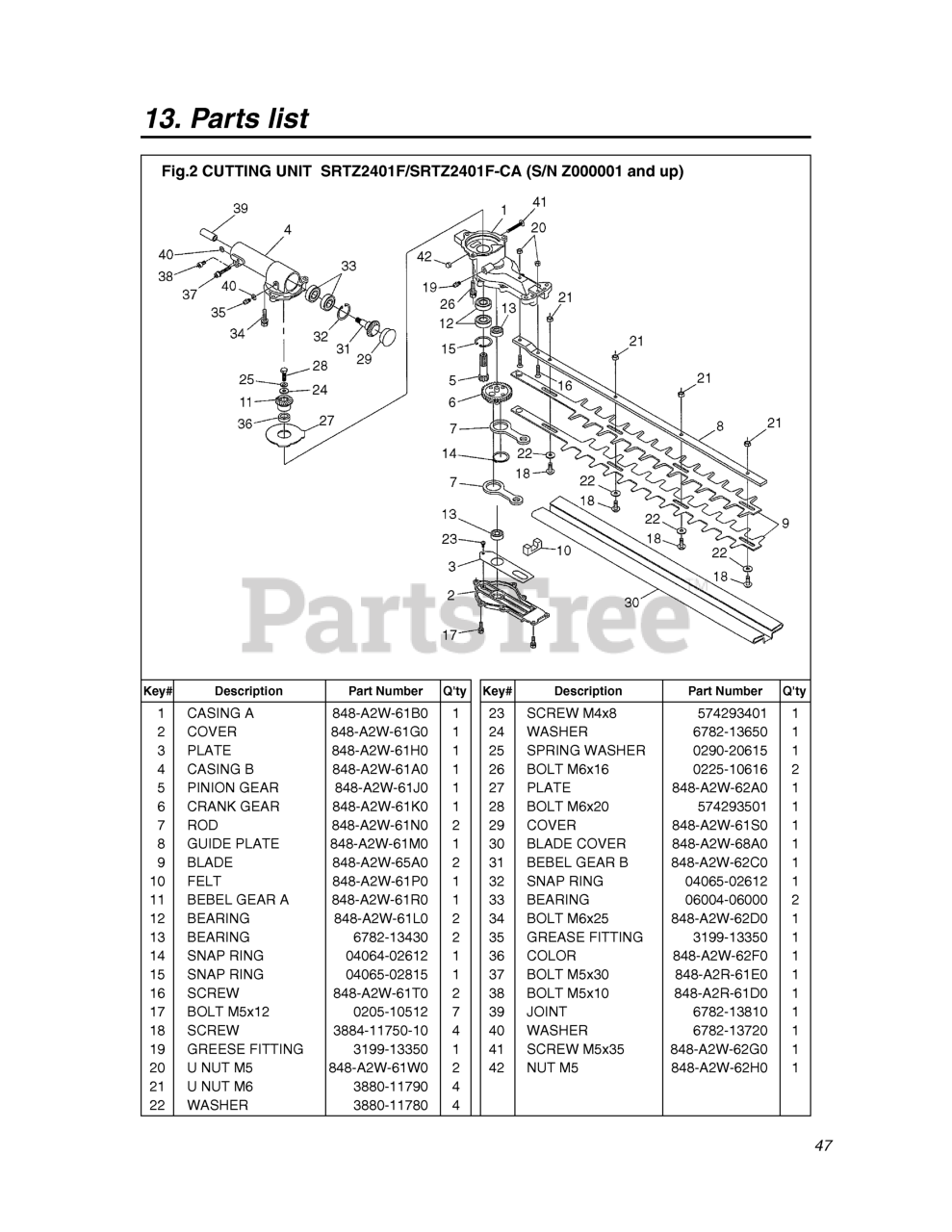

002 - CUTTING UNIT Parts Diagram

  • Title

1

RedMax 848A2W61B0

CASING A
(Superseded to 510974101)

$133.99

$

In Stock, only 3 left!

0

2

RedMax 848A2W61G0

COVER
(Superseded to 510974201)

$39.99

$

In Stock, only 2 left!

0

3

RedMax 848A2W61H0

PLATE
(Superseded to 510974301)

$24.99

$

Usually ships in 3-10 days

0

4

RedMax 848A2W61A0

CASING B
(Superseded to 510974001)

$218.99

$

Usually ships in 3-10 days

0

5

RedMax 848A2W61J0

PINION GEAR
(Superseded to 510974401)

$74.99

$

Usually ships in 3-10 days

0

6

RedMax 848A2W61K0

CRANK GEAR
(Superseded to 510974501)

$159.99

$

Usually ships in 3-10 days

0

7

RedMax 848A2W61N0

ROD
(Superseded to 510974801)

$46.99

$

In Stock, only 3 left!

0

8

RedMax 848A2W61M0

GUIDE PLATE
(Superseded to 510974701)

$133.99

$

Usually ships in 3-10 days

0

9

RedMax 848A2W65A0

BLADE
(Superseded to 510976201)

$241.99

$

Usually ships in 3-10 days

0

10

RedMax 848A2W61P0

FELT
(Superseded to 510974901)

$7.99

$

Usually ships in 3-10 days

0

11

RedMax 848A2W61R0

BEBEL GEAR A
(Superseded to 510975001)

$74.99

$

Usually ships in 3-10 days

0

12

RedMax 848A2W61L0

BEARING
(Superseded to 510974601)

$28.99

$

Usually ships in 3-10 days

0

13

RedMax 678213430

BEARING
(Superseded to 516130201)

$18.99

$

Usually ships in 3-10 days

0

14

RedMax 0406402612

SNAP RING

$

$

Not available

15

RedMax 0406502815

SNAP RING

$

$

Not available

16

RedMax 848A2W61T0

SCREW
(Superseded to 510975201)

$3.49

$

Usually ships in 3-10 days

0

17

RedMax 020510512

BOLT
(Superseded to 521827901)

$4.99

$

In Stock, Qty 20+

0

18

RedMax 38841175010

SCREW

$

$

Not available

19

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

20

RedMax 848A2W61W0

U NUT
(Superseded to 510975301)

$3.49

$

Usually ships in 3-10 days

0

21

RedMax 388011790

NUT
(Superseded to 515232101)

$4.99

$

In Stock, only 3 left!

0

22

RedMax 388011780

WASHER
(Superseded to 515232001)

$4.99

$

In Stock, only 3 left!

0

23

RedMax 574293401

SCREW

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 678213650

WASHER, 6X15X2.0
(Superseded to 515698601)

$4.99

$

In Stock, only 2 left!

0

25

RedMax 029020615

WASHER M6

$0.17

$

Usually ships in 3-10 days

0

26

RedMax 022510616

BOLT, M6 x 16
(Superseded to 516089201)

$3.49

$

Usually ships in 3-10 days

0

27

RedMax 848A2W62A0

PLATE
(Superseded to 510975401)

$36.99

$

Usually ships in 3-10 days

0

28

RedMax 574293501

BOLT

$11.99

$

Usually ships in 3-10 days

0

29

RedMax 848A2W61S0

COVER
(Superseded to 510975101)

$15.99

$

Usually ships in 3-10 days

0

30

RedMax 848A2W68A0

BLADE COVER

$

$

Not available

31

RedMax 848A2W62C0

BEBEL GEAR B
(Superseded to 510975601)

$121.99

$

Usually ships in 3-10 days

0

32

RedMax 0406502612

SNAP RING
(Superseded to 516125501)

$4.99

$

In Stock, only 2 left!

0

33

RedMax 0600406000

BEARING
(Superseded to 516131201)

$18.99

$

Usually ships in 3-10 days

0

34

RedMax 848A2W62D0

BOLT
(Superseded to 510975701)

$3.49

$

Usually ships in 3-10 days

0

35

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

36

RedMax 848A2W62F0

COLOR
(Superseded to 510975901)

$18.99

$

Usually ships in 3-10 days

0

37

RedMax 848A2R61E0

BOLT
(Superseded to 510972401)

$5.99

$

In Stock, only 1 left!

0

38

RedMax 848A2R61D0

BOLT
(Superseded to 510972301)

$6.49

$

In Stock, only 1 left!

0

39

RedMax 678213810

JOINT
(Superseded to 515698901)

$20.99

$

In Stock, only 1 left!

0

40

RedMax 678213720

WASHER
(Superseded to 515698801)

$2.49

$

In Stock, only 4 left!

0

41

RedMax 848A2W62G0

SCREW
(Superseded to 510976001)

$

$

Not available

42

RedMax 848A2W62H0

NUT
(Superseded to 510976101)

$

$

Not available
