SRTZ 230 - RedMax Short Reach Hedge Trimmer (2017-02) ENGINE Parts Diagram

Short Reach Hedge Trimmer

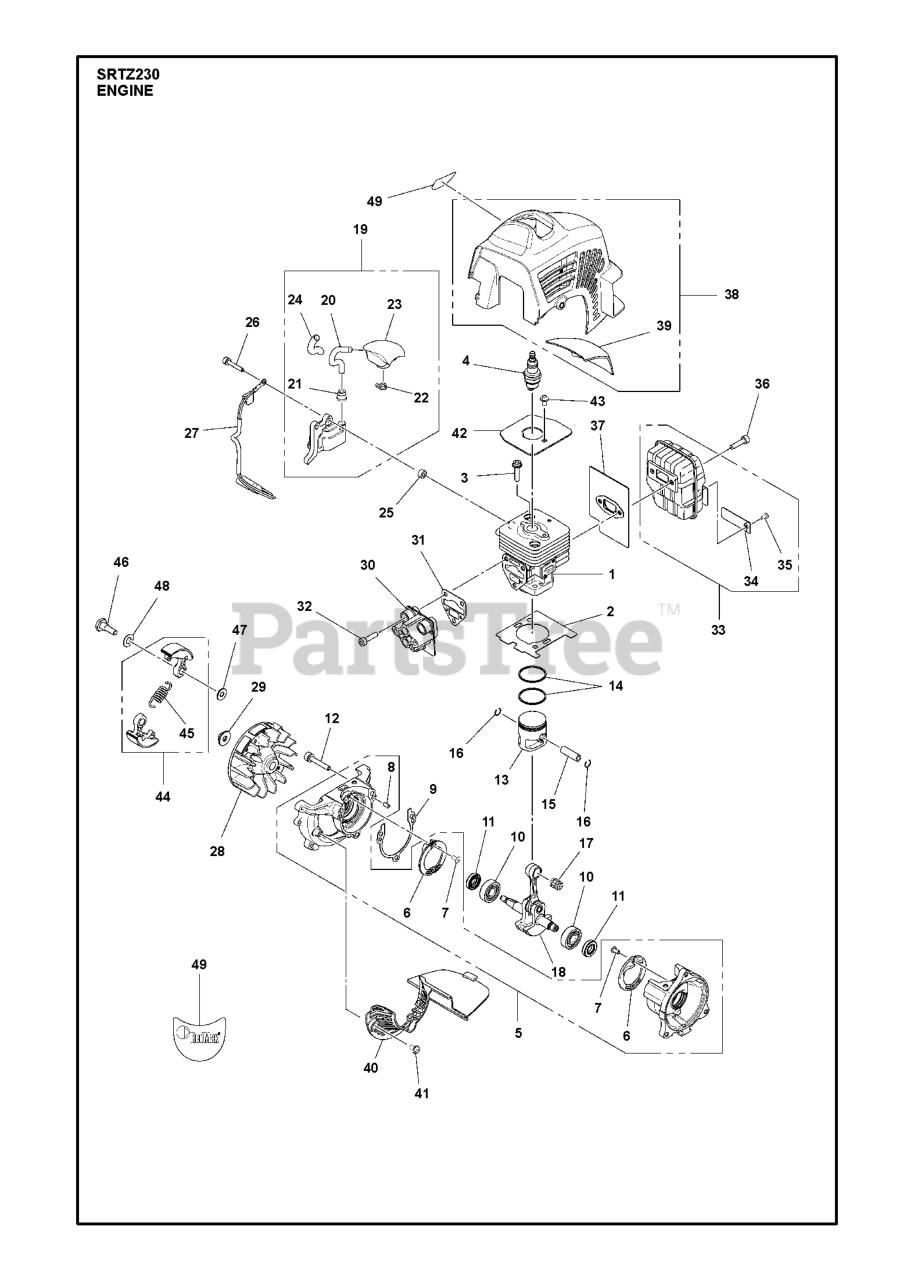

ENGINE Parts Diagram

  • Title

1

RedMax 578143801

CYLINDER COMP

$102.99

$

In Stock, only 2 left!

0

2

RedMax 576407101

GASKET BASE

$6.49

$

Usually ships in 3-10 days

0

3

RedMax 506745201

BOLT
(Superseded to 521345201)

$5.99

$

In Stock, only 3 left!

0

4

RedMax 584703101

SPARK PLUG, BPMR8Y

$14.99

$

Usually ships in 3-10 days

0

5

RedMax 578010001

$

$

Not available

6

RedMax 576407401

COVER CASE

$2.49

$

In Stock, only 1 left!

0

7

RedMax 576398601

BOLT

$

$

Not available

8

RedMax 577167401

PIN

$4.99

$

Usually ships in 3-10 days

0

9

RedMax 576407501

GASKET CASE

$6.49

$

Usually ships in 3-10 days

0

10

RedMax 521756801

BEARING

$11.99

$

In Stock, only 2 left!

0

11

RedMax 521521401

OIL SEAL 8488AA2000

$13.99

$

Usually ships in 3-10 days

0

12

RedMax 512845901

BOLT

$

$

Not available

13

RedMax 579529201

PISTON

$53.99

$

In Stock, only 1 left!

0

14

RedMax 576408201

RING PISTON

$8.99

$

Usually ships in 3-10 days

0

15

RedMax 510916301

PIN.PISTON 8488B82600

$7.49

$

In Stock, only 1 left!

0

16

RedMax 505045201

RING

$4.99

$

In Stock, Qty 11

0

17

RedMax 576402701

BEARING

$10.99

$

In Stock, only 1 left!

0

18

RedMax 586656801

CRANKSHAFT COMPLETE
(Superseded to 576407802)

$96.99

$

Usually ships in 3-10 days

0

19

RedMax 586275201

IGNITION COIL ASSY
(Superseded to 588142101)

$

$

Not available

20

RedMax 584826601

IGNITION CABLE
(Superseded to 576882701)

$24.99

$

In Stock, only 2 left!

0

21

RedMax 511398301

HUB CAP 848F6L71E0

$4.99

$

Usually ships in 3-10 days

0

22

RedMax 577884701

SPRING

$4.99

$

In Stock, only 4 left!

0

23

RedMax 581942701

SPARK PLUG CAP

$7.99

$

Usually ships in 3-10 days

0

24

RedMax 521749501

TUBE (RPLS 263072210)

$3.99

$

Usually ships in 3-10 days

0

25

RedMax 588171401

SPACER

$6.49

$

Usually ships in 3-10 days

0

26

RedMax 521515801

BOLT M4 X 25

$3.99

$

Usually ships in 3-10 days

0

27

RedMax 578934501

SHORT CIRCUIT CABLE

$6.99

$

Usually ships in 3-10 days

0

28

RedMax 577445801

FLYWHEEL

$53.99

$

Usually ships in 3-10 days

0

29

RedMax 513667501

NUT

$4.99

$

In Stock, only 1 left!

0

30

RedMax 585809001

INSULATOR

$11.99

$

In Stock, only 1 left!

0

31

RedMax 576398901

GASKET

$7.49

$

In Stock, only 1 left!

0

32

RedMax 504114301

BOLT

$6.49

$

In Stock, only 2 left!

0

33

RedMax 580694902

MUFFLER ASSY

$121.99

$

Usually ships in 3-10 days

0

34

RedMax 580514401

SPARK ARRESTER

$5.99

$

Usually ships in 3-10 days

0

35

RedMax 729577405

SCREW CRPANT TYPE F ST4.2X9.5

$3.49

$

In Stock, only 3 left!

0

36

RedMax 504114301

BOLT

$6.49

$

In Stock, only 2 left!

0

37

RedMax 578078602

GASKET MUFFLER

$17.99

$

Usually ships in 3-10 days

0

38

RedMax 586055601

CYLINDER COVER COMPLETE

$

$

Not available

39

RedMax 586054001

SHEET HEAT INSULATION TRZ230/B

$5.99

$

Usually ships in 3-10 days

0

40

RedMax 589577301

GUARD COOLING AIR INTAKE

$7.99

$

Usually ships in 3-10 days

0

41

RedMax 544256801

SCREW

$3.49

$

Usually ships in 3-10 days

0

42

RedMax 581822402

PLATE CYLINDER

$4.99

$

Usually ships in 3-10 days

0

43

RedMax 544256801

SCREW

$3.49

$

Usually ships in 3-10 days

0

44

RedMax 585834701

CLUTCH ASSY

$43.99

$

In Stock, only 4 left!

0

45

RedMax 576400701

CLUTCH SPRING

$6.99

$

In Stock, only 1 left!

0

46

RedMax 513189601

SCREW

$4.99

$

In Stock, only 4 left!

0

47

RedMax 505054401

WASHER

$4.99

$

Usually ships in 3-10 days

0

48

RedMax 513189501

WASHER

$4.99

$

Usually ships in 3-10 days

0

49

RedMax 587382701

DECAL BRAND

$3.49

$

Usually ships in 3-10 days

0
