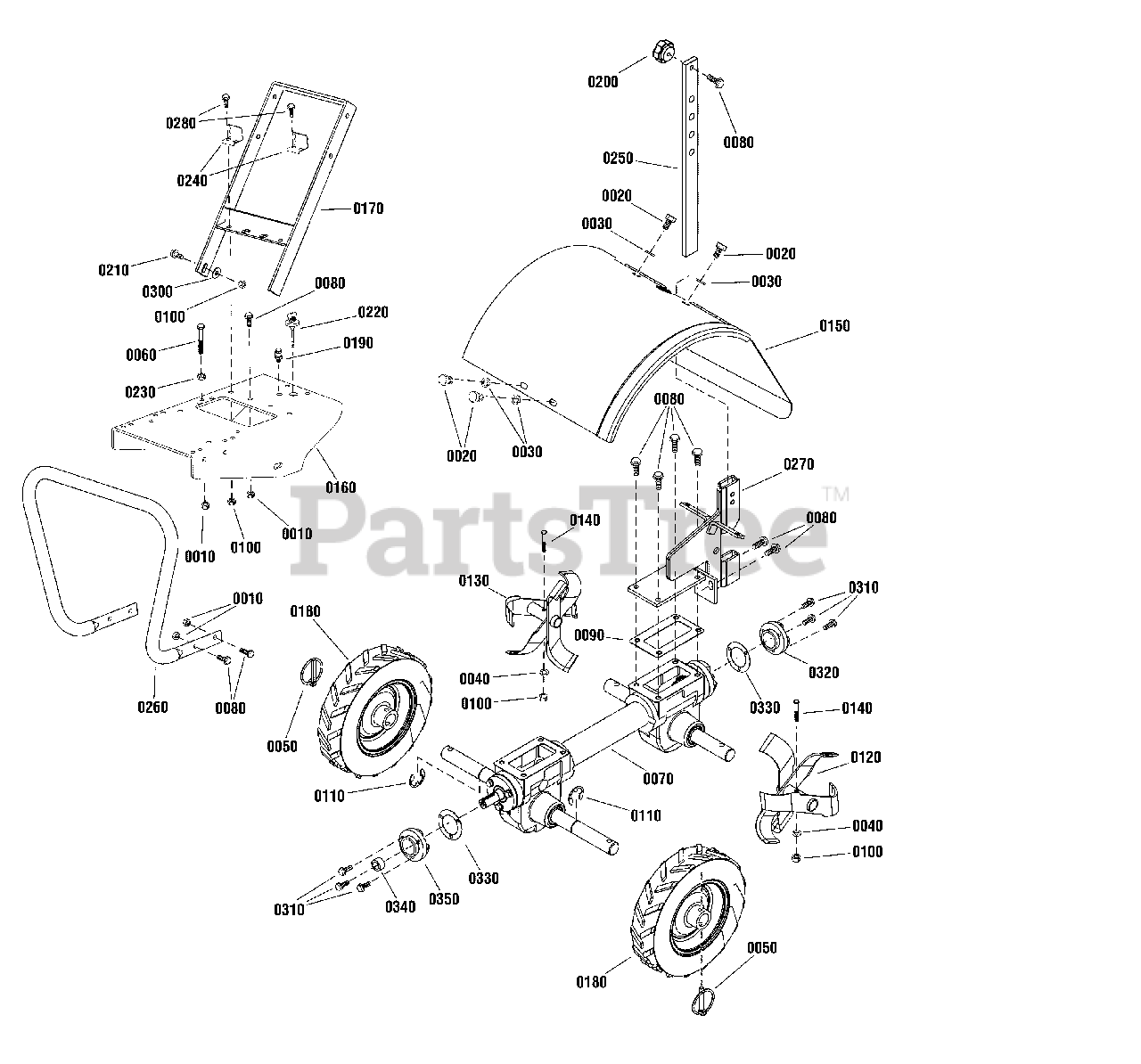

SRT 9516 (7800942-00) - Snapper Rear-Tine Tiller Transmission & Hood Group Parts Diagram

Rear-Tine Tiller

Transmission & Hood Group Parts Diagram

  • Title

0010

Snapper 5025056

NUT, Nylock, 5/16-18
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

0020

Snapper 1920787

BOLT, Hex-Head, 5/16-18 x 1/2, G5
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

0030

Snapper 1916165

WASHER, Locking, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0040

Snapper 720178

WASHER, Spring-Lock, 3/8
(Superseded to 018X31MA)

$4.49

$

Usually ships in 2-12 days

0

0050

Snapper 1716776

PIN, Locking, 5/16 x 1-3/4
(Superseded to 703160)

$5.49

$

In Stock, Qty 7

0

0060

Snapper 1921978

BOLT, Hex-Head, 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

0070

Snapper 1738764

TRANSMISSION ASSEMBLY
(Superseded to 1738764YP)

$1595.99

$

Usually ships in 2-12 days

0

0080

Snapper 1716780

BOLT, Hex-Flange Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0090

Snapper 1716789

GASKET, Transmission
(Superseded to 1716789SM)

$15.99

$

In Stock, only 2 left!

0

0100

Snapper 5025096

NUT, Nylock, 3/8-16
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

0110

Snapper 1751861

RING, Snap
(Superseded to 1751861YP)

$4.49

$

Usually ships in 2-12 days

0

0120

Snapper 1721513

TINE SET, LH
(Superseded to 1721513SM)

$164.99

$

Usually ships in 2-12 days

0

0130

Snapper 1721514

TINE SET, RH
(Superseded to 1721514SM)

$164.99

$

Usually ships in 2-12 days

0

0140

Snapper 1921971

BOLT, 3/8-16 x 1-3/4, G5
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

0150

Snapper 706196

HOOD, W/Beaver Tail

$245.99

$

Usually ships in 2-12 days

0

0160

MOUNT, Motor

Note: (Not a serviceable part.)

$

$

Not available

0170

Snapper 706197

HANDLEBAR, Lower

$104.99

$

Usually ships in 2-12 days

0

0180

Snapper 705821

WHEEL, Pneumatic, 13.0 - 5 x 6

$136.99

$

In Stock, only 1 left!

0

0190

Snapper 706182

VENT, Breather

$46.99

$

Usually ships in 2-12 days

0

0200

Snapper 1733098

KNOB, 5-Star, 5/16-18
(Superseded to 1733098SM)

$9.99

$

Usually ships in 2-12 days

0

0210

Snapper 1931350

BOLT, Carriage, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

0220

Snapper 1723700SM

DIP STICK, Rear

$

$

Not available

0230

Snapper 2820438

NUT, Jam, 5/16-24
(Superseded to 2820438SM)

$3.49

$

In Stock, only 2 left!

0

0240

Snapper 1738639

CLIP, Belt Guard
(Superseded to 1738639YP)

$12.99

$

Usually ships in 2-12 days

0

0250

Snapper 1738652

DRAG ASSEMBLY
(Superseded to 1738652YP)

$95.99

$

Usually ships in 2-12 days

0

0260

Snapper 1738669

BUMPER, Rear
(Superseded to 1738669YP)

$296.99

$

Usually ships in 2-12 days

0

0270

Snapper 1738670

DEPTH REGULATOR, Tail Mount
(Superseded to 1738670YP)

$188.99

$

Usually ships in 2-12 days

0

0280

Snapper 1934654

BOLT, Hex Head, 3/8-16 x 1, G5
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

0300

Snapper 1918265

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

0310

Snapper 1738765

SCREW, M6 x 25
(Superseded to 1738765YP)

$13.99

$

Usually ships in 2-12 days

0

0320

Snapper 1738766

COVER, Rear
(Superseded to 1738766YP)

$75.99

$

Usually ships in 2-12 days

0

0330

Snapper 1738767

GASKET, Front/Rear Cover
(Superseded to 1716792SM)

$15.99

$

Usually ships in 2-12 days

0

0340

Snapper 1738770

SEAL, Oil
(Superseded to 1738770YP)

$31.99

$

Usually ships in 2-12 days

0

0350

Snapper 1738769

COVER, Front
(Superseded to 1738769YP)

$75.99

$

Usually ships in 2-12 days

0
