SRS Z3X (5902170) - Ferris SRS Z3X Series 72" Stand-On Mower, 37hp Briggs & Stratton 72" iCD+ Mower Deck Group - Pulleys, Belt & Idler Arm Parts Diagram

SRS Z3X Series 72" Stand-On Mower, 37hp Briggs & Stratton

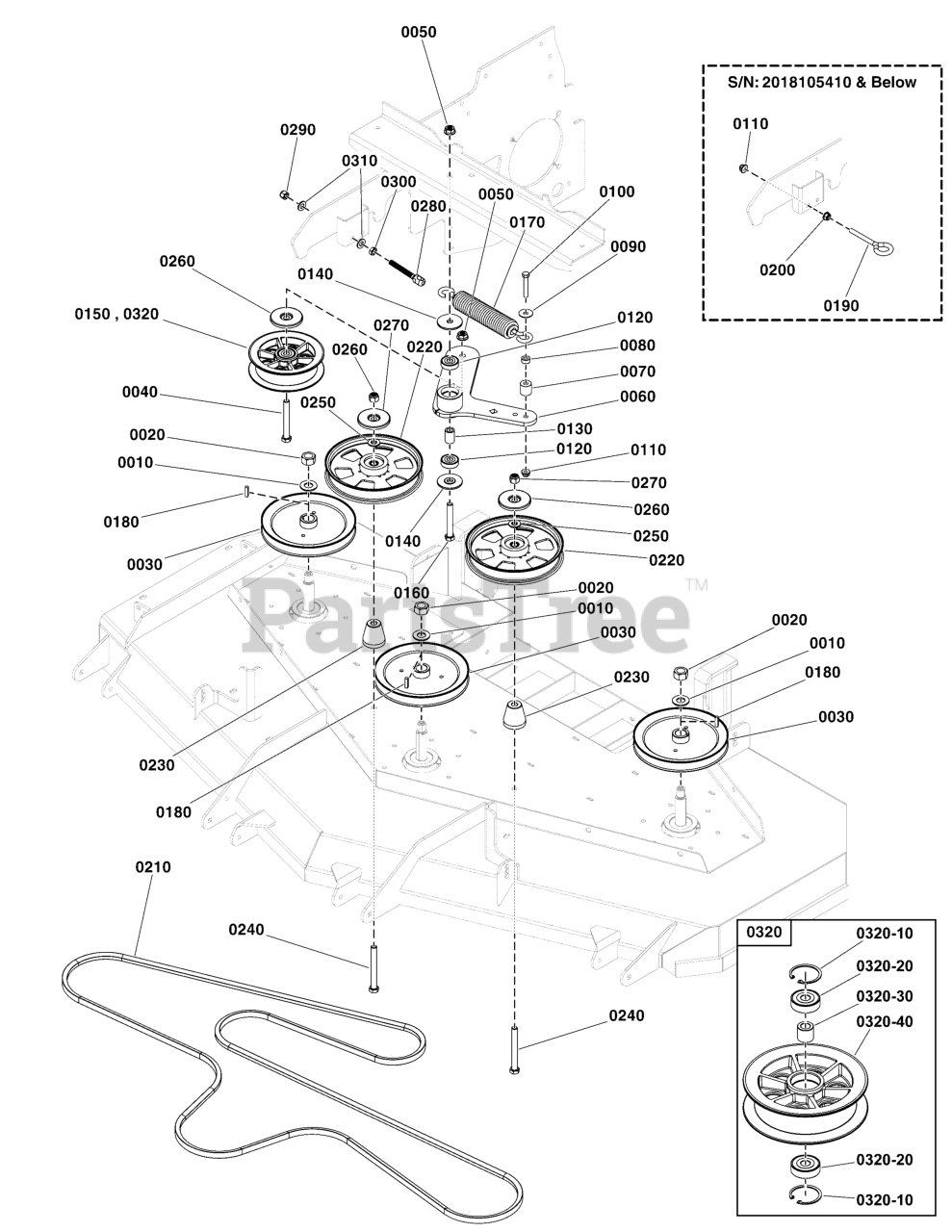

72" iCD+ Mower Deck Group - Pulleys, Belt & Idler Arm Parts Diagram

  • Title

0010

Ferris 5025406

WASHER, 3/4 BELLEVILLE CL/ZC
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

0020

Ferris 5025405

NUT, 3/4-16 Hex
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 13

0

0030

Ferris 5105056

PULLEY, 5V SEC, 8.37" OB X .985" ID
(Superseded to 5105056FS)

$66.99

$

In Stock, only 1 left!

0

0040

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 1 left!

0

0050

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

0060

Ferris 5416473A

WELD, IDLER ARM, MOWER DECK,SRS Z3 - BLK
(Superseded to 5416473AAFS)

$136.99

$

Usually ships in 2-12 days

0

0070

Ferris 5100896

SPACER, .390 X 1.00 X 1.00 - YZ
(Superseded to 5100896SM)

$8.49

$

Usually ships in 2-12 days

0

0080

Ferris 5044933

SPACER, .39 X .75 X .38, PM, CZ
(Superseded to 5044933SM)

$4.99

$

In Stock, only 2 left!

0

0090

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

0100

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 1 left!

0

0110

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (Qty: 2 - S/N: 2018105410 & Below)

$4.49

$

In Stock, Qty 20+

0

0120

Ferris 5104383

BEARING, 6203-1/2", SEALED
(Superseded to 5104383YP)

$9.99

$

In Stock, only 1 left!

0

0130

Ferris 5104456

SPACER, .51 X .84 X 1.22, PM, CZ
(Superseded to 5104456YP)

$4.49

$

In Stock, only 3 left!

0

0140

Ferris 5104379

SPACER, IDLER ARM, 1/2 X 2.25
(Superseded to 5104379YP)

$8.99

$

Usually ships in 2-12 days

0

0150

NLA - IDLER PULLEY

Note: (S/N: 4001876772 & Below)(Refer to Note: *)

$

$

Not available

0160

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 3 left!

0

0170

Ferris 5105092

SPRING, 1.52" OD X 10.70" FL X .234" WIRE, BLK
(Superseded to 5105092FS)

$54.99

$

Usually ships in 2-12 days

0

0180

Ferris 5050407X20

KEY, 1/4 SQ X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

0190

Ferris 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

Note: (S/N: 2018105410 & Below)

$9.49

$

In Stock, only 1 left!

0

0200

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

Note: (S/N: 2018105410 & Below)

$3.49

$

In Stock, only 3 left!

0

0210

Ferris 5103670

BELT SPB4359 772T 172.75EL
(Superseded to 5103670FS)

$148.99

$

In Stock, only 2 left!

0

0220

Ferris 5105454

IDLER, 8" BACK SIDE, 1/2" ID, BLK ECOAT
(Superseded to 5105454FS)

$121.99

$

Usually ships in 2-12 days

0

0230

Ferris 5105523

SPACER, .515 X 1.25 X 2.06, CZ
(Superseded to 5105523FS)

Note: (S/N: 4001759914 and below)

$28.99

$

Usually ships in 2-12 days

0

0230

Ferris 5109520

SPACER, .52 X 2.00 X 1.88, CZ
(Superseded to 5109520FS)

Note: (S/N: 4001759915 and above)

$27.99

$

In Stock, only 2 left!

0

0240

Ferris 5025017X36

BOLT, 1/2-13 X 4-1/2" GD5 YZ
(Superseded to 5025017X36SM)

$6.49

$

In Stock, only 1 left!

0

0250

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 19

0

0260

Ferris 5105041

SHIELD, PULLEY, 1/2"ID X 2-7/8"OD, CZ
(Superseded to 5105041YP)

$3.49

$

Usually ships in 2-12 days

0

0270

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

0280

Ferris 5105844

SPRING PULLER, 1/2-20, 5.00
(Superseded to 5105844YP)

Note: (S/N: 2018105411 & Above)

$16.99

$

In Stock, only 1 left!

0

0290

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

Note: (S/N: 2018105411 & Above)

$5.99

$

In Stock, only 2 left!

0

0300

Ferris 5025089

NUT, 1/2-20 Hex Jam
(Superseded to 5025089SM)

Note: (S/N: 2018105411 & Above)

$3.99

$

In Stock, Qty 7

0

0310

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

Note: (S/N: 2018105411 & Above)

$3.99

$

In Stock, Qty 19

0

0320

Ferris 5109029

PULLEY, IDLER, 5.50, CI
(Superseded to 84007049)

Note: (S/N: 4001876773 & Above)(Includes items # 0320-10 to 0320-40).

$84.99

$

Usually ships in 2-12 days

0

0320-10

Ferris 5020865

SNAP RING, Internal
(Superseded to 5020865FS)

Note: (S/N: 4001876773 & Above)

$2.99

$

Usually ships in 2-12 days

0

0320-20

Ferris 5109021

BEARING, 6203-3RC3-1/2SRI2-Q
(Superseded to 5109021FS)

Note: (S/N: 4001876773 & Above)

$9.49

$

Usually ships in 2-12 days

0

0320-30

Ferris 5105011

SPACER, .505 X .875 X .805, CZ
(Superseded to 5105011FS)

Note: (S/N: 4001876773 & Above)

$48.99

$

In Stock, only 1 left!

0

0320-40

PULLEY HOUSING

Note: (S/N: 4001876773 & Above)(Refer to Note: *)

$

$

Not available
