SRS Z3X (5902170) - Ferris SRS Z3X Series 72" Stand-On Mower, 37hp Briggs & Stratton 72" iCD+ Mower Deck Group - Housing, Covers, Spindles, and Blades Parts Diagram

SRS Z3X Series 72" Stand-On Mower, 37hp Briggs & Stratton

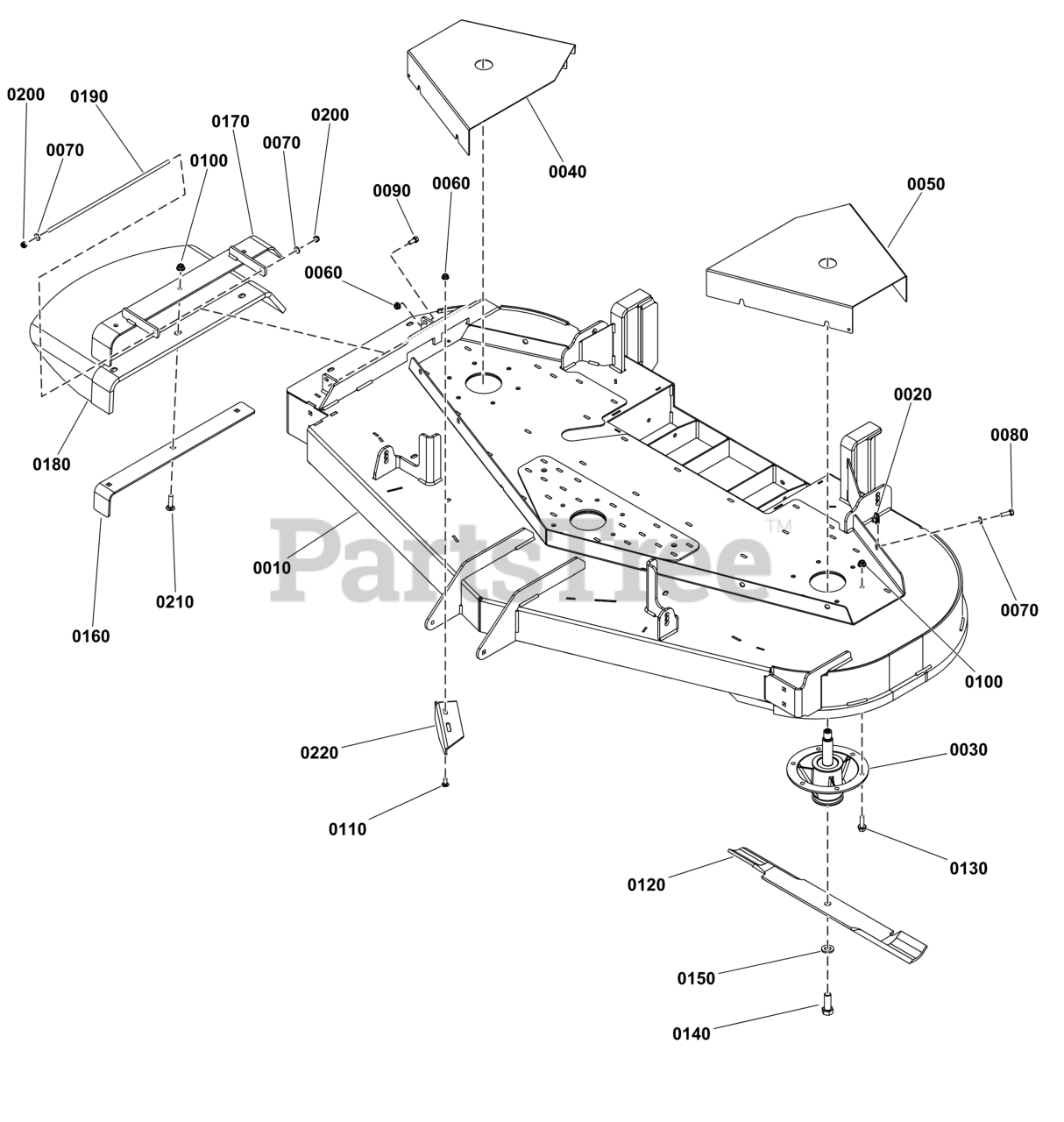

72" iCD+ Mower Deck Group - Housing, Covers, Spindles, and Blades Parts Diagram

  • Title

0010

Ferris 84010862

DECK SHELL w/Decals

Note: (Includes safety decals).

$

$

Currently unavailable

0020

Ferris 5022308SM

BODY CLIP, 5/16-18 X

$5.99

$

In Stock, Qty 5

0

0030

Ferris 5104744YP

ASSEMBLY-SPINDLE

$198.99

$

In Stock, only 1 left!

0

0040

Ferris 5415449BFS

GUARD, RH

$52.99

$

Usually ships in 2-12 days

0

0050

Ferris 5415450BFS

GUARD, Pulley

$56.99

$

Usually ships in 2-12 days

0

0060

Ferris 5025392FS

NUT

$3.49

$

Usually ships in 2-12 days

0

0070

Ferris 703350

WASHER

$4.49

$

In Stock, only 2 left!

0

0080

Ferris 5025011X8FS

BOLT

$3.49

$

In Stock, Qty 18

0

0090

Ferris 5025011X6SM

BOLT, 5/16-18 X 3/4"

$3.99

$

In Stock, only 3 left!

0

0100

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0110

Ferris 5025145X6SM

BOLT, 5/16-18 X 3/4",

$3.99

$

In Stock, only 3 left!

0

0120

Ferris 5102227S

BLADE, 25 X 25 X 2.50, HIGH LIFT (SET OF 3)

Note: (Set of 3 blades)

$110.99

$

In Stock, Qty 6

0

0130

Ferris 5025390X10FS

BOLT

Note: (Torque spindle mounting bolts to 17 ft. lbs. (23 Nm)

$2.99

$

Usually ships in 2-12 days

0

0140

Ferris 770136

BOLT

Note: (Torque blade mounting bolt to 70 ft. lbs. (94 Nm)

$4.49

$

In Stock, Qty 20+

0

0150

Ferris 5025477SM

WASHER, 5/8" YZ

$3.99

$

In Stock, Qty 16

0

0160

Ferris 84003245

PLATE, SUPPORT

$28.99

$

In Stock, Qty 5

0

0170

Ferris 84008171

MOUNT

$136.99

$

Usually ships in 2-12 days

0

0180

Ferris 5413499

CHUTE, RUBBER DISCHARGE (5104442)

$160.99

$

Usually ships in 2-12 days

0

0190

Ferris 5061300FS

ROD

$11.99

$

Usually ships in 2-12 days

0

0200

Ferris 5025045SM

NUT, 5/16-24 HEX NYLO

$3.49

$

In Stock, only 2 left!

0

0210

Ferris 5025146X12YP

BOLT, 3/8-16 X 1-1/2

$3.99

$

Usually ships in 2-12 days

0

0220

Ferris 5407876AYP

DEFLECTOR

$22.99

$

Usually ships in 2-12 days

0
