SRS Z3X (5902071) - Ferris SRS Z3X Series 60" Stand-On Mower, 37hp Briggs & Stratton 60" Mower Deck Group - Pulleys, Belt & Idler Arm Parts Diagram

SRS Z3X Series 60" Stand-On Mower, 37hp Briggs & Stratton

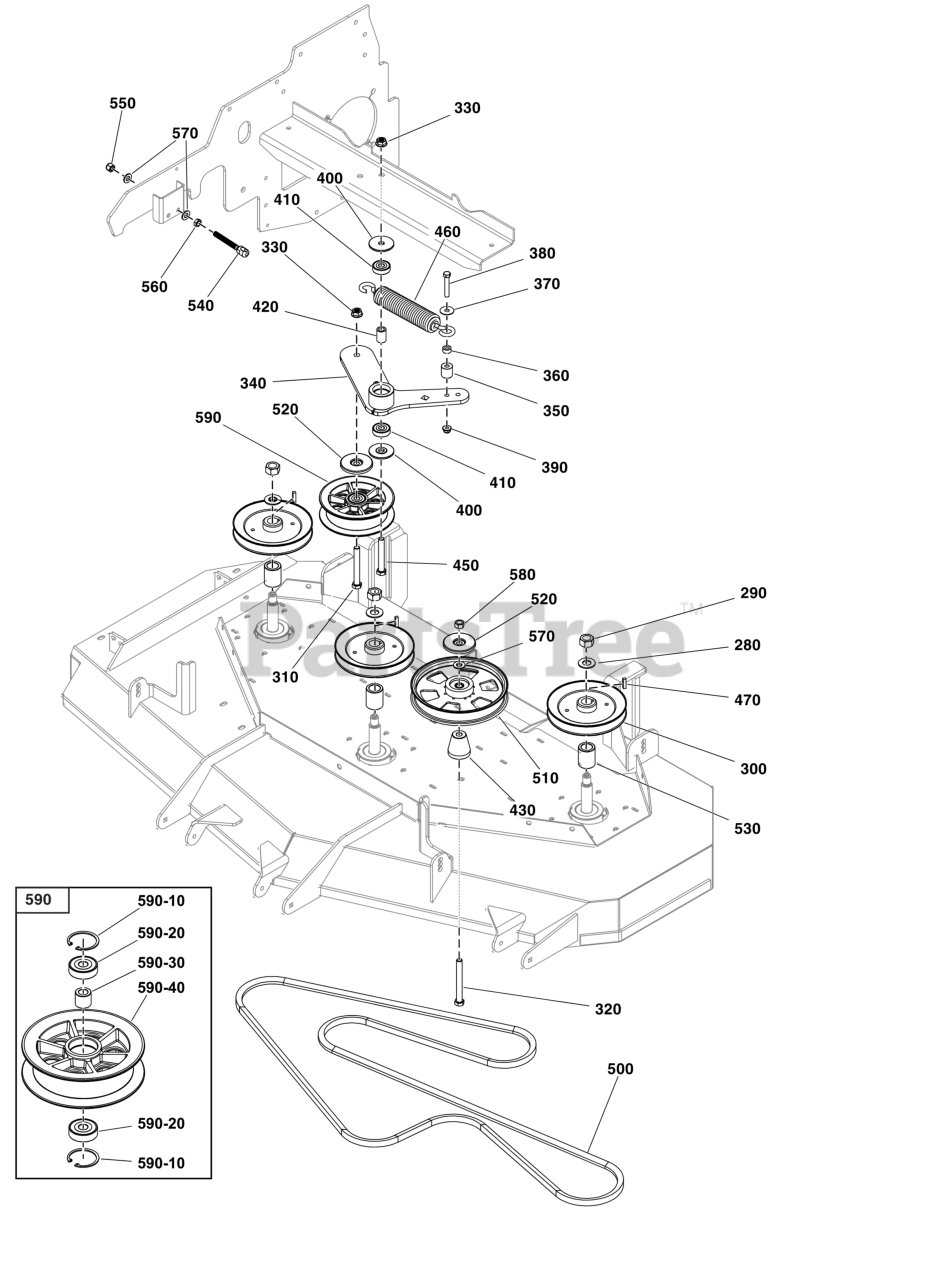

60" Mower Deck Group - Pulleys, Belt & Idler Arm Parts Diagram

  • Title

280

Ferris 5025406FS

WASHER, Beveled

$3.99

$

Usually ships in 2-12 days

0

290

Ferris 5025405SM

NUT, 3/4-16 HEX

$3.99

$

In Stock, Qty 20+

0

300

Ferris 5105004YP

PULLEY

$48.99

$

In Stock, only 4 left!

0

310

Ferris 5025017X32YP

BOLT, 1/2-13 X 4 GD5

$6.49

$

In Stock, only 4 left!

0

320

Ferris 5025017X36SM

BOLT, 1/2-13 X 4-1/2"

$6.49

$

In Stock, only 1 left!

0

330

Ferris 770225

NUT

$3.49

$

In Stock, Qty 20+

0

340

Ferris 5416473AAFS

ARM, IDLER

$136.99

$

Usually ships in 2-12 days

0

350

Ferris 5100896SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

360

Ferris 5044933SM

SPACER, .39 X .75 X .

$4.99

$

In Stock, only 2 left!

0

370

Ferris 5025165SM

WASHER, 3/8" FENDER

$3.99

$

In Stock, only 2 left!

0

380

Ferris 5025013X18SM

BOLT, 3/8-16 X 2-1/4"

$3.99

$

In Stock, only 1 left!

0

390

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

400

Ferris 5104379YP

SPACER

$8.99

$

In Stock, only 2 left!

0

410

Ferris 5104383YP

BEARING

$9.99

$

In Stock, only 3 left!

0

420

Ferris 5104456YP

SPACER, .51 X .84 X 1

$4.49

$

In Stock, only 2 left!

0

430

Ferris 5109520FS

SPACER

$27.99

$

In Stock, only 2 left!

0

450

Ferris 5025017X28SM

BOLT, 1/2-13 X 3-1/2"

$5.99

$

In Stock, only 3 left!

0

460

Ferris 5105092FS

SPRING, Extension

$54.99

$

Usually ships in 2-12 days

0

470

Ferris 5050407X8SM

KEY, 1/4" SQ. X 1.00

$3.99

$

In Stock, only 1 left!

0

500

Ferris 5105453FS

BELT

$136.99

$

In Stock, only 1 left!

0

510

Ferris 5105454FS

ARM, IDLER

$121.99

$

Usually ships in 2-12 days

0

520

Ferris 5105041YP

SHIELD

$3.49

$

In Stock, only 1 left!

0

530

Ferris 5105459FS

SPACER

$9.49

$

In Stock, only 2 left!

0

540

Ferris 5105844YP

ANCHOR, SPRING

$16.99

$

Usually ships in 2-12 days

0

550

Ferris 5025098SM

NUT, 1/2-20 HEX NYLON

$5.99

$

In Stock, only 2 left!

0

560

Ferris 5025089SM

NUT, 1/2-20 HEX JAM

$3.99

$

In Stock, Qty 19

0

570

Ferris 5025158SM

WASHER, 1/2" SAE

$3.99

$

In Stock, Qty 11

0

580

Ferris 5025056FS

NUT

$4.49

$

Usually ships in 2-12 days

0

590

Ferris 84007049

PULLEY ASSEMBLY

Note: (Includes items # 590-10 to 590-40).

$84.99

$

In Stock, only 2 left!

0

590-10

Ferris 5020865FS

RING, SNAP

$2.99

$

Usually ships in 2-12 days

0

590-20

Ferris 5109021FS

BEARING

$9.49

$

In Stock, only 1 left!

0

590-30

Ferris 5105011FS

SPACER

$48.99

$

In Stock, only 1 left!

0

590-40

PULLEY HOUSING

Note: (Refer to Note: *)

$

$

Not available
