SRS Z3X (5901955) - Ferris SRS Z3X Series 52" Stand-On Mower, 27hp Kawasaki Instrument Control Panel Group Parts Diagram

SRS Z3X Series 52" Stand-On Mower, 27hp Kawasaki

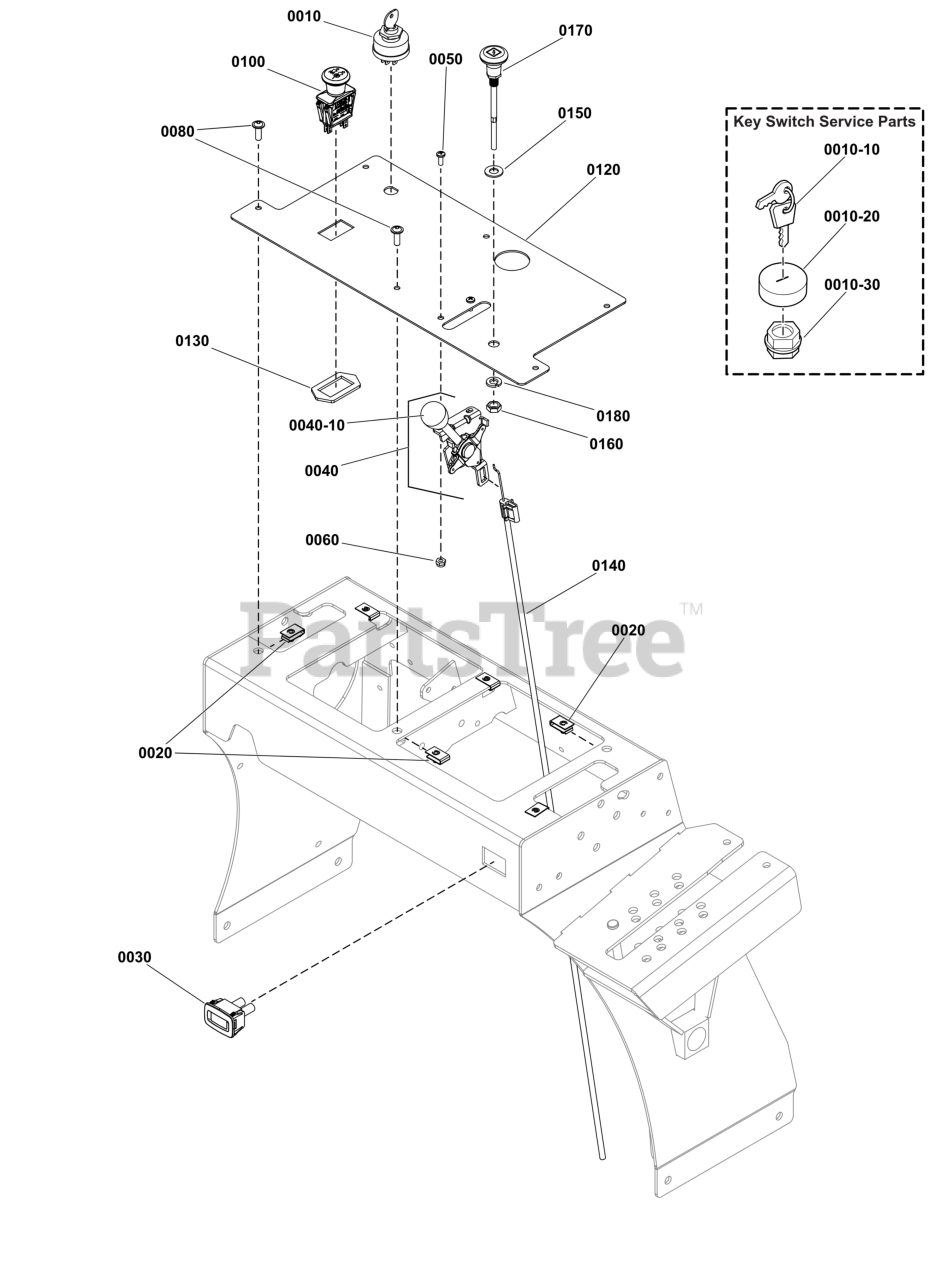

Instrument Control Panel Group Parts Diagram

  • Title
0010

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Includes items 0010-10, 0010-20, and 0010-30).

$33.99

$

In Stock, only 3 left!

0

0010-10

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

0010-20

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

0010-30

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0

0020

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

0030

Ferris 84008510

HOURMETER

$33.99

$

In Stock, Qty 10

0

0040

Ferris 5101995

LEVER, HEAVY DUTY, THROTTLE CONTROL
(Superseded to 5101995YP)

Note: (Includes item #0040-10).

$42.99

$

In Stock, only 2 left!

0

0040-10

Ferris 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

$10.99

$

In Stock, only 1 left!

0

0050

Ferris 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$

$

Currently unavailable

0060

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

0080

Ferris 5106757

SCREW, FLANGE, ALLEN HD, 1/4-20 X .75 SS
(Superseded to 84003668)

$3.49

$

Usually ships in 2-12 days

0

0100

Ferris 5104697

PTO SWITCH, MOMENTARY, SMALL KNOB
(Superseded to 5104697FS)

$30.99

$

In Stock, Qty 14

0

0120

Ferris 5601070

DASH PANEL W/DECALS, SRS Z3, B&S

$124.99

$

Usually ships in 2-12 days

0

0130

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 2 left!

0

0140

Ferris 5101074

CABLE, THROTTLE, 40"
(Superseded to 5101074SM)

$33.99

$

In Stock, only 1 left!

0

0150

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0160

Ferris 5025309

NUT, 3/8-24 Hex Jam
(Superseded to 5025309SM)

$2.99

$

Usually ships in 2-12 days

0

0170

Ferris 5047143

CABLE, CHOKE CONTROL, 39.5"
(Superseded to 5047143SM)

$56.99

$

Usually ships in 2-12 days

0

0180

Ferris 5025171

WASHER, 3/8" SPLIT LOCK
(Superseded to 5025171SM)

$3.99

$

In Stock, only 1 left!

0
