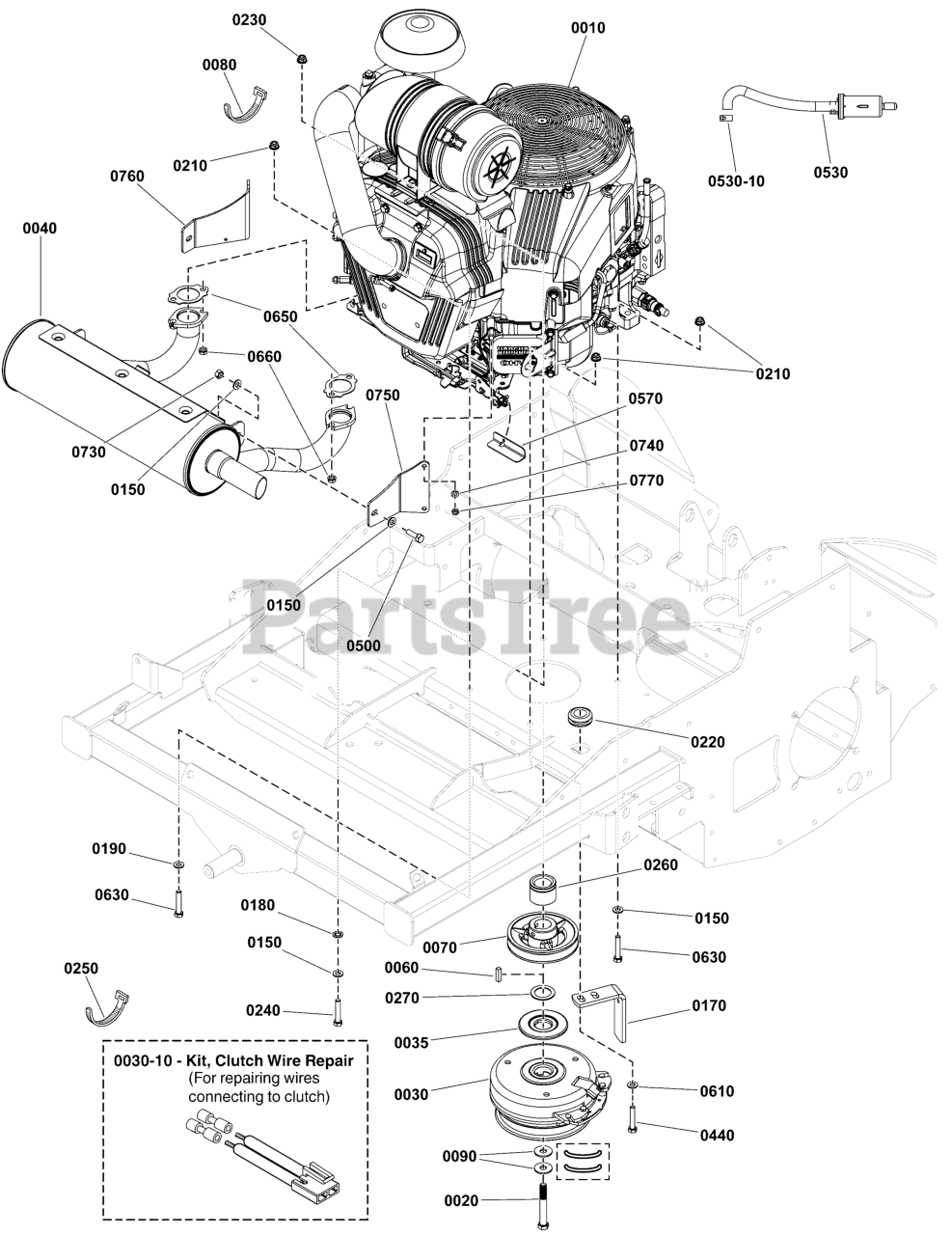

SRS Z3X (5901953) - Ferris SRS Z3X Series 72" Stand-On Mower, 37hp Briggs & Stratton Engine & PTO Group - Briggs & Stratton 61E877 S/N: 4002038355 and Above Parts Diagram

SRS Z3X Series 72" Stand-On Mower, 37hp Briggs & Stratton

Engine & PTO Group - Briggs & Stratton 61E877 S/N: 4002038355 and Above Parts Diagram

  • Title

0010

ENGINE, 37HP EFI, B&S, OIL GUARD (61E877-0112-J1)

Note: (S/N: 4002218814 and below)(Refer to Note: *)

$

$

Not available

0010

ENGINE, 37HP EFI, B&S, OIL GUARD (61A777-0100-J1)

Note: (S/N: 4002218815 and above)(Refer to Note: *)

$

$

Not available

0020

Ferris 5103300

BOLT, CRANKSHAFT, 7/16-20 X 3-1/4, GD 8
(Superseded to 5103300YP)

Note: (S/N: 4002218814 and below)(Refer to Note: *)

$5.99

$

In Stock, only 1 left!

0

0020

Ferris 5102867

BOLT, CRANKSHAFT, 7/16-20 X 3-1/2, GD8
(Superseded to 84008437)

Note: (S/N: 4002218815 and above)(Refer to Note: *)

$4.49

$

Usually ships in 2-12 days

0

0030

Ferris 5110177

CLUTCH, 250 LBS., 1.13", WGC
(Superseded to 5110177FS)

$509.99

$

In Stock, only 2 left!

0

0030-10

Ferris 5600575

KIT, CLUTCH WIRE REPAIR

$66.99

$

Usually ships in 2-12 days

0

0035

Ferris 5108851

WATER GUARD, WARNER C 250 FT-LBS CLUTCH
(Superseded to 84006413)

$13.99

$

Usually ships in 2-12 days

0

0040

Ferris 5110104

MUFFLER, 37HP B&S, EFI, Z3
(Superseded to 5110104FS)

Note: (S/N: 4002218814 and below)

$401.99

$

Usually ships in 2-12 days

0

0040

Ferris 84008436

MUFFLER

Note: (S/N: 4002218815 and above)

$353.99

$

Usually ships in 2-12 days

0

0060

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 3 left!

0

0070

Ferris 5021682

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48
(Superseded to 5021682YP)

$48.99

$

Usually ships in 2-12 days

0

0080

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

$3.49

$

Usually ships in 2-12 days

0

0090

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 2 left!

0

0150

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0170

Ferris 5404967AA

ANCHOR, CLUTCH - BLK
(Superseded to 5404967AYP)

$32.99

$

Usually ships in 2-12 days

0

0180

Ferris 5025188

WASHER, 5/16" Internal Tooth Lock
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

0190

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0210

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0220

Ferris 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

0230

Ferris 5025616

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS
(Superseded to 5025616YP)

$3.99

$

In Stock, only 2 left!

0

0240

Ferris 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8, PHOS
(Superseded to 5025025X14YP)

$4.49

$

Usually ships in 2-12 days

0

0250

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

0260

Ferris 5100926

SPACER, 1.13 X 1.75 X 1.35, CZ
(Superseded to 5100926YP)

$27.99

$

In Stock, only 1 left!

0

0270

Ferris 5102271

SHIM, .062 THK X 1-1/8 ID X 1-5/8 OD
(Superseded to 5102271FS)

$4.49

$

Usually ships in 2-12 days

0

0440

Ferris 80003522

HHCS, 3/8-16 X 2.00, GR5, ZINC/CLEAR
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0500

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

0530

Ferris 846732

HOSE/FILTER ASSY
(Superseded to 84003196)

$24.99

$

Usually ships in 2-12 days

0

0530-10

Ferris 5102046

CLAMP, HOSE, EXTERNAL, 9/16
(Superseded to 84003197)

$2.49

$

Usually ships in 2-12 days

0

0570

Ferris 5417151

PLATE, SS HEAT SHIELD, Z3-BRIGGS
(Superseded to 5417151FS)

Note: (S/N: 4002218814 and below)(Refer to Note: *)

$6.99

$

Usually ships in 2-12 days

0

0610

Ferris 5025293

WASHER, 3/8" GR. 9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

0630

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

0650

Ferris 809872

GASKET, Exhaust

Note: (Order this part from your local PD warehouse).

$5.49

$

In Stock, Qty 20+

0

0660

Ferris 842067

NUT

Note: (Order this part from your local PD warehouse).

$3.99

$

Usually ships in 2-12 days

0

0730

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

0740

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

In Stock, only 2 left!

0

0750

Ferris 84007953

BRACKET, Muffler

Note: (Left side)

$

$

Currently unavailable

0760

Ferris 84007954

BRACKET, Muffler

Note: (Right side)

$

$

Currently unavailable

0770

Ferris 5025420

NUT, M6-1.0

$

$

Currently unavailable
