SRS Z3X (5901951) - Ferris SRS Z3X Series 61" Stand-On Mower, 37hp Briggs & Stratton 61" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

SRS Z3X Series 61" Stand-On Mower, 37hp Briggs & Stratton

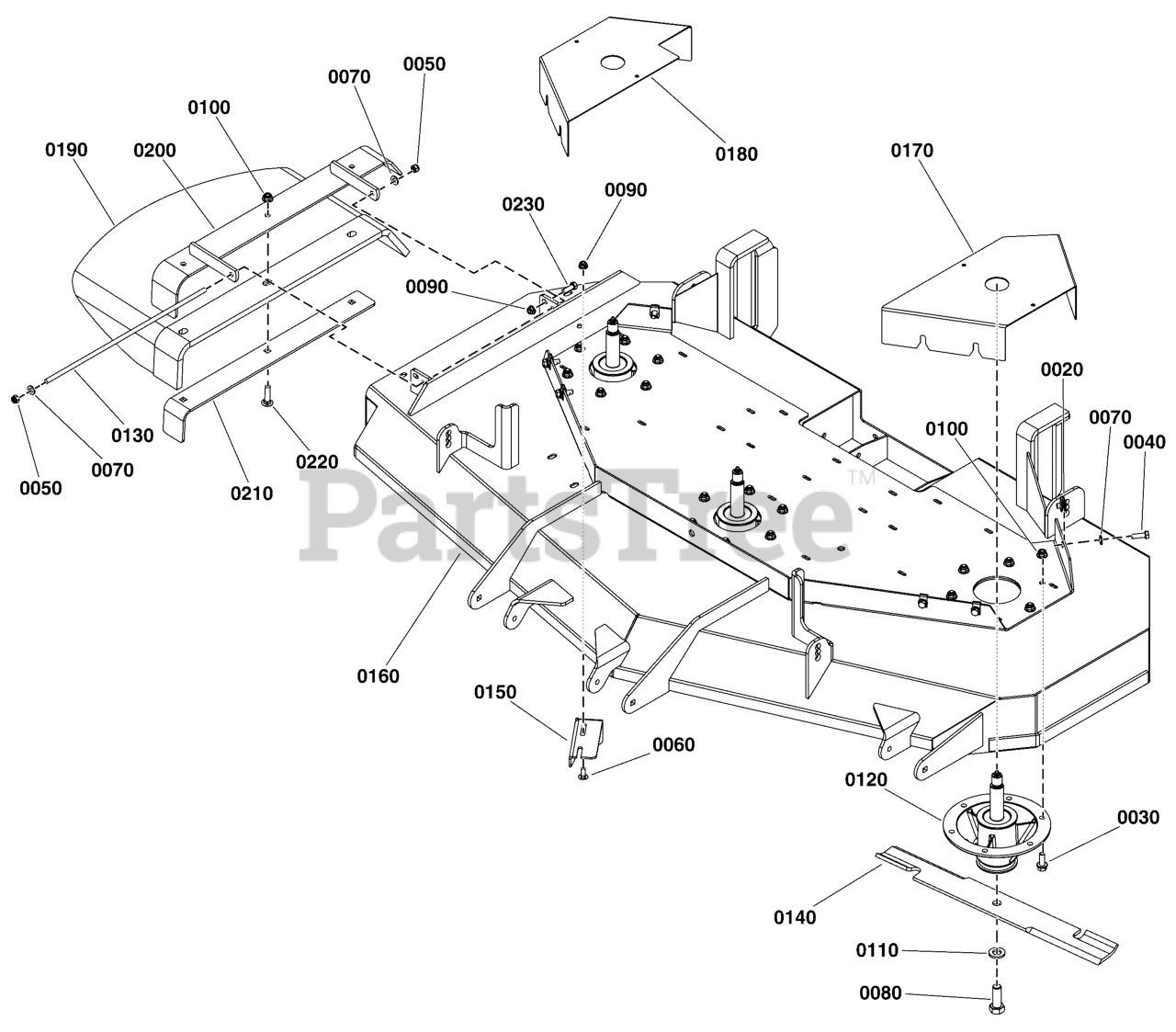

61" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

0020

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

0030

Ferris 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

Note: (S/N: 4001759914 and below)(Torque spindle mounting bolts to 17 ft. lbs. (23 Nm)

$3.49

$

Usually ships in 2-12 days

0

0030

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

Note: (S/N: 4001759915 and above)(Torque spindle mounting bolts to 17 ft. lbs. (23 Nm)

$2.99

$

Usually ships in 2-12 days

0

0040

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0050

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

0060

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

0070

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0080

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: (Torque blade mounting bolt to 70 ft. lbs. (94 Nm)

$3.49

$

Usually ships in 2-12 days

0

0090

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0100

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0110

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

0120

Ferris 5104744

SPINDLE ASSM, CAST IRON 8.0-6 BOLT, LS
(Superseded to 5104744YP)

$198.99

$

In Stock, only 4 left!

0

0130

Ferris 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

0140

Ferris 5101755S

BLADE SET, 61 DECK (3)

Note: (Set of 3 blades)

$

$

Not available

0150

Ferris 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$11.99

$

Usually ships in 2-12 days

0

0160

Ferris 5601067

DECK SHELL W/DECALS, SRSZ3-61 (5415143B)

Note: (S/N: 4001759914 and below)

$2792.99

$

Usually ships in 2-12 days

0

0160

Ferris 5601310

DECK SHELL W/DECALS, SRSZ3-61 (5422064B)

Note: (S/N: 4001759915 and above)

$2792.99

$

Usually ships in 2-12 days

0

0170

Ferris 5416489B

GUARD, LH 61 DECK, SRSZ3 - RED
(Superseded to 5416489BFS)

$40.99

$

Usually ships in 2-12 days

0

0180

Ferris 5416488B

GUARD, RH 61 DECK, SRSZ3 - RED
(Superseded to 5416488BFS)

$36.99

$

Usually ships in 2-12 days

0

0190

Ferris 5413499

CHUTE, RUBBER DISCHARGE (5104442)

Note: (5104442)

$160.99

$

Usually ships in 2-12 days

0

0200

Ferris 84008171

MOUNT

$136.99

$

Usually ships in 2-12 days

0

0210

Ferris 5413385A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 84003245)

$28.99

$

In Stock, Qty 5

0

0220

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

0230

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0
