SRS Z3X (5901789) - Ferris SRS Z3X Series 61" Stand-On Mower, 33hp Briggs & Stratton Wheel & Tire Group Parts Diagram

SRS Z3X Series 61" Stand-On Mower, 33hp Briggs & Stratton

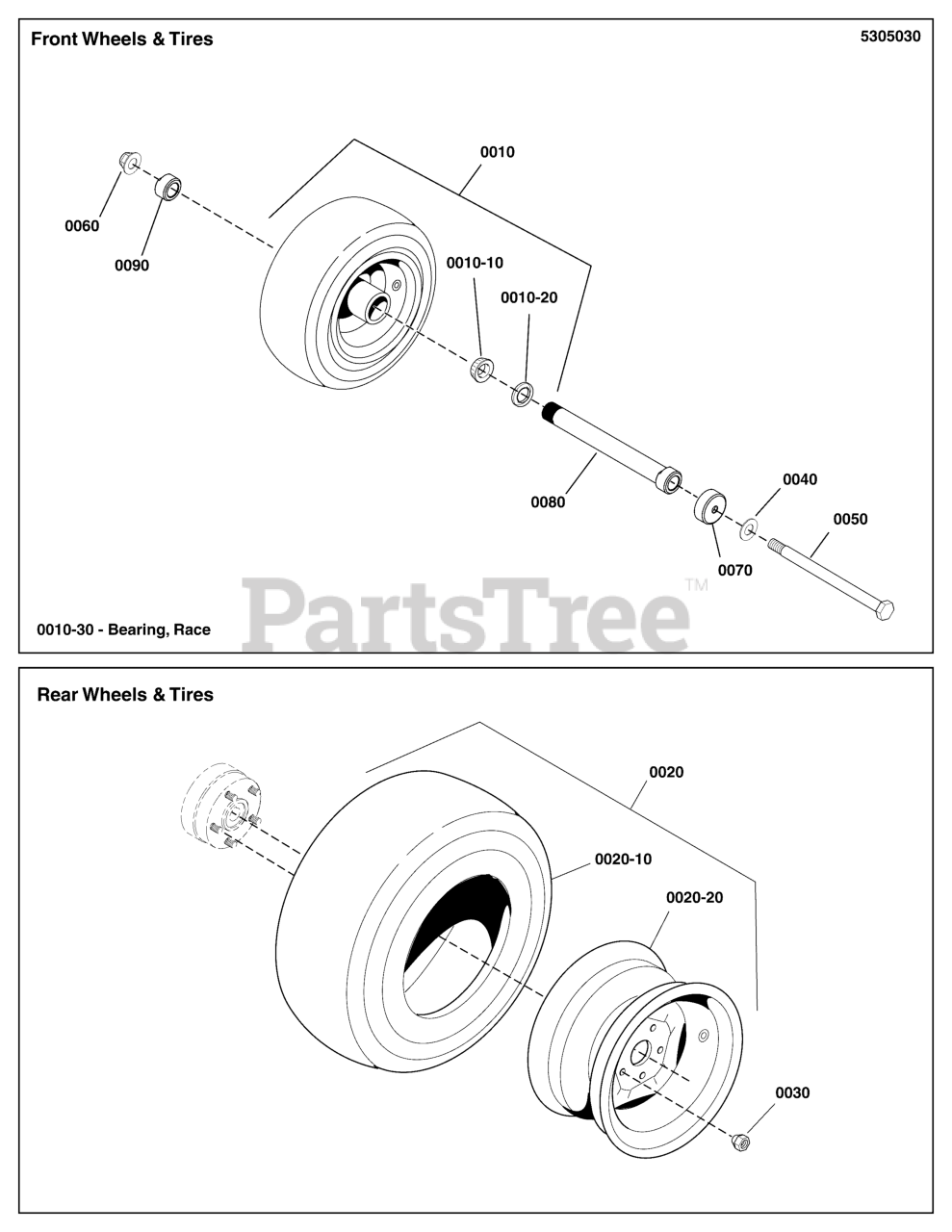

Wheel & Tire Group Parts Diagram

  • Title
0010

Ferris 5023279

TIRE ASSM, 13 X 6.5 - 6, FF / TB
(Superseded to 5023279YP)

$219.99

$

In Stock, only 1 left!

0

0010-10

Ferris 5022631SX2

BEARING, Tapered Roller
(Superseded to 5022631SX2SM)

Note: (2 per tire)

$12.99

$

In Stock, Qty 20+

0

0010-20

Ferris 5022631SX3

SEAL, GREASE
(Superseded to 5022631SX3SM)

Note: (2 per tire)

$9.99

$

In Stock, Qty 20+

0

0010-30

Ferris 5022631SX4

BEARING, RACE
(Superseded to 5022631SX4SM)

Note: (2 per tire)

$10.99

$

In Stock, Qty 20+

0

0020

Ferris 5104029

TIRE/WHEEL ASM, 24 X 12.00-12, TURF SMART

Note: (S/N: 4000771923 and below)

$478.99

$

Usually ships in 2-12 days

0

0020

Ferris 5023365

TIRE WHEEL ASM, 24X12.00-12, TURF MASTER
(Superseded to 5023365YP)

Note: (S/N: 4000771924 and above)

$462.99

$

Usually ships in 2-12 days

0

0020-10

Ferris 5104029X1

TIRE, 24X12.00-12, TURF SMART
(Superseded to 5023240X1)

Note: (S/N: 4000771923 and below)

$330.99

$

Usually ships in 2-12 days

0

0020-10

Ferris 5023240X1

TIRE, 24 X 12 X 12

Note: (S/N: 4000771924 and above)

$

$

Currently unavailable

0020-20

Ferris 5023364

WHEEL, 12 X 8.5

$

$

Currently unavailable

0030

Ferris 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

Note: (Torque lug nuts to 90 ft. lbs. [122 Nm])

$3.49

$

In Stock, Qty 20+

0

0040

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

0050

Ferris 5025017X72

BOLT, 1/2-13 X 9" GD5 YZ
(Superseded to 5025017X72YP)

$11.99

$

In Stock, Qty 10

0

0060

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

0070

Ferris 5103594

DEBRIS, COVER, CASTER WHEELS
(Superseded to 5103594YP)

$4.49

$

In Stock, Qty 15

0

0080

Ferris 5103649

BEARING ADJUSTER, SPACER, 7.062 LG
(Superseded to 5103649YP)

$23.99

$

In Stock, Qty 20+

0

0090

Ferris 5103650

NUT, BEARING ADJUSTER, AXLE
(Superseded to 5103650YP)

$16.99

$

In Stock, Qty 14

0
