SRS Z3X (5901784) - Ferris SRS Z3X Series 52" Stand-On Mower, 33hp Briggs & Stratton Main Frame & Front Casters Group - Models w/ 52" Mower Decks Parts Diagram

SRS Z3X Series 52" Stand-On Mower, 33hp Briggs & Stratton

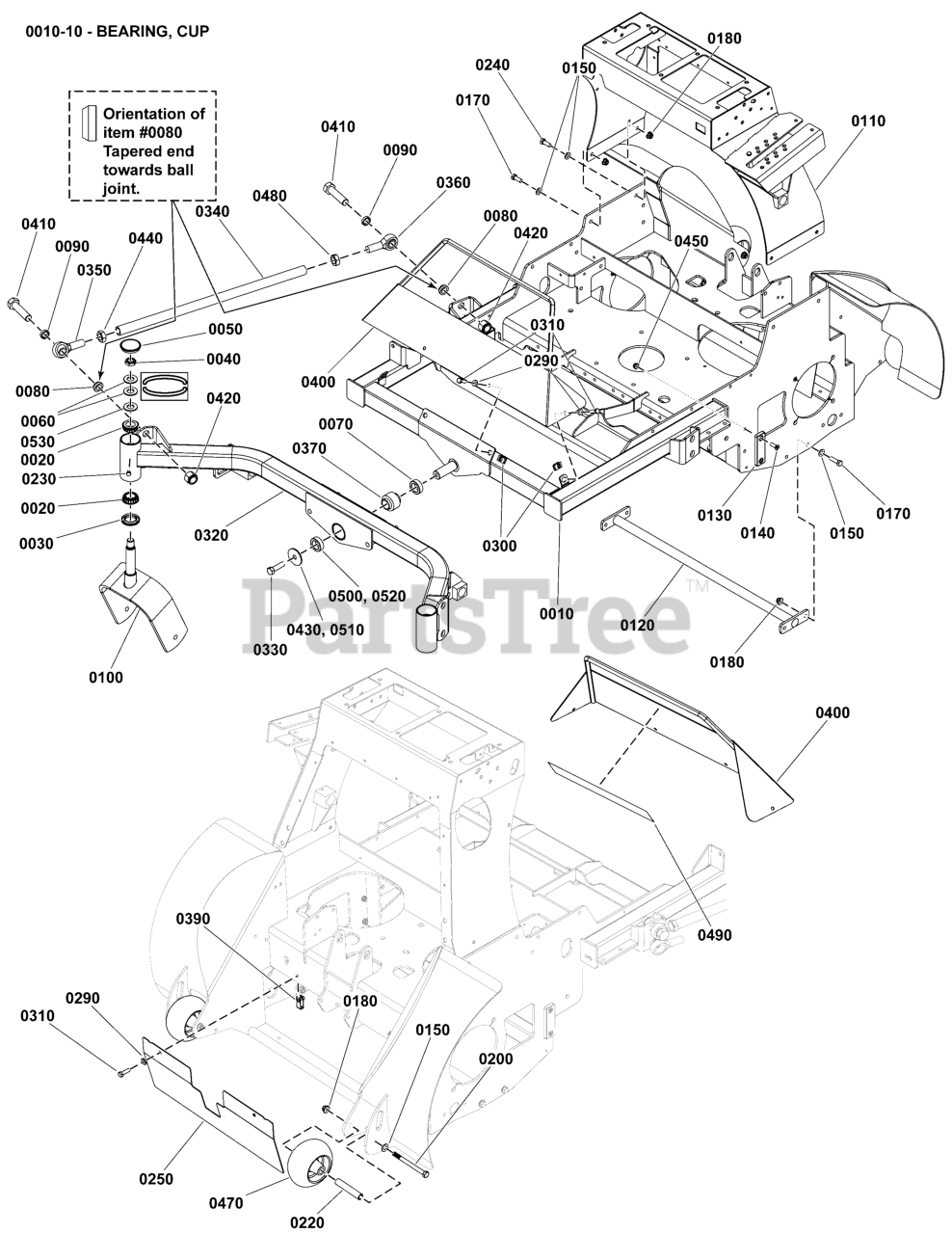

Main Frame & Front Casters Group - Models w/ 52" Mower Decks Parts Diagram

  • Title

0010

FRAME

Note: (Refer to Note: *)

$

$

Not available

0010-10

Ferris 5020883

CUP, BEARING (SV)

$8.99

$

Usually ships in 2-12 days

0

0020

Ferris 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

0030

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, Qty 8

0

0040

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

0050

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

0060

Ferris 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

0070

Ferris 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.49

$

In Stock, only 4 left!

0

0080

SPACER

Note: (S/N: 4000162964 & Below)(Refer to Note: **)

$

$

Not available

0080

Ferris 5108732

SPACER, .765 X 1.500 X .500, TPRD CZ
(Superseded to 5108732FS)

Note: (S/N: 4000162965 & Above)

$11.99

$

Usually ships in 2-12 days

0

0090

Ferris 5047461

SPACER, .76 x 1.00 x .25
(Superseded to 5047461SM)

$4.99

$

Usually ships in 2-12 days

0

0100

Ferris 5419196B

WELD, CASTER YOKE - RED
(Superseded to 5419196BFS)

$198.99

$

Usually ships in 2-12 days

0

0110

USE 5421637B - WELD, TOWER, SRSZ3 - RED

Note: (S/N: 4001932990 and below)(Refer to Note: *)

$

$

Not available

0110

Ferris 5421637B

WELD, TOWER, SRSZ3 - RED
(Superseded to 5421637BFS)

Note: (S/N: 4001932991 and above)

$782.99

$

Usually ships in 2-12 days

0

0120

Ferris 5415454A

WELD, CROSS BRACE, SRSZ3 - BLK

$73.99

$

Usually ships in 2-12 days

0

0130

Ferris 5102702

PAD, FRICTION, .375 X 1.25 X 4.00
(Superseded to 5102702YP)

$6.99

$

In Stock, only 2 left!

0

0140

Ferris 5025594

SCREW, 5/16-18 X 1, PHILLIPS HD, BZ
(Superseded to 5025594YP)

$3.99

$

Usually ships in 2-12 days

0

0150

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0170

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

0180

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0200

Ferris 5025013X36

BOLT, 3/8-16 X 4-1/2" GD5 CZ
(Superseded to 5025013X36YP)

$5.99

$

In Stock, only 2 left!

0

0220

Ferris 5105554

SPACER, .38 X .63 X 3.38, CZ
(Superseded to 5105554YP)

$5.49

$

In Stock, Qty 12

0

0230

Ferris 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

Usually ships in 2-12 days

0

0240

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

0250

Ferris 5415126B

PLATE, FOOT GUARD, SRSZ3 - RED
(Superseded to 5415126BFS)

$27.99

$

Usually ships in 2-12 days

0

0290

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0300

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 5

0

0310

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0320

Ferris 5417790B

WELD, FRONT PIVOT, SRSZ3 52 - RED
(Superseded to 5417790BFS)

$521.99

$

Usually ships in 2-12 days

0

0330

Ferris 5025018X10

BOLT, 1/2-20 X 1-1/4" GD5 CZ
(Superseded to 5025018X10SM)

$2.99

$

In Stock, Qty 20+

0

0340

Ferris 5106451

ROD, FRONT END SUPPORT, Z3-52
(Superseded to 5106451FS)

$53.99

$

Usually ships in 2-12 days

0

0350

Ferris 5022039

BALL JOINT, 3/4-16, MALE
(Superseded to 5022039SM)

$37.99

$

In Stock, Qty 13

0

0360

Ferris 5102756

BALL JOINT, 3/4-16 MALE, LH
(Superseded to 5102756FS)

$32.99

$

Usually ships in 2-12 days

0

0370

Ferris 5105457

BUSHING, CENTER BONDED, J-6310-1
(Superseded to 5105457FS)

$22.99

$

In Stock, only 1 left!

0

0390

Ferris 5025452

BODY CLIP, 5/16-18 -1/4 MATERIAL
(Superseded to 5025452YP)

$5.49

$

Usually ships in 2-12 days

0

0400

Ferris 5415651B

WELD, FRONT GUARD, SRSZ3 72 - RED

$101.99

$

Usually ships in 2-12 days

0

0410

Ferris 5025265X24

BOLT, 3/4-16 X 3" YZ GD5
(Superseded to 5025265X24SM)

$13.99

$

In Stock, only 2 left!

0

0420

Ferris 5025284

NUT, Hex, Nylon Lock, 3/4-16
(Superseded to 5025284SM)

$3.49

$

In Stock, only 1 left!

0

0430

Ferris 5105464

WASHER, .52 X 2.0 X .125, CZ

Note: (S/N: 4000629850 & Below)(Refer to Note: ***)

$6.99

$

Usually ships in 2-12 days

0

0440

Ferris 5025093

NUT, Hex, Jam, 3/4-16
(Superseded to 5025093SM)

$4.49

$

In Stock, only 1 left!

0

0450

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0470

Ferris 5105521

WHEEL, ANTI SCALP, 5"
(Superseded to 5105521FS)

$13.99

$

In Stock, Qty 20+

0

0480

Ferris 5025580

NUT, 3/4-16 HEX JAM, LH
(Superseded to 5025580FS)

$6.49

$

Usually ships in 2-12 days

0

0490

Ferris 5021125X14

ALUM. FOIL TAPE - 14.00 LONG

$

$

Currently unavailable

0500

SPACER

Note: (S/N: 4000629850 & Below)(Refer to Note: ***)

$

$

Not available

0510

Ferris 5108172

WASHER. .52 X 2.5 X .25
(Superseded to 5108172FS)

Note: (S/N: 4000629851 & Above)

$13.99

$

In Stock, only 1 left!

0

0520

Ferris 5108173

SPACER, 1.015 X 1.562 X .615
(Superseded to 5108173FS)

Note: (S/N: 4000629851 & Above)

$13.99

$

Usually ships in 2-12 days

0

0530

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, only 1 left!

0
