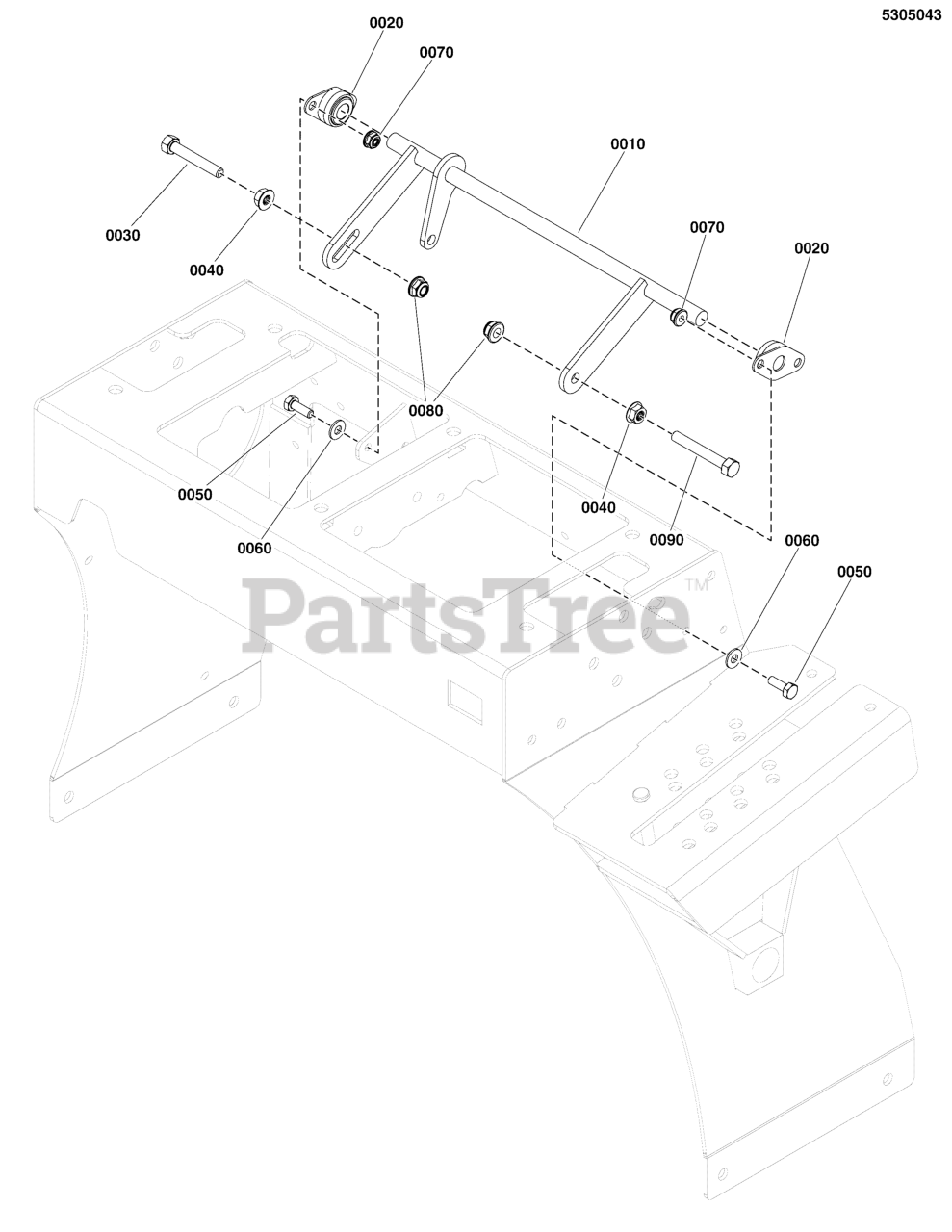

SRS Z3X (5901694) - Ferris SRS Z3X Series 72" Stand-On Mower, 37hp Briggs & Stratton Neutral Lockout Group S/N: 4000089208 and Below Parts Diagram

SRS Z3X Series 72" Stand-On Mower, 37hp Briggs & Stratton

Neutral Lockout Group S/N: 4000089208 and Below Parts Diagram

  • Title
0010

Ferris 5416486A

WELD, NEUTRAL LOCK SHAFT - BLK
(Superseded to 5601143)

$59.99

$

Usually ships in 2-12 days

0

0020

Ferris 5101123

BEARING, 1/2 FLANGED, PLASTIC BALL
(Superseded to 5101123SM)

$5.99

$

Usually ships in 2-12 days

0

0030

Ferris 5025011X16

BOLT, 5/16-18 X 2" GD5 YZ
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

0040

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 3 left!

0

0050

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0060

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0070

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0080

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0090

Ferris 5025011X18

BOLT, 5/16-18 X 2-1/4" GD5 YZ
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0
