SRS Z3X (5901692) - Ferris SRS Z3X Series 61" Stand-On Mower, 37hp Briggs & Stratton Parking Brake Group Parts Diagram

SRS Z3X Series 61" Stand-On Mower, 37hp Briggs & Stratton

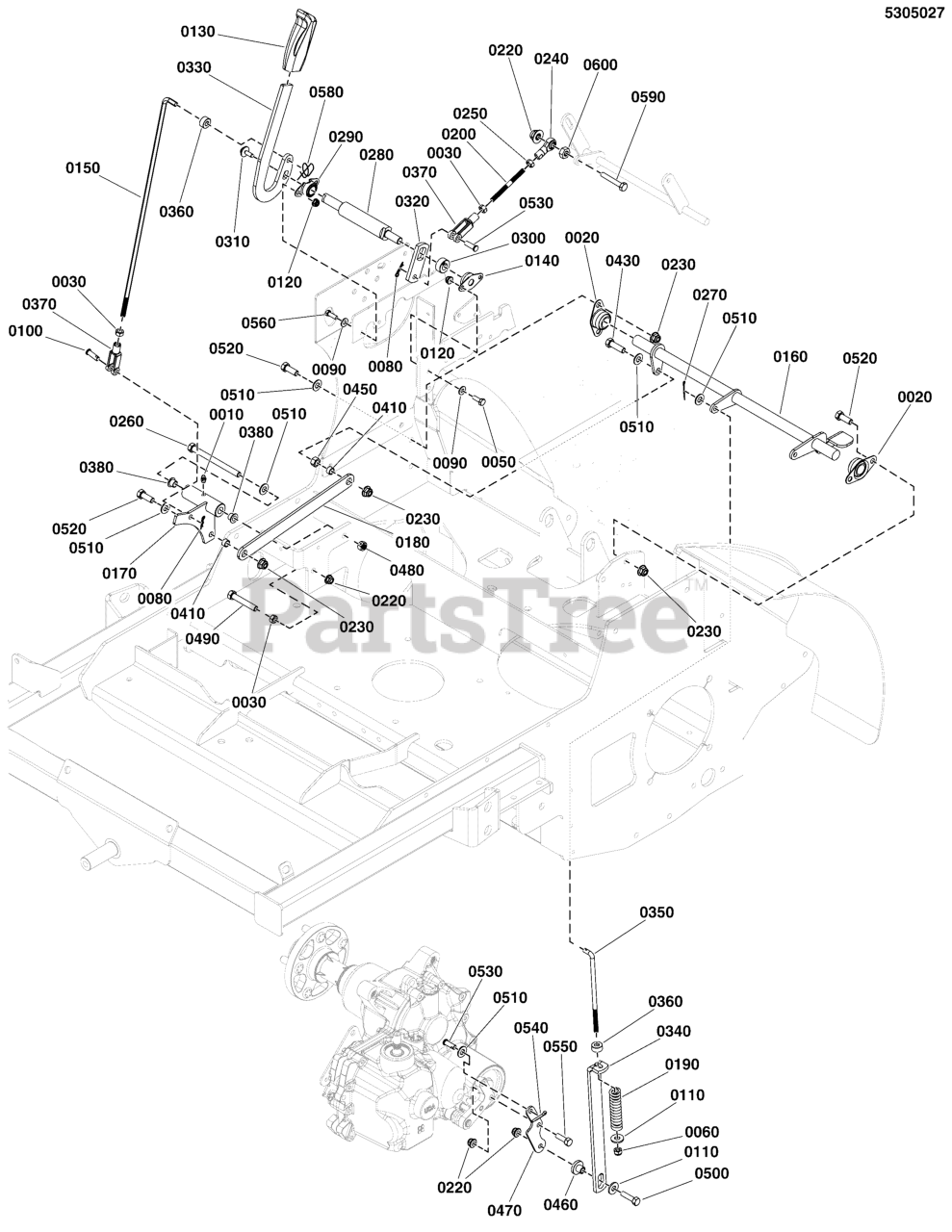

Parking Brake Group Parts Diagram

  • Title

0010

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

0020

Ferris 5021098

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

0030

Ferris 5025033

NUT, Hex, 5/16-24
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

0050

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0060

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

0080

Ferris 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

0090

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0100

Ferris 5025213X8

PIN, CLEVIS, 5/16 X 1, PLATED
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

0110

Ferris 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

0120

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0130

Ferris 5100171

GRIP, BLACK FLEXIBLE
(Superseded to 5100171SM)

$13.99

$

In Stock, only 2 left!

0

0140

Ferris 5101123

BEARING, 1/2 FLANGED, PLASTIC BALL
(Superseded to 5101123SM)

$5.99

$

Usually ships in 2-12 days

0

0150

Ferris 5105314

ROD, BRAKE, Z3
(Superseded to 5105701)

Note: (S/N 2018025018 & Below) (Refer to Note: *)

$20.99

$

Usually ships in 2-12 days

0

0150

Ferris 5105701

ROD, BRAKE, Z3
(Superseded to 5105701FS)

Note: (S/N 2018025019 & Above)

$20.99

$

Usually ships in 2-12 days

0

0150-10

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

Note: (S/N 2018025018 & Below Only)

$7.49

$

In Stock, only 1 left!

0

0160

Ferris 5415110A

WELD, LOWER BRAKE SHAFT, SRSZ3 - BLK

$52.99

$

Usually ships in 2-12 days

0

0170

Ferris 5415453A

WELD, BRAKE PIVOT, SRSZ3 - BLK

$44.99

$

Usually ships in 2-12 days

0

0180

Ferris 5415129A

LINK, BRAKE, SRSZ3 - BLK

$8.99

$

Usually ships in 2-12 days

0

0190

Ferris 5100385

SPRING, COMP. 1/2 ID X .140 WIRE X 3.25
(Superseded to 5100385YP)

$9.49

$

Usually ships in 2-12 days

0

0200

Ferris 5104695

ROD, 5/16-24 X 3.25, CZ
(Superseded to 5104695FS)

$5.99

$

Usually ships in 2-12 days

0

0220

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0230

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0240

Ferris 5104494

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE
(Superseded to 5104494YP)

$18.99

$

Usually ships in 2-12 days

0

0250

Ferris 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

In Stock, only 2 left!

0

0260

Ferris 5025013X36

BOLT, 3/8-16 X 4-1/2" GD5 CZ
(Superseded to 5025013X36YP)

$5.99

$

Usually ships in 2-12 days

0

0270

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

0280

Ferris 5104768

SHAFT, UPPER BRAKE ROD, SRSZ
(Superseded to 5104768FS)

$65.99

$

Usually ships in 2-12 days

0

0290

Ferris 5104270

BEARING, 5/8" FLANGED, PLASTIC BALL
(Superseded to 5104270YP)

$4.99

$

Usually ships in 2-12 days

0

0300

Ferris 5010580

COLLAR, 1/2 SET (1/2 SPLIT COLLAR IN MODEL)
(Superseded to 5010580FS)

$15.99

$

Usually ships in 2-12 days

0

0310

Ferris 2860664

SCREW-HEX SEMS WSHR 1/4-20 X.88 DOG PT
(Superseded to 2860664SM)

$5.99

$

In Stock, only 2 left!

0

0320

Ferris 5106314

PLATE, BRAKE TAB, STAND-ON
(Superseded to 5106314FS)

$11.99

$

Usually ships in 2-12 days

0

0330

Ferris 5416876A

PLATE, BRAKE LEVER, SRSZ - BLK
(Superseded to 5416876AAFS)

$12.99

$

Usually ships in 2-12 days

0

0340

Ferris 84008450

MOUNT

$

$

Currently unavailable

0350

Ferris 5105574

ROD, LOWER BRAKE CONTROL, CZ
(Superseded to 5105574FS)

$9.49

$

Usually ships in 2-12 days

0

0360

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

0370

Ferris 5023323

CLEVIS, 5/16-24, STEEL, CLEAR ZINC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

0380

Ferris 5102773

BUSHING, .38ID X .47 OD X .38L, FL
(Superseded to 5102773FS)

$2.99

$

Usually ships in 2-12 days

0

0410

Ferris 5041930

SPACER, .38 X .50 X .27, CZ
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

0430

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

0450

Ferris 5025034

NUT, 3/8-16 HEX, YZ
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

0460

Ferris 5105603

SPACER, STEP, .328 X 1.00 X .625, CZ
(Superseded to 5105603FS)

$7.49

$

Usually ships in 2-12 days

0

0470

Ferris 5413575A

PLATE, BRAKE ARM, IS2100 - BLK
(Superseded to 5413575AYP)

$6.49

$

In Stock, only 1 left!

0

0480

Ferris 5025100

NUT, Hex, Side Lock, 3/8-16
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

0490

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

Usually ships in 2-12 days

0

0500

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

0510

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0520

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

0530

Ferris 5025213X7

PIN, CLEVIS, 5/16 X 1, PLATED
(Superseded to 84003641)

$2.99

$

Usually ships in 2-12 days

0

0540

Ferris 5025203X6

* PIN, COTTER, 1/8" X 3/4
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 2 left!

0

0550

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0560

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

0580

Ferris 5025639

RUE - 10 RETAINING PIN, .047"X5/16 SHAFT
(Superseded to 5025639FS)

$2.49

$

In Stock, only 3 left!

0

0590

Ferris 5025055X12

BOLT- 5/16-18 X 1-1/2 GD5 TFL
(Superseded to 5025055X12SM)

Note: (Refer to Note: **)

$3.99

$

In Stock, only 2 left!

0

0600

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

Note: (Refer to Note: **)

$3.49

$

Usually ships in 2-12 days

0
