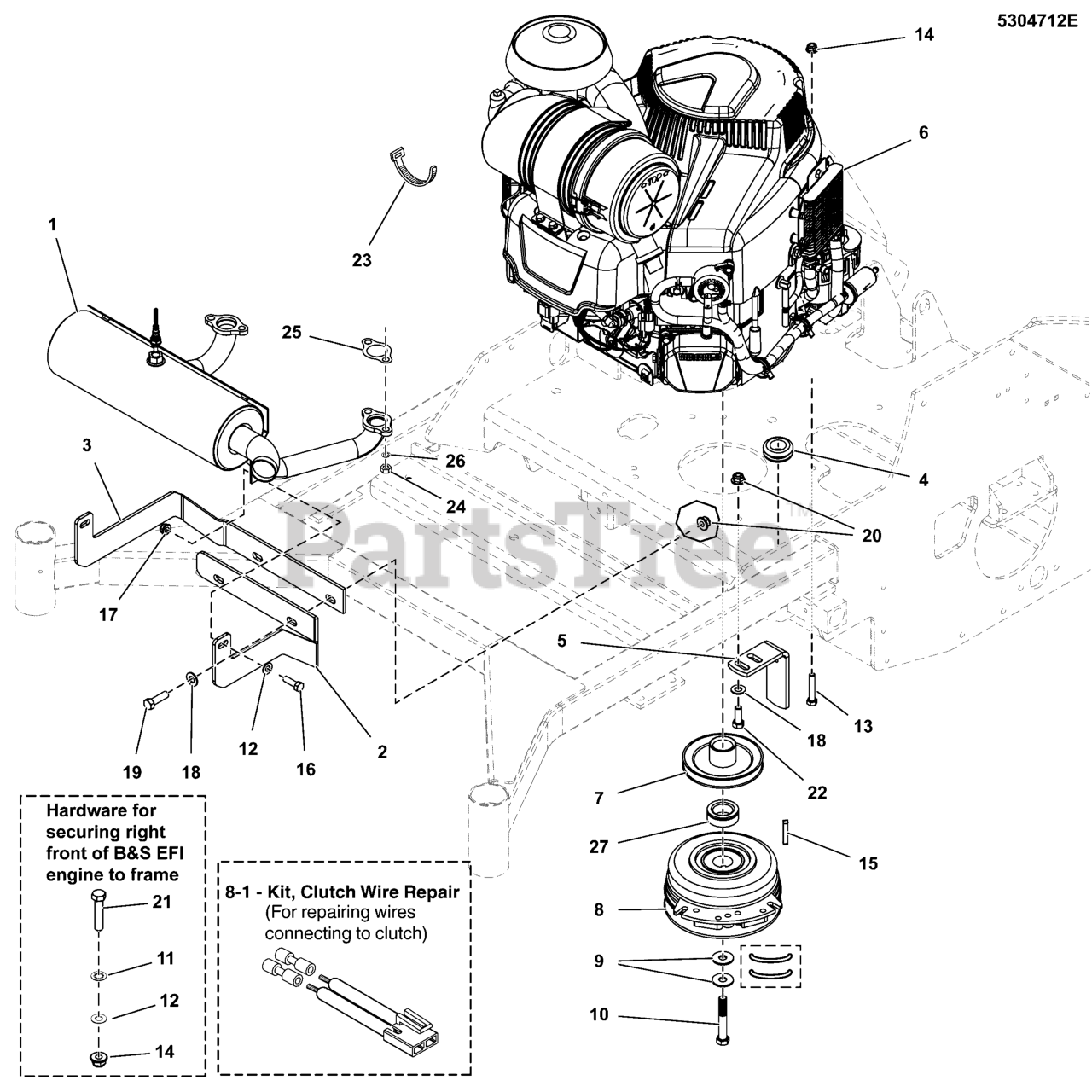

SRS Z2 (5902070) - Ferris SRS Z2 Series 60" Stand-On Mower, 28hp Briggs & Stratton Engine & PTO Group - Briggs & Stratton EFI (Remote Oil Tank) Parts Diagram

SRS Z2 Series 60" Stand-On Mower, 28hp Briggs & Stratton

Engine & PTO Group - Briggs & Stratton EFI (Remote Oil Tank) Parts Diagram

  • Title

1

Ferris 5104355

MUFFLER, 26/28, B&S VANG, EFI TWR/WALK
(Superseded to 5104355FS)

$310.99

$

Usually ships in 2-12 days

0

2

Ferris 5414167A

PLATE, EXHAUST BRACKET LH - BLK
(Superseded to 5414167AAFS)

$26.99

$

Usually ships in 2-12 days

0

3

Ferris 5414168A

PLATE, EXHAUST BRACKET RH - BLK
(Superseded to 5414168AAFS)

$26.99

$

Usually ships in 2-12 days

0

4

Ferris 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

5

Ferris 5404967A

ANCHOR, CLUTCH - BLK
(Superseded to 5404967AYP)

$32.99

$

Usually ships in 2-12 days

0

6

BRIGGS & STRATTON ENGINE, 49E877-0008-G1

Note: (Refer to Note: *)(S/N: 4001858852 and below)

$

$

Not available

6

BRIGGS & STRATTON ENGINE, 49E877-0021-G1

Note: (Refer to Note: *)(S/N: 4001858853 and above)

$

$

Not available

7

Ferris 5104553

PULLEY, CRANKSHAFT, 1.1255 ID X 4.50 OD
(Superseded to 5104553FS)

$53.99

$

In Stock, only 1 left!

0

8

Ferris 5105090

CLUTCH WARNER 200 FT-LB 1.13 X 6.323
(Superseded to 5105090YP)

$456.99

$

In Stock, only 3 left!

0

8-1

Ferris 5600575

KIT, CLUTCH WIRE REPAIR

$66.99

$

Usually ships in 2-12 days

0

9

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 4 left!

0

10

Ferris 5102865

BOLT, CRANKSHAFT, 7/16 X 2-3/4, PATCH, CZ
(Superseded to 5102865YP)

$5.49

$

In Stock, only 2 left!

0

11

Ferris 5025188

WASHER, 5/16" Internal Tooth Lock
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

12

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

13

Ferris 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8, PHOS
(Superseded to 5025025X14YP)

$4.49

$

Usually ships in 2-12 days

0

14

Ferris 5025616

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS
(Superseded to 5025616YP)

$3.99

$

In Stock, only 2 left!

0

15

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

16

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

17

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

18

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

20

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

21

Ferris 5025025X12

BOLT, 5/16-24 X 1-1/2, GD8, PHOS
(Superseded to 5025025X12YP)

$3.99

$

Usually ships in 2-12 days

0

22

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

23

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

$3.49

$

Usually ships in 2-12 days

0

24

Ferris 5025536

NUT, HEX, M8-1.25, CZ, GD 8.8
(Superseded to 5025536YP)

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 273485

GASKET, EXHAUST
(Superseded to 690970)

$4.99

$

In Stock, Qty 20+

0

26

Ferris 5023217

WASHER, Light Lock, 5/16
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5042928

SPACER, 1.13 X 1.75 X .63
(Superseded to 5042928FS)

$12.99

$

Usually ships in 2-12 days

0
