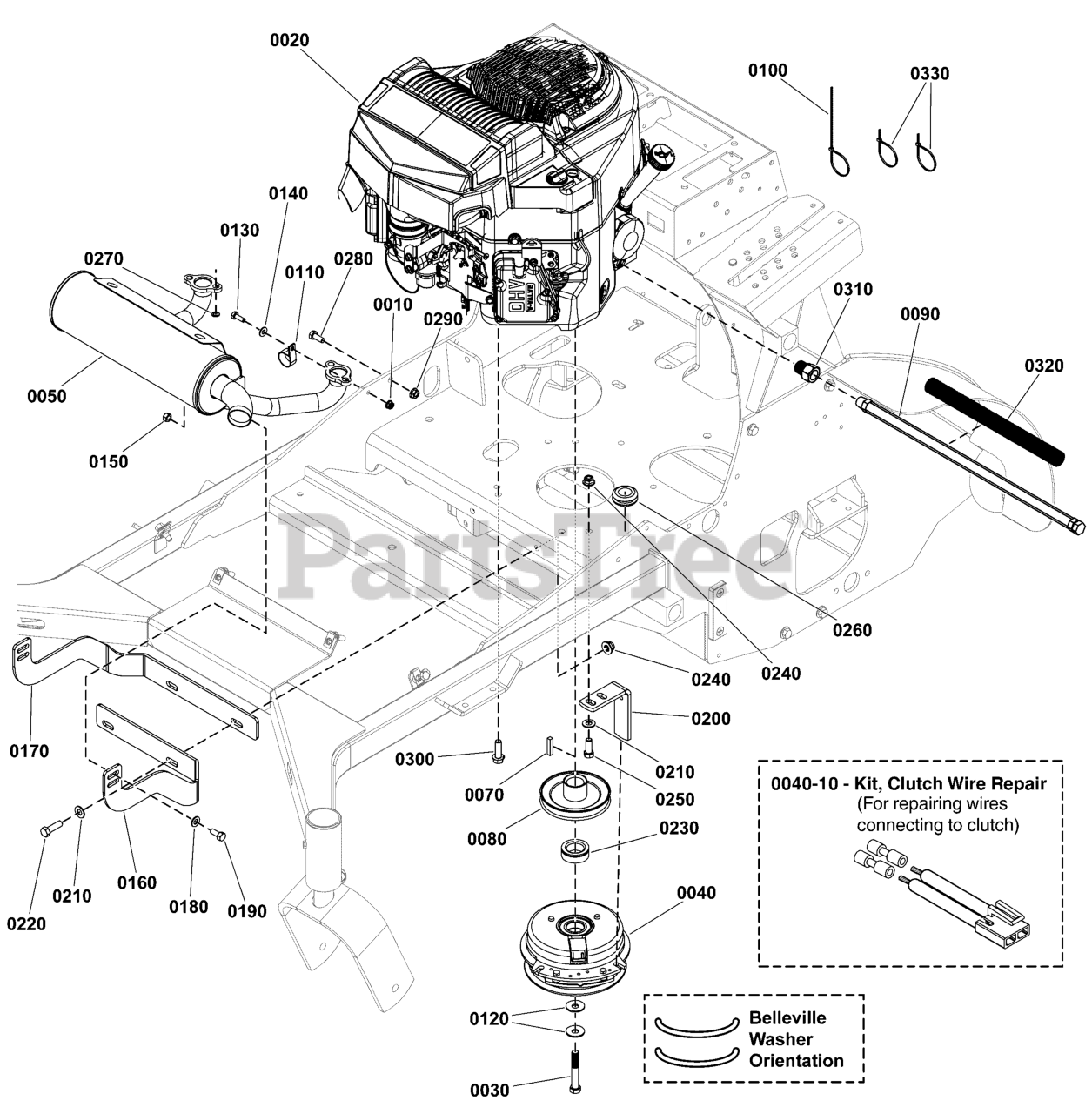

SRS Z2 (5902050) - Ferris SRS Z2 Series 52" Stand-On Mower, 24hp Kawasaki Engine and PTO Group - Kawasaki Parts Diagram

SRS Z2 Series 52" Stand-On Mower, 24hp Kawasaki

Engine and PTO Group - Kawasaki Parts Diagram

  • Title

0010

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0020

ENGINE, KAWASAKI, FT730V -AS00-S

Note: (Refer to Note: *)

$

$

Not available

0030

Ferris 5102865

BOLT, CRANKSHAFT, 7/16 X 2-3/4, PATCH, CZ
(Superseded to 5102865YP)

Note: (Torque crankshaft mounting bolts to 65 ft-lbs (88 Nm))

$5.49

$

In Stock, only 2 left!

0

0040

Ferris 5105090

CLUTCH WARNER 200 FT-LB 1.13 X 6.323
(Superseded to 5105090YP)

$456.99

$

In Stock, only 3 left!

0

0040-10

Ferris 5600575

KIT, CLUTCH WIRE REPAIR

$66.99

$

Usually ships in 2-12 days

0

0050

Ferris 5104163

MUFFLER, HORIZONTAL, KAWASAKI
(Superseded to 5104163FS)

$307.99

$

Usually ships in 2-12 days

0

0070

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

0080

Ferris 5104553

PULLEY, CRANKSHAFT, 1.1255 ID X 4.50 OD
(Superseded to 5104553FS)

$53.99

$

In Stock, only 1 left!

0

0090

Ferris 5102781

HOSE, OIL DRAIN
(Superseded to 5102781FS)

$28.99

$

Usually ships in 2-12 days

0

0100

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

$3.49

$

Usually ships in 2-12 days

0

0110

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

0120

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 4 left!

0

0130

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0140

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0150

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

0160

Ferris 5414167AA

PLATE, EXHAUST BRACKET LH - BLK
(Superseded to 5414167AAFS)

$26.99

$

Usually ships in 2-12 days

0

0170

Ferris 5414168AA

PLATE, EXHAUST BRACKET RH - BLK
(Superseded to 5414168AAFS)

$26.99

$

Usually ships in 2-12 days

0

0180

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0190

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

0200

Ferris 5404967AA

ANCHOR, CLUTCH - BLK
(Superseded to 5404967AYP)

$32.99

$

Usually ships in 2-12 days

0

0210

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0220

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

0230

Ferris 5042928

SPACER, 1.13 X 1.75 X .63
(Superseded to 5042928FS)

$12.99

$

In Stock, only 1 left!

0

0240

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0250

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

0260

Ferris 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

0270

Ferris 5023217

WASHER, Light Lock, 5/16
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

0280

Ferris 5025249

BOLT, M8-1.25 X 20 MM GD 8.8
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

0290

Ferris 5025355

NUT, M8-1.25 Hex Serrated Flange
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0

0300

Ferris 5025640

BOLT, 3/8-16X1-1/4 SF, GD8, PHOS, SER HD
(Superseded to 84003591)

Note: (Torque engine mounting bolts to 17 ft-lbs (23 Nm))

$3.49

$

In Stock, only 4 left!

0

0310

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

0320

Ferris 5050862X12

WIRE LOOM, 3/4 ID X 12 IN
(Superseded to 5050862X12SM)

$4.49

$

Usually ships in 2-12 days

0

0330

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0
