SRS Z2 (5901606) - Ferris SRS Z2 Series 61" Stand-On Mower, 28hp Briggs & Stratton Engine Remote Oil Tank, Hoses, & Mount Group Parts Diagram

SRS Z2 Series 61" Stand-On Mower, 28hp Briggs & Stratton

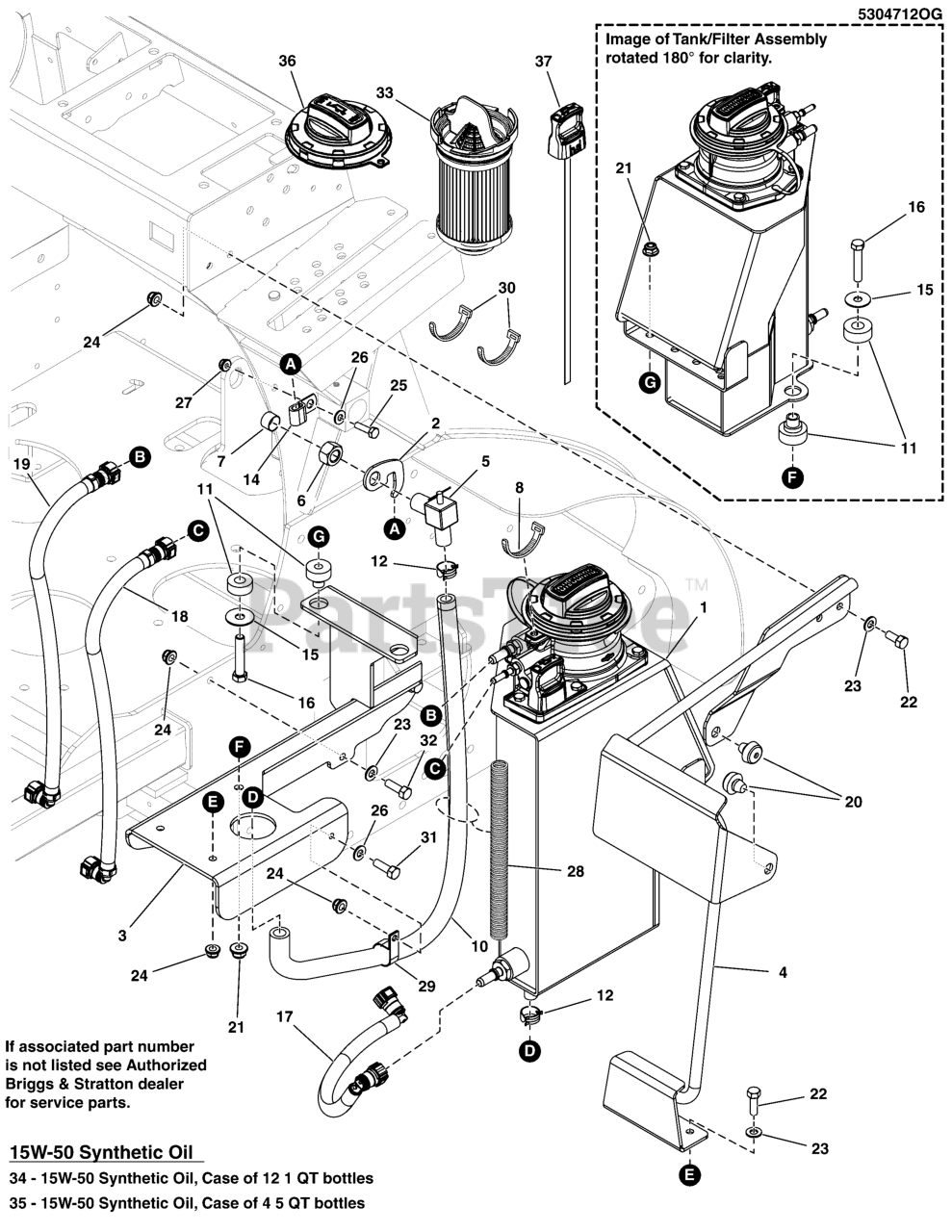

Engine Remote Oil Tank, Hoses, & Mount Group Parts Diagram

  • Title
1

Ferris 595945

TANK, Oil
(Superseded to 84006647)

Note: (Refer to Note: *)(S/N: 4001858852 and below)

$889.99

$

In Stock, only 1 left!

0

1

Ferris 84006647

TANK, OIL

Note: (Refer to Note: *)(S/N: 4001858853 and above)

$889.99

$

In Stock, only 1 left!

0

2

Ferris 5415914A

PLATE, DRAIN HOOK, OG - BLK
(Superseded to 5415914AAFS)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5416009A

WELD, TANK MOUNT, Z2 OG - BLK
(Superseded to 5416009AAFS)

$81.99

$

Usually ships in 2-12 days

0

4

Ferris 5416011A

WELD, TANK GUARD, Z2 - BLK
(Superseded to 5416011AAFS)

$103.99

$

Usually ships in 2-12 days

0

5

Ferris 5105177

VALVE, OIL DRAIN, M16X1.5 TO 1/2"
(Superseded to 84003076)

$45.99

$

Usually ships in 2-12 days

0

6

Ferris 5105318

NUT, HEX, M16-1.5, DAPCO 4071
(Superseded to 84003079)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5105317

OIL DRAIN CAP, OIL GUARD, DAPCO 4692
(Superseded to 84003078)

$9.49

$

Usually ships in 2-12 days

0

8

TIE, Cable, Yellow 7.6"

$

$

Not available

10

Ferris 5105494

HOSE, Formed, Oil Guard
(Superseded to 5105494FS)

$53.99

$

Usually ships in 2-12 days

0

11

Ferris 5023131

MOUNT, ISO, BOTTOM, RAD 5000Z-DIESEL
(Superseded to 84003075)

$27.99

$

In Stock, only 1 left!

0

12

Ferris 5021392

CLAMP, #6 HOSE, STAINLESS
(Superseded to 5021392SM)

$4.99

$

Usually ships in 2-12 days

0

14

Ferris 5025430

CLAMP, 5/16", DOUBLE, WIRE & TUBE
(Superseded to 5025430SM)

$2.99

$

Usually ships in 2-12 days

0

15

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

16

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

17

Ferris 84006654

HOSE, OIL SUPPLY

Note: (Refer to Note: *)(S/N: 4001858852 and below)

$75.99

$

Usually ships in 2-12 days

0

17

Ferris 84006653

HOSE, OIL SUPPLY

Note: (Refer to Note: *)(S/N: 4001858853 and above)

$56.99

$

Usually ships in 2-12 days

0

18

Ferris 595943

HOSE, Oil Vent

Note: (Refer to Note: *)

$60.99

$

Usually ships in 2-12 days

0

19

Ferris 84006597

HOSE, OIL SCAVENGE

Note: (Refer to Note: *)

$55.99

$

Usually ships in 2-12 days

0

20

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

21

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

22

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

23

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

24

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

25

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

26

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

27

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

28

Ferris 5100384X16

LOOM, CONVOLUTED SPLIT, 1" ID - 16" LONG

$

$

Currently unavailable

29

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

30

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

31

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

32

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

33

Ferris 84007094

FILTER, OIL

$33.99

$

In Stock, Qty 20+

0

34

Ferris 5105281

OIL, 15W-50, SYNTHETIC, CASE X 12- 1QT

$

$

Not available

35

Ferris 5105282

OIL, 15W-50, SYNTHETIC, CASE X 4- 5QT

$287.99

$

Usually ships in 2-12 days

0

36

Ferris 595931

CAP, Oil Fill

$29.99

$

Usually ships in 2-12 days

0

37

Ferris 595934

DIPSTICK
(Superseded to 595603)

$16.99

$

In Stock, only 2 left!

0
