SRS Z2 (5901540) - Ferris SRS Z2 Series 52" Stand-On Mower, 28hp Briggs & Stratton, CARB Fuel Tank & Mount, Fuel Supply, and Evap Canister Group - CAL Models Parts Diagram

SRS Z2 Series 52" Stand-On Mower, 28hp Briggs & Stratton, CARB

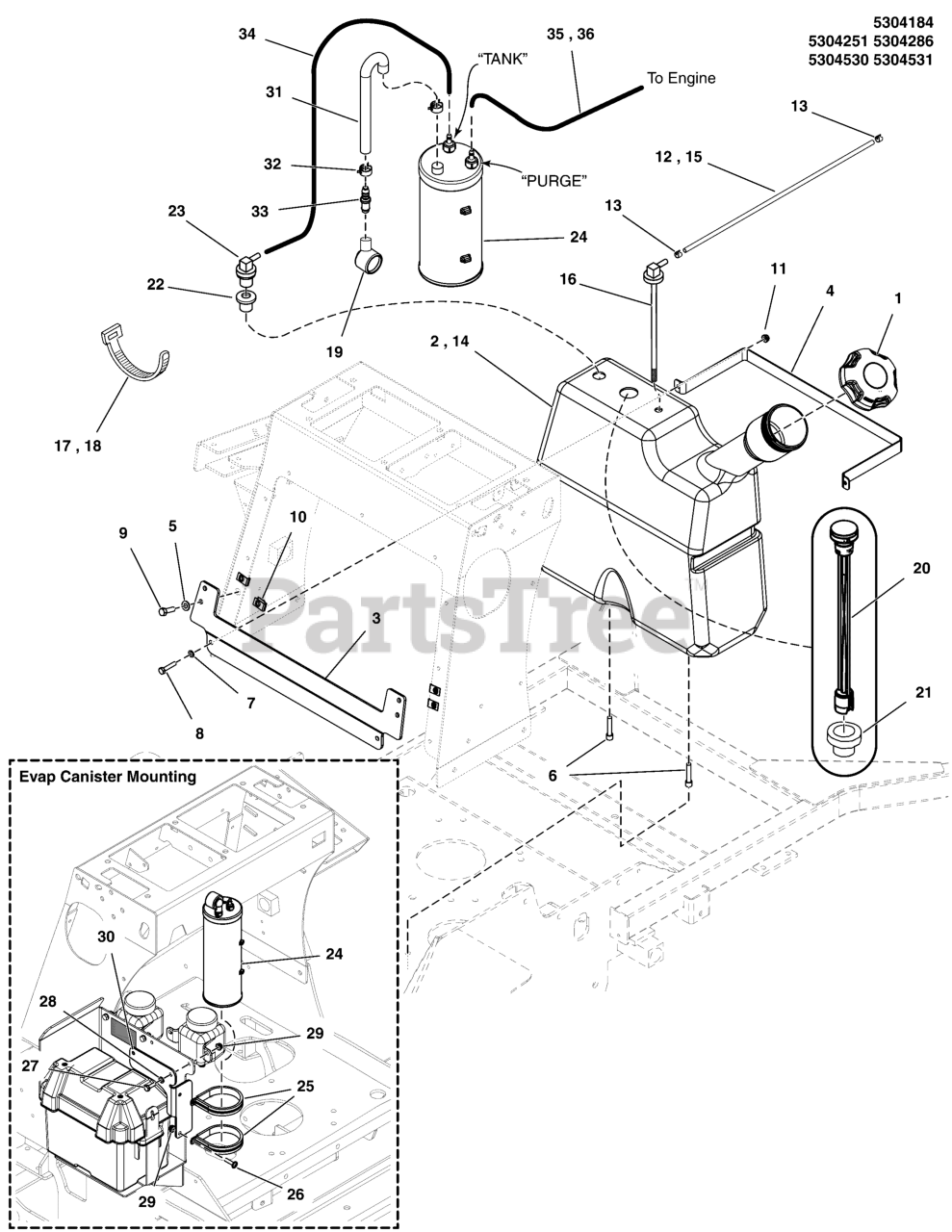

Fuel Tank & Mount, Fuel Supply, and Evap Canister Group - CAL Models Parts Diagram

  • Title

1

Ferris 5104686

FUEL CAP, 3.25", MANAGED VENT, 16"TETHER
(Superseded to 5104686FS)

$54.99

$

Usually ships in 2-12 days

0

2

Ferris 5104781

TANK, FUEL, STAND -ON, 7.75 GALLON
(Superseded to 5104781FS)

Note: (S/N: 2017278918 & Above)

$509.99

$

Usually ships in 2-12 days

0

3

Ferris 5414648A

PLATE, SRS Z2 TANK MOUNT, 7.75GAL - BLK

$34.99

$

Usually ships in 2-12 days

0

4

Ferris 5414649A

STRAP, FUEL TANK, STAND ON - BLK

$20.99

$

Usually ships in 2-12 days

0

5

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Ferris 84008512

SCREW, SOC HD, 5/16-18 X 1/2

$

$

Currently unavailable

7

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

8

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

9

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

10

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

11

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

12

Ferris 5050831X16

HOSE, 1/4" FUEL, 16.00"
(Superseded to 5050831X16SM)

Note: (Briggs & Stratton EFI Models)

$8.49

$

Usually ships in 2-12 days

0

13

Ferris 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

14

Ferris 5600899

KIT, LARGE CAPACITY FUEL TANK, SRS Z2

Note: (S/N: 2017278917 & Below)

$

$

Currently unavailable

15

Ferris 5050831X21

HOSE, 1/4" FUEL, 21.00"
(Superseded to 5050831X21FS)

Note: (Kawasaki Models)

$11.99

$

In Stock, only 1 left!

0

16

Ferris 5104783

PICKUP TUBE ASM, FUEL TANK, 16.50"

$27.99

$

Usually ships in 2-12 days

0

17

Ferris 5021030

TIE,SELF-LOCKING, 6"
(Superseded to 5021030SM)

Note: (Kawasaki Models)

$2.99

$

In Stock, only 3 left!

0

18

Ferris 5021030

TIE,SELF-LOCKING, 6"
(Superseded to 5021030SM)

Note: (Briggs & Stratton EFI Models)

$2.99

$

In Stock, only 3 left!

0

19

Ferris 1752800

DUST FILTER, CANISTER
(Superseded to 1752800YP)

$15.99

$

In Stock, only 1 left!

0

20

Ferris 5104785

GAUGE, FUEL LEVEL, 17.0"

$81.99

$

Usually ships in 2-12 days

0

21

Ferris 80089102

GROMMET, FUEL GAUGE
(Superseded to 84004692)

$4.99

$

Usually ships in 2-12 days

0

22

Ferris 209043

GROMMET
(Superseded to 799624)

$8.99

$

In Stock, Qty 15

0

23

Ferris 770046

REMOTE VENT ASSEMBLY

$16.99

$

In Stock, only 1 left!

0

24

Ferris 313037

CNSTR, CARB, 9 GAL
(Superseded to 313037YP)

$92.99

$

In Stock, only 1 left!

0

25

Ferris 5103055

CLAMP, 3" ID, CUSHIONED, STAINLESS
(Superseded to 5103055YP)

$7.99

$

Usually ships in 2-12 days

0

26

Ferris 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

28

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

29

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

30

Ferris 5415058A

PLATE, CARB CAN, SRSZ2 - BLK

$

$

Currently unavailable

31

Ferris 5103092

HOSE, FORMED, EVAP CANISTER
(Superseded to 5103092YP)

$33.99

$

In Stock, only 3 left!

0

32

Ferris 5023268

CLAMP, HOSE
(Superseded to 5023268SM)

$3.49

$

Usually ships in 2-12 days

0

33

Ferris 5103080

FITTING, STRAIGHT, 10MMX10MM, PLASTIC
(Superseded to 5103080YP)

$3.49

$

Usually ships in 2-12 days

0

34

Ferris 7700552X27

HOSE, VAPOR, 5MM ID, 27.00 LG

$

$

Currently unavailable

35

Ferris 7700552X20P5

HOSE, VAPOR, 5MM ID, 20.50 LG
(Superseded to 7700552X20P5YP)

Note: (Kawasaki Models)

$4.99

$

Usually ships in 2-12 days

0

36

Ferris 7700552X45

HOSE, VAPOR, 5MM ID, 45.00 LG
(Superseded to 7700552X45FS)

Note: (Briggs & Stratton EFI Models)

$11.99

$

Usually ships in 2-12 days

0
